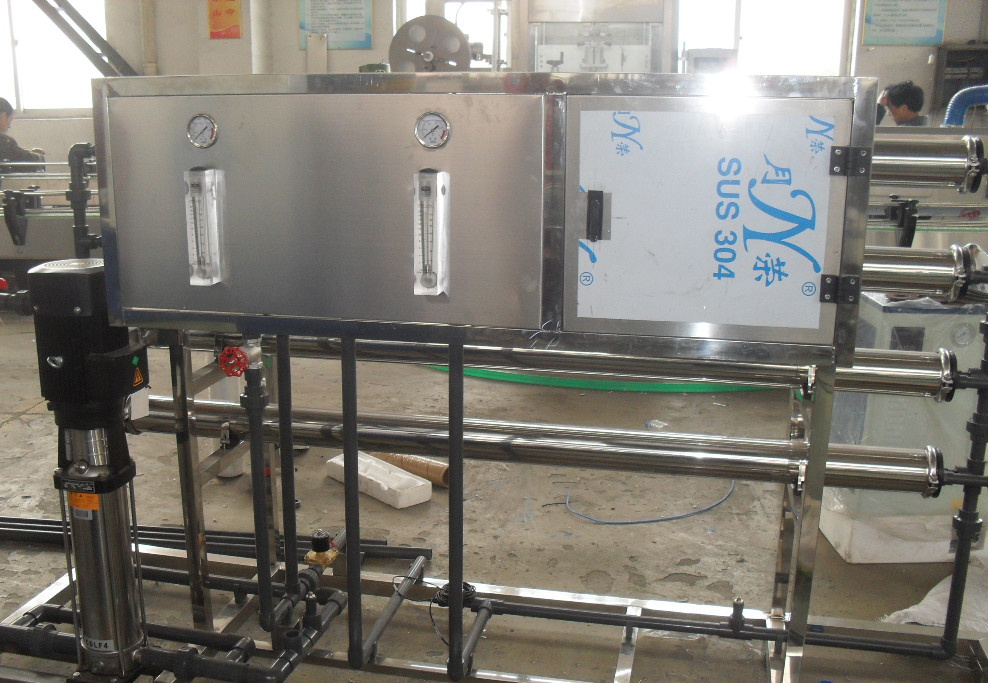

Food grade 2t pure water treatment machine
Technology instruction:
1, It adopts current advanced RO system, the output water no kernel, pure.
2, this system adopts American HAIDENENG company ESPA-8040, the rate of removed salt is 98%, recovery 50%-75%, and shapes the special character. The whole system can get rid of bacterial virus, heavy metallic irons. Radioactive elements, organic pollutant each is 99.99%, 95%, 99%, 95%, the quality of water sweet, clean. Also get rid of poison harmful material in source water, such as four chlorination carbons, benzenese, hydrocarbon, agrochemical, and lead, mercury, chrome...Etc other radioactive element all Be tested a limit the following.
System introduction
Raw water raw water pump Quartz sand filter Active Carbon filter water softener PP sediment filter 30M3/h RO system pure water
Alao we can provide the small bottle water filling machine (3 in 1)
Small bottle mineral water filling machinery ( 3 in 1)
Is used PLC controller automatic small water bottle 300ml-2L washing bottle, filling water and capping.
The water filling machine's specification
1) Capacity:
A) 300 - 1500mL bottles: 1000-2300 bottles/hour
B) 1.5L bottles: 1, 000 bottles/hour
2) Functions: Washes bottles, fills bottles with water, caps lids
3) Bottle specifications:
A) Diameter of mouth: 22 - 30mm
B) Diameter of bottle: 60 - 88mm
C) Height: 160 - 320mm
4) Washing system:
A) 12 washing positions
B) Motor power: 0.55kW
C) Size: 900 x 800 x 1, 600mm
D) Weight: 250kg
Main of technology:
The machine could auto wash, fill, cap, bottles are transferred on the conveyer.
When bottles come to the core machine, washing part(washing 18 Piece once),
Filling part(filling 18 PCS once), capping part(capping 6PCS once)work. At the same time,
Cap panel feed cap into the capping part
MORE QUESTIONS PLS CONTACT ME ANYTIME
|
Model |
CHT-3 |
CHT-6 |
CHT-10 |
CHT-15 |
|
Production capacity(m³ /h) |
2-3 |
4-6 |
8-10 |
10-15 |
|
Max filtering capacity of active carbon |
5*106 |
10*107 |
2*107 |
3*107 |
|
Operating pressure(Mpa) |
< 0.25 |
< 0.25 |
< 0.25 |
< 0.25 |
|
Inter water turbidity(mg/L) |
< 5mg/L |
< 5mg/L |
< 5mg/L |
< 5mg/L |
|
Appearance size(mm) |
Ø 450*700*2350 |
Ø 650*900*2500 |
Ø 1100*1000*2900 |
Ø 1500*1200*3100 |
|
Weight(kg) |
300 |
600 |
850 |
1200 |
