Home Generator Products Ffl-300kw/350rpm/AC400V Permanent Magnet Generator (PMG/PMA/Hydro)

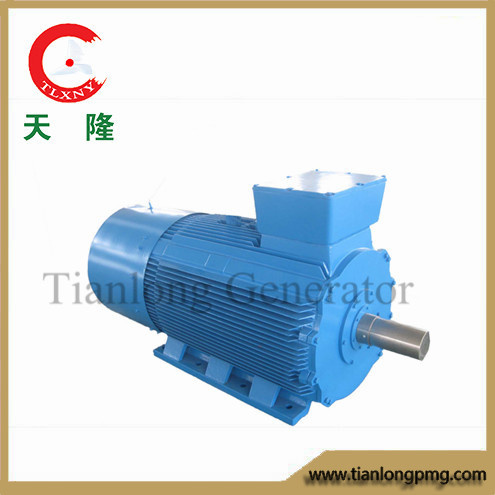

Ffl-300kw/350rpm/AC400V Permanent Magnet Generator (PMG/PMA/Hydro)

Ffl-300kw/350rpm/AC400V Permanent Magnet Generator (PMG/PMA/Hydro)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T

100MW Yearly Production PMG Manufacturer From Rare Earth Origin

About 80% world rare earth reserves was in Baotou,which provide us with abundant permanent material.We also have a strategic cooperation with the BGM to insure good quality and reasonable cost of PMG in mass production.
Tianlong Generator have invested 50 million RMB to set a new industrial base ,with a factory and a R&D center building covering 10000 area .The yearly PMG production will increase to 100MW,and Tianlong Generator will be the largest permanent magnet generator manufacturer in China small and medium wind turbine industry.

Professional Wind Turbine Generator Manufacturer

With the Tianlong Generator range of Permanent Magnet Generator PMG's for small wind turbines based on permanent magnet technology, you will have a different experience:
Low Cogging : Based on optimum pole slot configuration , The starting torque is 40% lower than  national Standard .and could be 1% of the rated torque .
High Effiency: Based on optimum winding design ,low current density makes less copper loss, we can offer an efficiency 10% higher than national standard and can be in excess of 95%.
Tianlong Generator offers a variety of possibilities of mechanical size, RPM, power rating etc,and The PMG can be operated with a wide range of output power.
Let us help you implementing our Permanent Magnet Generators in your small wind turbines.


Quality Guarantee

The stator and rotor of generator apply high grade cold rolling silicon sheet, with high intensity and characteristic of uneasily deformed; the stator windings are wound with 180 grade combing paintcoat series enamel-cover round copper wire, especially it is impregnated by the techniques of combing process of vacuum constant temperature and constant heat, it has elevated insulation grade .We apply high quality 40SH,42SH,40UH rare-earth NdFeB(Neodymium Iron Boron) Magnet to our generator. The fastness of magnet steel of rotor adopt inlaid type process, strong adhesives splicing ,furthermore epoxy resin encapsulating technology which increase stability and corrosion resistance of magnet. We choose professional completely-enclosed NSK,NTN,SKF,C&U bearings and nickle plated 40Cr steel shaft with quenching and tempering treatment,the outer frame  is Zinc plated  with anti-corrosion treatment.We believe high quality material and advanced craft is the firm guarantee of the high quality products.


                                                                                   Technical Details
Rated Power(KW):300
Rated Speed(RPM):350
Rated Torque(N*M):8802
Rated Voltage(V):AC690
Rated Current(A):251.03
Insulation Class:F
Efficiency(>%)93
PMG Collocation:Y Connection,Three Phase Three Wires, Alternator
Service Life:More Than 20 yearsMore Than 20 years
Working Environment-25ºC ——40 ºC
Speed Range0-420rpm
Mechanical Details
Mounting Means:Horizontal
Weight(Kg):3100
Start Torque(165
Material Details
Shaft Material40Cr
BearingC&U or for your order
Shell MaterialSteel
Winding Temperature Class150ºC
Permanent Magnet MaterialRare Earth NdFeB
Permanent Magnet Material Temperature Class150ºC
CoreHigh Grade Cold Rolling Silicon Sheet   50WW470
Protection GradeIP54

Prod Model: FFL-300KW/350rpm/AC400V
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Baotou Tianlong Permanent Magnet Generator Manufacturing Co., Ltd. is located in Baotou which is acclaimed as 'the home of rare earth and the city of steel on the grassland'. It is the professional corporation which engages in manufacturing rare earth permanent magnet generator, wind energy generating electricity equipment, solar energy generating electricity equipment and PV/wind hybrid generating electricity system, It is also the director corporation of Chinese Wind Energy Equipment Association (CWEEA) and the member of World Wind Energy Association(WEEA). Baotou Tianlong was set up in 1996 and successfully produced the first Chinese low speed 5KW direct-drive rare earth permanent magnet generator. Now we have developed a series of generators, more than 400 kinds, rotation speed from 50 rpm to 750 rpm with rated power from 50W to 500kW in types, includes horizontal shaft type, vertical shaft type and outer rotor type. Our products are very popular among our consumers. Our products have been sold to twenty-nine domestic provinces, autonomous regions cities and special administrative region including HongKong, Macao&Taiwan, and exported to more than forty countries in Europe, America, and southeast Asia circumference.
The R&D center for permanent magnet generator of our company, it is LED by the first-rate expert who enjoys the special allowance awarded by the State Department, the expert developed a special way of design. In the last 16 years, the company has developed more than 400 kinds low speed permanent magnet generators for hundreds of customers in wind power, hydropower, exercise equipment generation, magnetic energy generation and diesel generator set. We have also provided permanent magnet generator sample for demestic 50 universities including Tsinghua University, Peking University, Ocean University of China and many major research institutions such as State Grid Companies Nanrui Group Research Institute, Jiangsu State Grid Company Test Institute, and National key research projects(863)etc. TianLong now has become a permanent magnet generator producing enterprise with the largest capacity of single PMG, great variety of generators and the most widely coverage among medium-small wind power industry.
In 2010, we developed super efficient and high torque over 50kw permanent magnet synchronous motors. These products can be widely used in automotive industry, machine tool industry, the elevator industry, the oil industry and can replace the combination mode of speed reducer and electric motor. So it can achieve precise control, infinitive stage transmission and torque of permanent magnet motor.
In 2010, The company had come into the National Rare Earth High-Tech Industrial Development Zone, and Invested 60 million RMB to set a new factory and a research center that covers 14000 square area. The productive area will be 10000 square, and the advanced equipments & new production line will be imported to increase the yearly production to 100MW.
