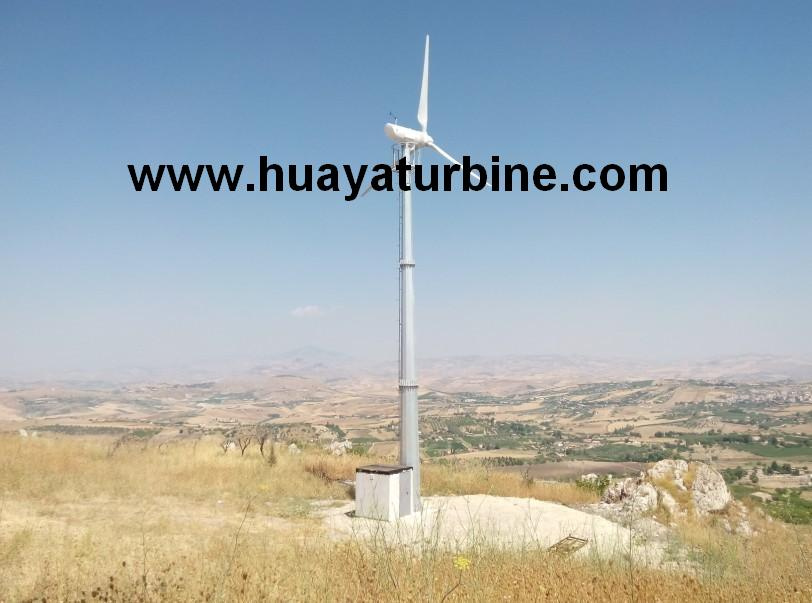

20kw free energy generator:
Model FD12-20KW
Rotor Diameter(m) 12
Blade Material Reinforced FPR
Blade Quantity 3
Rated Wind Speed (m/s) 9
Start-up Wind Speed (m/s) 3
Working Wind Speed (m/s) 3.0-35
Security Wind Speed (m/s) 50
Starting Torque (n/m) 13
Speed Adjustment Mode Pitch Controlled + Active Yawing
Stop Mode Feathering propeller, Yawing, Electromagnetic Brake
Generator Type Permanent Magnet Three Phase AC generator
Rated Voltage 240-500VDC
Rated Power 20KW
Max. Power 25KW
Rated RPM(R/Min. ) 140
Mainbody Weight(kg) 1500
Tower Weight 18m(kg) 3200
Rotor: Rotor efficiency can reach 42%, noise level is less than 65 dB, strict balance adjustment before leave factory.
Generator: Rotor driven directly, low RPM (rotating speed), permanent magnet, Overload rate 150%
Use NdFeB35SH Strong Magnetic materials
Excellent bearing, long-lasting grease, run 30, 000 hours without maintenance.
Ningjin huaya industry Co., Ltd. is specialized manufacture of small wind turbine generator.
Form the first 50W, 100W wind turbine to 300W-20kw wind turbine, we past 15 years. Now we have the steady off-grid working system, 1kw, 2kw, 3kw, 5kw, 10kw, 20kw on-grid working system. To provide the steady system is our aim.
Blades:
The blade form is chosen by wind tunnel test. The aerofoil with the highest wind speed utilization ratio is used. The wind energy transfer efficiency can reach 0.42.
Generator:
ND-fe-b permanent magnet. Packaged type tangential grinder magnetic circuit rotor; High magnetic flux density, small cubage, good manufacturing technics and high capability.
Adopt Sweden SKF bearing.
Close transmission slip ring, the cable will not enlace
Tower:
Tower with guy wires, tilting up tower, hydraulic tower, independence tower. It can be designed according to your request.
Now the wind turbine system is working in more than 30 countries. To provide the good, steady system is our aim.
For more products details, pls contract with us! We will provide you quickly and professional feedback.
