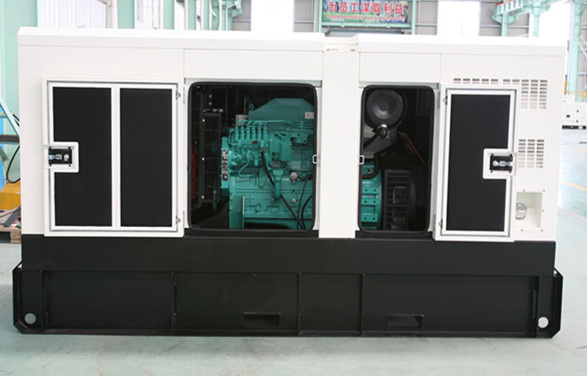

Fast Delivery CE Approved 250kw/313kVA Cummins Silent Generator (GDC313*S)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Fast delivery CE approved 250kw/313kVA Cummins Silent Generator (GDC313*S)
Diesel Generator Specifications |
Manufacturer: | Jiangsu Godlike Power Technology Co.,Ltd |
Model: | GDC250 |
Prime Power: | 250KW / 313KVA |
Standby Power: | 275KW / 345KVA |
Frequency: | 50HZ |
Voltage: | 400/230V |
Phase: | 3 Phase |
P.F(COS¢): | 0.8 |
Fuel: | Diesel |
Rated Current: | 1440A |
Start Method: | 24V DC Start Battery |
Accessory: | Battery, wire, exhaust pipe, muffler |
Altitude: | ≤1000m |
Engine Specifications |
Brand and Model: | Cummins NTA855-G1 |
Aspiration: | Turbocharged |
Cylinder Arrangement: | 8 in line |
Displacement: | 30.6L |
Bore and Stroke: | 160×190 mm |
Compression Ratio: | 13.6:1 |
Rated RPM: | 1500rpm |
Maximum Output Power: | 947KW |
Governor Type: | Electronic |
100% Load Fuel Consumption: | 214 g/Kw.h |
Total Lubrication Capacity: | 153.0L |
Total Coolant Capacity: | 143.0L |
Cooling System: | Forced water cooling cycle |
Alternator Specifications |
Manufacturer: | Stamford/GODLIKE |
Model: | UCI314/JDG314 |
Rated Capacity: | 313KVA |
Winding: | 100% Copper Wire |
Frequency: | 50HZ |
Speed: | 1500 RPM |
Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
Power Factor: | 0.8 |
Protection Grade: | IP23 |
Alternator Warranty: | 2 Year No Time Limited |
Exciter Type: | Brushless, self-exciting, with AVR |
Insulation Class, Temperature Rise: | H/H |
Voltage Regulation: | ≥±5% |
Control System Specifications |
Manufacturer: | DEEP SEA ELECTRONICS PLC (UK) |
Model: | DSE6020 |
Type: | AMF Automatic Operation |
Operation: | Automatic Start and Auto Mains (Utility) Failure Control |
Alarm Protect: | Engine pre-heat, Current monitoring, Comprehensive Shutdown, Charge Failure |
Size and Weight |
Open Type Overall Size: | 3370mm*1060mm*1810mm |
Weight: | 4300KG |
Soundproof Type Overall Size: | 4300mm*1430mm*2175mm |
Weight: | 4226KG |
CUMMINS configuration and technical data
50HZ, 3 Phase, 400/230V |
No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Cyl. | Disp. | Bore *Stroke | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | CUMMINS | GODLIKE | STAMFORD | (nos) | (L) | (mm) | (g/kw.h) |
1 | GDC20*S | 20 | 16 | 23 | 18 | 4B3.9-G1/G2 | JDG164D | PI 144D | 4 | 3.9 | 102*120 | 215 |
2 | GDC25*S | 25 | 20 | 28 | 22 | 4B3.9-G1/G2 | JDG184F | PI 144E | 4 | 3.9 | 102*120 | 215 |
3 | GDC30*S | 30 | 24 | 33 | 26 | 4BT3.9-G1/G2 | JDG184G | PI 144G | 4 | 3.9 | 102*120 | 215 |
4 | GDC40*S | 40 | 32 | 44 | 35 | 4BT3.9-G1/G2 | JDG184H | PI 144J | 4 | 3.9 | 102*120 | 215 |
5 | GDC43*S | 43 | 34 | 47 | 37 | 4BTA3.9-G2 | JDG224C | UCI224C | 4 | 3.9 | 102*120 | 215 |
6 | GDC50*S | 50 | 40 | 55 | 44 | 4BTA3.9-G2 | JDG224D | UCI224D | 4 | 3.9 | 102*120 | 215 |
7 | GDC57*S | 57 | 45 | 63 | 50 | 4BTA3.9-G2 | JDG224ES | UCI224E | 4 | 3.9 | 102*120 | 215 |
8 | GDC60*S | 60 | 48 | 66 | 53 | 4BTA3.9-G2 | JDG224E | UCI224E | 4 | 3.9 | 102*120 | 215 |
9 | GDC63*S | 63 | 50 | 69 | 55 | 6BT5.9-G2 | JDG224E | UCI224E | 6 | 5.9 | 102*120 | 215 |
10 | GDC73*S | 73 | 58 | 80 | 64 | 6BT5.9-G2 | JDG224F | UCI224F | 6 | 5.9 | 102*120 | 215 |
11 | GDC88*S | 88 | 70 | 96 | 77 | 6BT5.9-G2 | JDG224G | UCI224G | 6 | 5.9 | 102*120 | 215 |
12 | GDC93*S | 93 | 75 | 103 | 82 | 6BT5.9-G2 | JDG224H | UCI274C | 6 | 5.9 | 102*120 | 215 |
13 | GDC100*S | 100 | 80 | 110 | 88 | 6BT5.9-G1/G2 | JDG274C | UCI274C | 6 | 5.9 | 102*120 | 215 |
14 | GDC120*S | 120 | 96 | 132 | 106 | 6BTA5.9-G2 | JDG274DS | UCI274D | 6 | 5.9 | 102*120 | 215 |
15 | GDC135*S | 135 | 108 | 149 | 119 | 6BTAA5.9-G2 | JDG274ES | UCI274E | 6 | 5.9 | 102*120 | 215 |
16 | GDC138*S | 138 | 110 | 151 | 121 | 6CTA8.3-G2 | JDG274ES | UCI274E | 6 | 8.3 | 114*135 | 210 |
17 | GDC150*S | 150 | 120 | 165 | 132 | 6CTA8.3-G2 | JDG274E | UCI274E | 6 | 8.3 | 114*135 | 210 |
18 | GDC160*S | 160 | 128 | 176 | 141 | 6CTA8.3-G2 | JDG274F | UCI274F | 6 | 8.3 | 114*135 | 210 |
19 | GDC180*S | 180 | 144 | 198 | 158 | 6CTA8.3-G2 | JDG274G | UCI274G | 6 | 8.3 | 114*135 | 210 |
20 | GDC200*S | 200 | 160 | 220 | 176 | 6CTAA8.3-G2 | JDG274H | UCI274H | 6 | 8.3 | 114*135 | 210 |
21 | GDC225*S | 225 | 180 | 248 | 198 | 6LTAA8.9-G2 | JDG274J | UCD274J | 6 | 8.9 | 114*135 | 197 |
22 | GDC250*S | 250 | 200 | 275 | 220 | 6LTAA8.9-G2 | JDG274K | UCD274K | 6 | 8.9 | 114*135 | 197 |
23 | GDC250*S | 250 | 200 | 275 | 220 | NTA855-GA | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
24 | GDC250*S | 250 | 200 | 275 | 220 | MTA11-G2A | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
25 | GDC275*S | 275 | 220 | 303 | 242 | NTA855-G1A | JDG314DS | HCI444D | 6 | 10.8 | 125*147 | 188 |
26 | GDC300*S | 300 | 240 | 330 | 264 | NTA855-G1B | JDG314D | HCI444D | 6 | 10.8 | 125*147 | 188 |
27 | GDC313*S | 313 | 250 | 344 | 275 | NTA855-G1B | JDG314ESS | HCI444ES | 6 | 10.8 | 125*147 | 188 |
28 | GDC325*S | 325 | 260 | 358 | 286 | NTA855-G1B | JDG314ES | HCI444ES | 6 | 14.0 | 140*152 | 200.2 |
29 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G2A | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
30 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G4 | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
31 | GDC375*S | 375 | 300 | 413 | 330 | NTAA855-G7 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
32 | GDC375*S | 375 | 300 | 413 | 330 | KTA19-G2 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
33 | GDC400*S | 400 | 320 | 440 | 352 | NTAA855-G7A | JDG314F | HCI444F | 6 | 14.0 | 159*159 | 205.4 |
34 | GDC420*S | 420 | 336 | 462 | 370 | NTAA855-G7A | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
35 | GDC450*S | 450 | 360 | 495 | 396 | KTA19-G3 | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
36 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G3A | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
37 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G4 | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
38 | GDC550*S | 550 | 440 | 605 | 484 | KTAA19-G5 | JDG354ES | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
39 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G6 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
40 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G8 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
41 | GDC625*S | 625 | 500 | 688 | 550 | KTAA19-G6A | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
42 | GDC625*S | 625 | 500 | 688 | 550 | KT38-G | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
43 | GDC700*S | 700 | 560 | 770 | 616 | KTA38-GA | JDG354G | HCI544F-S | 12 | 37.8 | 159*159 | 213 |
44 | GDC750*S | 750 | 600 | 825 | 660 | KTA38-G2 | JDG404B | LVI634B | 12 | 37.8 | 159*159 | 209 |
45 | GDC800*S | 800 | 640 | 880 | 704 | KTA38-G2B | JDG404C | LVI634C | 12 | 37.8 | 159*159 | 196 |
46 | GDC900*S | 900 | 720 | 990 | 792 | KTA38-G2A | JDG404D | LVI634D | 12 | 37.8 | 159*159 | 196 |
47 | GDC1000*S | 1000 | 800 | 1100 | 880 | KTA38-G4 | JDG404E | HCI 634G | 12 | 37.8 | 159*159 | 198 |
48 | GDC1125*S | 1125 | 900 | 1238 | 990 | KTA38-G9 | JDG404F | HCI 634G | 12 | 37.8 | 159*159 | 198 |
49 | GDC1250*S | 1250 | 1000 | 1375 | 1100 | KTA50-G3 | JDG404G | HCI 634J | 12 | 37.8 | 159*159 | 213 |
50 | GDC1375*S | 1375 | 1100 | 1513 | 1210 | KTA50-G8 | HCI 634J | HCI 634K | 12 | 37.8 | 159*159 | 213 |
51 | GDC1500*S | 1500 | 1200 | 1650 | 1320 | KTA50-GS8 | LVI 634G | LVI 634G | 12 | 37.8 | 159*159 | 213 |
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Prod Model: |
GDC313*S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wire: |
100% Pure Copper Wire |
Engine: |
Cummins Brand, Perkins, Doosan, Deutz Is Optional |
Alternator: |
Stamford, Marathon, Engga, Leroy Somer |
Material: |
100% Famous Material |
Test Load: |
25%, 50%, 75%, 100%, 110% |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Wind Cooling |
Output Type: |
AC Three Phase |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
