Faraday FD6 permanet magneto alternating current standby/backup alternator/generator
Trustworthy 100% Copper Wires Synchronous AC Alternator
Specification
Model series: FD6 series Brushless synchronous AC alternator
Range of power: From 572kw to 1000kw, 190-690V
Frequency: 50/60Hz Low frequency.
Usage: Make Electrical
Phase: Three Phase
Certificate: Has passed CE, ISO9001: 2008.
Export Markets: Global
Insulation class: H
Warranty period:
Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.
Accordant Standard
GB755 National Standard for Rotating Electrical Machine
IEC60034 (International Electrotechnical Commission)
BS5000, VDE0530, CSAC22.2-100 International Standard.
Application Area:
Faraday alternators fit all different brands of engines, are extensively used as prime or standby power in various applications, such as
General industry, Mining, Military, Oil-field, Construction, Telecommunication, Hospital, Engineering Machinery, Building construction, CHP, Marine and other harsh environment applications etc.
Raw material:
1. Copper wire has passed UL certified class 200
2. PMG and VPI are optional.
3. Insulation paper is Tyvek (Dupont paper).
4. Epoxy Resin from ALTANA in Germany
5. Low iron-loss silicon steel is BS470 from Shanghai BAOSTEEL GROUP
Product Description:

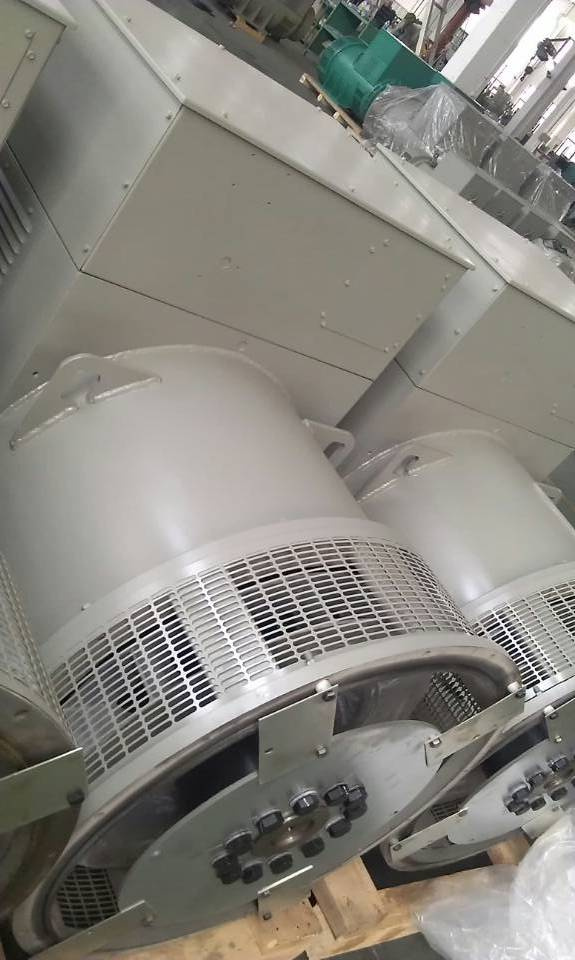

FD6 brushless AC alternator, the range of power from 600kw to 1000kw.
It includes FD6AS, FD6A, FD6B, FD6C, FD6D, FD6E.
3 phase, 4 pole, 50Hz/60Hz, 1500rpm/1800rpm, 190-690V
Standard Feature of Product
1: Comply with the most common standard in terms of GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100
2. With high-efficiency single-direction ratated fan
3: Single or double bearings are available, options for all kinds of adaptors and disc plates
4: Standard "H" insulation class
5: Convenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts
6: Standard sealed maintenance-free bearings
7: Standard IP23 protection, optional severe environment protection
8: Standard PMG in excitation system
Note:
*The generators have been designed for use in a maximum ambient temperature of 40degree and
Altitude less than 1000m above sea level
*All generators are 4-pole ones
Electric Features:
1. Voltage accuracy is ± 1% in static condition with any power factor, with optional PMG and MX321 AVR, voltage accuracy will be ± 0.5%.
2.2/3 pitch winding effectively eliminate harmonic waves, best for non-linear load
3. Faraday alternators can function in parallel among themselves.
4. Radio interference suppression
5. High accuracy
Options:
1. Winding RTD and bearing RTD
2. Winding protection thermistor and relay
3. Anti-condensation heater
4. Air filter
5. Droop CT
| Item | FD6 Three-phase Industry Alternators Power |
| | 50Hz(1500Rpm) | 60Hz(1800Rpm) |
| Voltage(V) | Class H(125K) | Class H(125K) |
| Star-Series | 380 | 400 | 415 | 440 | 460 | 480 |
| Star-Parallet | 190 | 200 | 208 | 220 | 230 | 240 |
| Delta-series | 220 | 230 | 240 | 254 | 266 | 277 |
| FD6AS-4 | Rated Capacity(kva) | 750 | 750 | 750 | 900 | 900 | 900 |
| Rated Power(kw) | 600 | 600 | 600 | 720 | 720 | 720 |
| Efficiency(%) | 93.2 | 93.3 | 93.5 | 93 | 93.1 | 93.4 |
| FD6A-4 | Rated Capacity(kva) | 800 | 800 | 800 | 963 | 963 | 963 |
| Rated Power(kw) | 640 | 640 | 640 | 770 | 770 | 770 |
| Efficiency(%) | 93.6 | 93.6 | 93.8 | 93.4 | 93.5 | 93.7 |
|
|
|
|
|
|
|
|
| FD6B-4 | Rated Capacity(kva) | 912 | 912 | 912 | 1088 | 1088 | 1088 |
| Rated Power (kw) | 730 | 730 | 730 | 870 | 870 | 870 |
| Efficiency (%) | 93.5 | 93.5 | 93.7 | 93.3 | 93.4 | 93.6 |
|
|
|
|
|
|
|
|
| FD6C-4 | Rated Capacity(kva) | 1025 | 1025 | 1025 | 1150 | 1150 | 1150 |
| Rated Power (kw) | 820 | 820 | 820 | 920 | 920 | 920 |
| Efficiency (%) | 94.2 | 94.2 | 94.4 | 94.1 | 94.2 | 94.3 |
|
|
|
|
|
|
|
|
| FD6D-4 | Rated Capacity(kva) | 1138 | 1138 | 1138 | 1275 | 1275 | 1275 |
| Rated Power (kw) | 910 | 940 | 910 | 1020 | 1020 | 1020 |
| Efficiency (%) | 94.6 | 94.7 | 94.8 | 94.6 | 94.7 | 94.8 |
| FD6E-4 | Rated Capacity(kva) | 1250 | 1250 | 1250 | 1500 | 1500 | 1500 |
| Rated Power (kw) | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 |
| Efficiency (%) | 94.8 | 94.9 | 95 | 94.9 | 94.9 | 95 |
