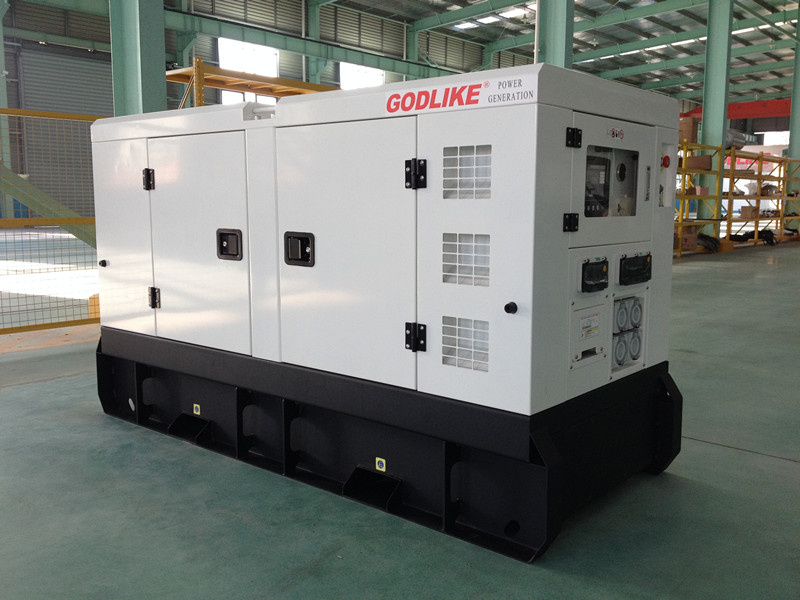

Famous Supplier Low Noise Soundproof Cummins 4bt Generator (GDC40*S)

Name: Famous Supplier Low Noise Soundproof Cummins 4bt Generator (GDC40*S)
Brand: aboutgenerator.com
SKU: 749852235
Availability: InStock
Rating: 4.5 (46 reviews)

Price:	US $ 6000/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Jiangsu GodLike Power Technology Co., Ltd.

Showroom Product Company Profile

Famous Supplier low Noise Soundproof Cummins 4bt Generator (GDC40*S)

Generator Set:
Generator Model: GDC40*S
Prime Power(KW): 40KW/50KVA
Rated Voltage(V): 400/220V
Frequency(Hz): 50Hz
Power Factor: 0.8(lagging)
Rated Current (A): 144A
Dimension (L× W× H) (mm): 2400*800*1600mm
Genset weight (KG): 1150KG
Diesel Engine:
Brand: Cummins
Type: 4BTA3..9-G1
Power(KW): 50KW
Number of Cylinders: 4
Rotating Speed: 1500RPM
Aspiration: Turbocharged after water-cooled
Bore× Stroke(mm): 105*120mm
Displacement(L): 6.23L
Compression Ratio: 15.5: 1
Speed Governor: Electrical
Cooling System: Water-cooled
Fuel Consumption at 100% Load: ≤ 208g/kwh
Starting Method: 24V Electrical starting

Alternator:
Brand: copy Stamford Brushless
Model: JDG224D
Rated Voltage(V): 120V-690V
Rated Volumn(kVA): 100kVA
Rated Power(KW): 40KW
Connecting Type: 3hase and 4 Wires
Frequency: 50/ 60Hz 1500RPM/1800RPM
Number of Bearing: Single/Double
Protection Grade: IP23/IP44
Altitude: Within the limits of 1000m, temperature of 40º C or OEM
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class: H/F
Telephone Influence Factor (TIF): 50
THF: <2%
Voltage Regulation, Steady State: ≤ ± 0.5%
Transient State Voltage: ≤ -15%~+20%

Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idleload, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.

Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.

Control System:
Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.

Generator set		Genset Model	GDC40*S
		Rating Power (KW/KVA)	40/50
		Standby Power(KW/KVA)	45/56
		Rating Ammeter(A)	72
Diesel engine	General data	Engine model	4BTA3.9-G2
		Prime Power(KW/KVA)	50/62.5
		Standby Power(KW/KVA)	55/68.75
		number of Cylinder & Configuration	4 cylinders in line
		Bore X Stroke (mm)	102X120
		Displacement(l)	3.9
		Compression Ratio	16.5:1
		Governor type	Electronic governor
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	14
		Max. Exhaust Gas Temperature(C)	502
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbocharged & After cooled
		Max. intake depression(KPA)	6
		Combustion air Volume(m³/min)	3.5
	Fuel system	Rating Fuel Consumption(l/h)	12
	Fuel system	75% full Fuel Consumption(l/h)	12.4
	Lubrication system	Total oil capacity(l)	9
		Max permissible oil temp(C)	121
		Oil pressure at rated rpm(KPA)	350
	Cooling system	Total Coolant capacity(l)	18
		Max. temperature of coolant(C)	96
		Fan cooling air flow(m³/min)	125
Alternator		Alternator model	JDG224D
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	40/50
		Eff.%	87.4%
		Power Factor	0.8
		Exciting type	Brushless self-exciter, AVR
		Voltage regulation	±1%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	2X100AH 12V
Dimension		Generator set dimension (LXWXH)	1850X830X1300
Weight		Generator set Net Weight (kg)	1100

CUMMINS configuration and technical data

50HZ, 3 Phase, 400/230V
No.	GENSET Model	OUTPUT POWER 1500RPM 50HZ				Engine Model	Alternator Model		Cyl.	Disp.	Bore *Stroke	Fuel Cons.
No.	GENSET Model	Prime KVA	Prime KW	Standby KVA	standby KW	CUMMINS	GODLIKE	STAMFORD	(nos)	(L)	(mm)	(g/kw.h)
1	GDC20*S	20	16	23	18	4B3.9-G1/G2	JDG164D	PI 144D	4	3.9	102*120	215
2	GDC25*S	25	20	28	22	4B3.9-G1/G2	JDG184F	PI 144E	4	3.9	102*120	215
3	GDC30*S	30	24	33	26	4BT3.9-G1/G2	JDG184G	PI 144G	4	3.9	102*120	215
4	GDC40*S	40	32	44	35	4BT3.9-G1/G2	JDG184H	PI 144J	4	3.9	102*120	215
5	GDC43*S	43	34	47	37	4BTA3.9-G2	JDG224C	UCI224C	4	3.9	102*120	215
6	GDC50*S	50	40	55	44	4BTA3.9-G2	JDG224D	UCI224D	4	3.9	102*120	215
7	GDC57*S	57	45	63	50	4BTA3.9-G2	JDG224ES	UCI224E	4	3.9	102*120	215
8	GDC60*S	60	48	66	53	4BTA3.9-G2	JDG224E	UCI224E	4	3.9	102*120	215
9	GDC63*S	63	50	69	55	6BT5.9-G2	JDG224E	UCI224E	6	5.9	102*120	215
10	GDC73*S	73	58	80	64	6BT5.9-G2	JDG224F	UCI224F	6	5.9	102*120	215
11	GDC88*S	88	70	96	77	6BT5.9-G2	JDG224G	UCI224G	6	5.9	102*120	215
12	GDC93*S	93	75	103	82	6BT5.9-G2	JDG224H	UCI274C	6	5.9	102*120	215
13	GDC100*S	100	80	110	88	6BT5.9-G1/G2	JDG274C	UCI274C	6	5.9	102*120	215
14	GDC120*S	120	96	132	106	6BTA5.9-G2	JDG274DS	UCI274D	6	5.9	102*120	215
15	GDC135*S	135	108	149	119	6BTAA5.9-G2	JDG274ES	UCI274E	6	5.9	102*120	215
16	GDC138*S	138	110	151	121	6CTA8.3-G2	JDG274ES	UCI274E	6	8.3	114*135	210
17	GDC150*S	150	120	165	132	6CTA8.3-G2	JDG274E	UCI274E	6	8.3	114*135	210
18	GDC160*S	160	128	176	141	6CTA8.3-G2	JDG274F	UCI274F	6	8.3	114*135	210
19	GDC180*S	180	144	198	158	6CTA8.3-G2	JDG274G	UCI274G	6	8.3	114*135	210
20	GDC200*S	200	160	220	176	6CTAA8.3-G2	JDG274H	UCI274H	6	8.3	114*135	210
21	GDC225*S	225	180	248	198	6LTAA8.9-G2	JDG274J	UCD274J	6	8.9	114*135	197
22	GDC250*S	250	200	275	220	6LTAA8.9-G2	JDG274K	UCD274K	6	8.9	114*135	197
23	GDC250*S	250	200	275	220	NTA855-GA	JDG274K	UCD274K	6	10.8	125*147	200
24	GDC250*S	250	200	275	220	MTA11-G2A	JDG274K	UCD274K	6	10.8	125*147	200
25	GDC275*S	275	220	303	242	NTA855-G1A	JDG314DS	HCI444D	6	10.8	125*147	188
26	GDC300*S	300	240	330	264	NTA855-G1B	JDG314D	HCI444D	6	10.8	125*147	188
27	GDC313*S	313	250	344	275	NTA855-G1B	JDG314ESS	HCI444ES	6	10.8	125*147	188
28	GDC325*S	325	260	358	286	NTA855-G1B	JDG314ES	HCI444ES	6	14.0	140*152	200.2
29	GDC350*S	350	280	385	308	NTA855-G2A	JDG314E	HCI444E	6	14.0	140*152	200.2
30	GDC350*S	350	280	385	308	NTA855-G4	JDG314E	HCI444E	6	14.0	140*152	200.2
31	GDC375*S	375	300	413	330	NTAA855-G7	JDG314FS	HCI444FS	6	14.0	140*152	205.4
32	GDC375*S	375	300	413	330	KTA19-G2	JDG314FS	HCI444FS	6	14.0	140*152	205.4
33	GDC400*S	400	320	440	352	NTAA855-G7A	JDG314F	HCI444F	6	14.0	159*159	205.4
34	GDC420*S	420	336	462	370	NTAA855-G7A	JDG354C	HCI544C	6	18.9	159*159	200.7
35	GDC450*S	450	360	495	396	KTA19-G3	JDG354C	HCI544C	6	18.9	159*159	200.7
36	GDC500*S	500	400	550	440	KTA19-G3A	JDG354D	HCI544D	6	18.9	159*159	200.5
37	GDC500*S	500	400	550	440	KTA19-G4	JDG354D	HCI544D	6	18.9	159*159	200.5
38	GDC550*S	550	440	605	484	KTAA19-G5	JDG354ES	HCI544D	6	18.9	159*159	200.5
39	GDC600*S	600	480	660	528	KTAA19-G6	JDG354E	HCI544E	6	18.9	159*159	208
40	GDC600*S	600	480	660	528	KTAA19-G8	JDG354E	HCI544E	6	18.9	159*159	208
41	GDC625*S	625	500	688	550	KTAA19-G6A	JDG354FS	HCI544F-S	6	18.9	159*159	202
42	GDC625*S	625	500	688	550	KT38-G	JDG354FS	HCI544F-S	6	18.9	159*159	202
43	GDC700*S	700	560	770	616	KTA38-GA	JDG354G	HCI544F-S	12	37.8	159*159	213
44	GDC750*S	750	600	825	660	KTA38-G2	JDG404B	LVI634B	12	37.8	159*159	209
45	GDC800*S	800	640	880	704	KTA38-G2B	JDG404C	LVI634C	12	37.8	159*159	196
46	GDC900*S	900	720	990	792	KTA38-G2A	JDG404D	LVI634D	12	37.8	159*159	196
47	GDC1000*S	1000	800	1100	880	KTA38-G4	JDG404E	HCI 634G	12	37.8	159*159	198
48	GDC1125*S	1125	900	1238	990	KTA38-G9	JDG404F	HCI 634G	12	37.8	159*159	198
49	GDC1250*S	1250	1000	1375	1100	KTA50-G3	JDG404G	HCI 634J	12	37.8	159*159	213
50	GDC1375*S	1375	1100	1513	1210	KTA50-G8	HCI 634J	HCI 634K	12	37.8	159*159	213
51	GDC1500*S	1500	1200	1650	1320	KTA50-GS8	LVI 634G	LVI 634G	12	37.8	159*159	213

Contact: Ms Vicki Yuan
Tel: 86 514 80915716

Prod Model:	GDC40*S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specialize:	100% Famous Material
Engine:	Cummins Brand, Perkins, Mtu, Deutz Is Optional
IP:	23
Alternator:	Stamford, Marathon, Engga, Kaijieli, Godlike
Test Load:	25%, 50%, 75%, 100%, 110%
Voltage Range:	110V-690V
Certificate:	CE, ISO etc
Frequency:	50Hz/60Hz Is Optional
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.

Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.

GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.

GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to GODLIKE.
