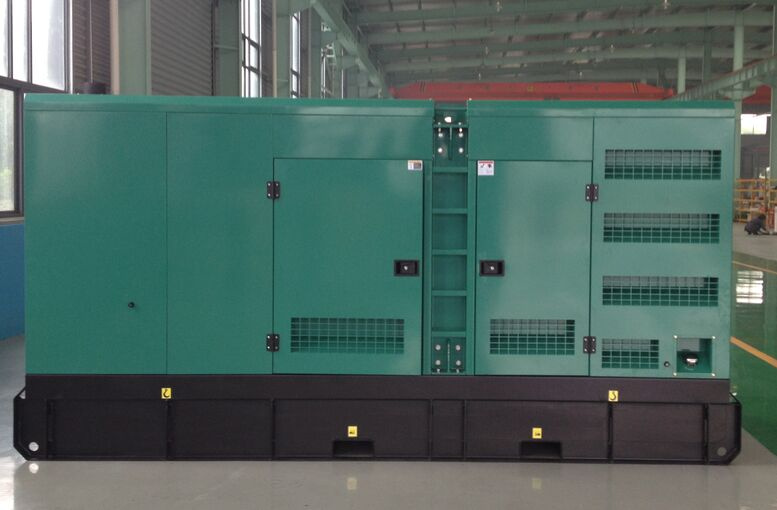

Famous supplier good price volvo diesel generator 500kva (GDV500*S)
Standard Silent Type Gensets
Specifications
1. noise performance is conforming to international standard 65-75dBA at 1m distance.
2. 3C good ventilation system and heat radiation handling can protect gensets working in any ambient temperature all the time.
3. base tank designed can assure gensets running continuously about 8-10hours.
4. newly developed noise-absorbing material adopted, and anti-damping between base fram and gensets body can further reduce noise.
5. with design of 3 doors and 1 observation windows.
6.Excellent engines and alternators featured with strong power,high torque,quick start,easy maintenance and operation.
7.Compact structure,small size,and longer service life.
8.The canopies are made of high quality steel and powder coated.The paint is highly endurable against erosion and scratch,and strongly rustproof.
9.The control panel,service doors and canopy board adopt waterproof design and effectively stop rain and dust intrusion.
10.All movable devices are fixed firmly,and therefore help reduce vibration.
1.Gen-set |
The model of the unit: | GDV500*S |
Power: | 400KW/500KVA |
Rated voltage: | 400V/230V |
Rated current: | 729A (adjustable) |
Rated frequency: | 50Hz/60Hz |
The factor of rated power | COS=0.8(lag) |
The regulating rate of steady voltage: | ≤±0.5% |
The regulating rate of instantaneous voltage: | ≤-10%/ +15% |
The time of steady voltage: | ≤1.5sec |
The waving rate of voltage: | ≤0.5% |
The regulating rate of steady frequency: | ≤3% |
The regulating rate of instantaneous frequency: | ≤±5% |
The time of steady frequency: | 3sec |
The waving rate of frequency: | ≤0.25% |
The waste of fuel with full load: | 198g/kw/h |
size(mm): | 3300*1150*1870 |
weight: | 3100KG |
2.Engine |
Brand: | VOLVO |
Model: | TAD1641GE |
Type: | four strokes, waste gas turbine boost,direct spurting type |
Cooling way: | water cooling |
With Type: | Inline type |
Bore *Trip : | 144mm*165mm |
Displacement | 16.12 |
Lubricating oil capacity: | 48L |
Cylinder: | 6cylinders |
Rotating speed: | 1500r/min or 1800r/min |
The regulation of rotating speed: | E-Speed |
Starting way: | DC24V starting with electricity |
3.Alternator |
Brand: | ComAp;Stamford;Marathon |
Type: | brushless (AVR automatic voltage regulating) |
The connecting way of the phase: | three phases four lines |
Insulation degree: | H degree |
Grading Protection: | IP23 |
VOLVO configuration and technical data
50HZ, 3 Phase, 400/230V |
No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Weight | Dimensions (L*W*H, mm) | Cyl. | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | VOLVO | GODLIKE | STAMFORD | KGS | Silent type | (nos) | (lir/hr) |
1 | GDV85*S | 85 | 68 | 94 | 75 | TD520GE | JDG184E | BCI184E | 800 | 2700*1000*1600 | 4L | 16 |
2 | GDV100*S | 100 | 80 | 110 | 88 | TAD531GE | JDG184F | BCI184F | 800 | 3200*1150*2000 | 4L | 20.7 |
3 | GDV130*S | 130 | 104 | 143 | 114 | TAD532GE | JDG184G | BCI184G | 806 | 3200*1150*2000 | 4L | 26.4 |
4 | GDV150*S | 150 | 120 | 165 | 132 | TAD731GE | JDG184H | BCI184H | 806 | 3400*1200*2100 | 4L | 30.9 |
5 | GDV188*S | 188 | 150 | 206 | 165 | TAD732GE | JDG224C | UCI224C | 806 | 3400*1200*2100 | 4L | 37.7 |
6 | GDV250*S | 250 | 200 | 275 | 220 | TAD734GE | JDG224D | UCI224D | 806 | 3600*1400*2300 | 4L | 48.5 |
7 | GDV325*S | 325 | 260 | 358 | 286 | TAD941GE | JDG224ES | UCI224E | 806 | 4000*1500*2350 | 4L | 61.7 |
8 | GDV375*S | 375 | 300 | 413 | 330 | TAD1343GE | JDG224E | UCI224E | 1040 | 4300*1550*2400 | 4L | 69.9 |
9 | GDV413*S | 413 | 330 | 454 | 363 | TAD1344GE | JDG224F | UCI224F | 1040 | 4300*1550*2400 | 4L | 76.9 |
10 | GDV500*S | 500 | 400 | 550 | 440 | TAD1641GE | JDG224G | UCI224G | 1056 | 4600*1600*2500 | 4L | 93.2 |
11 | GDV563*S | 563 | 450 | 619 | 495 | TAD1642GE | JDG224H | UCI274C | 1056 | 4600*1600*2500 | 4L | 1.9 |
12 | GDV625*S | 625 | 500 | 688 | 550 | TAD1643GE | JDG274C | UCI274C | 1056 | 4800*1800*2500 | 4L | 118.4 |
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
