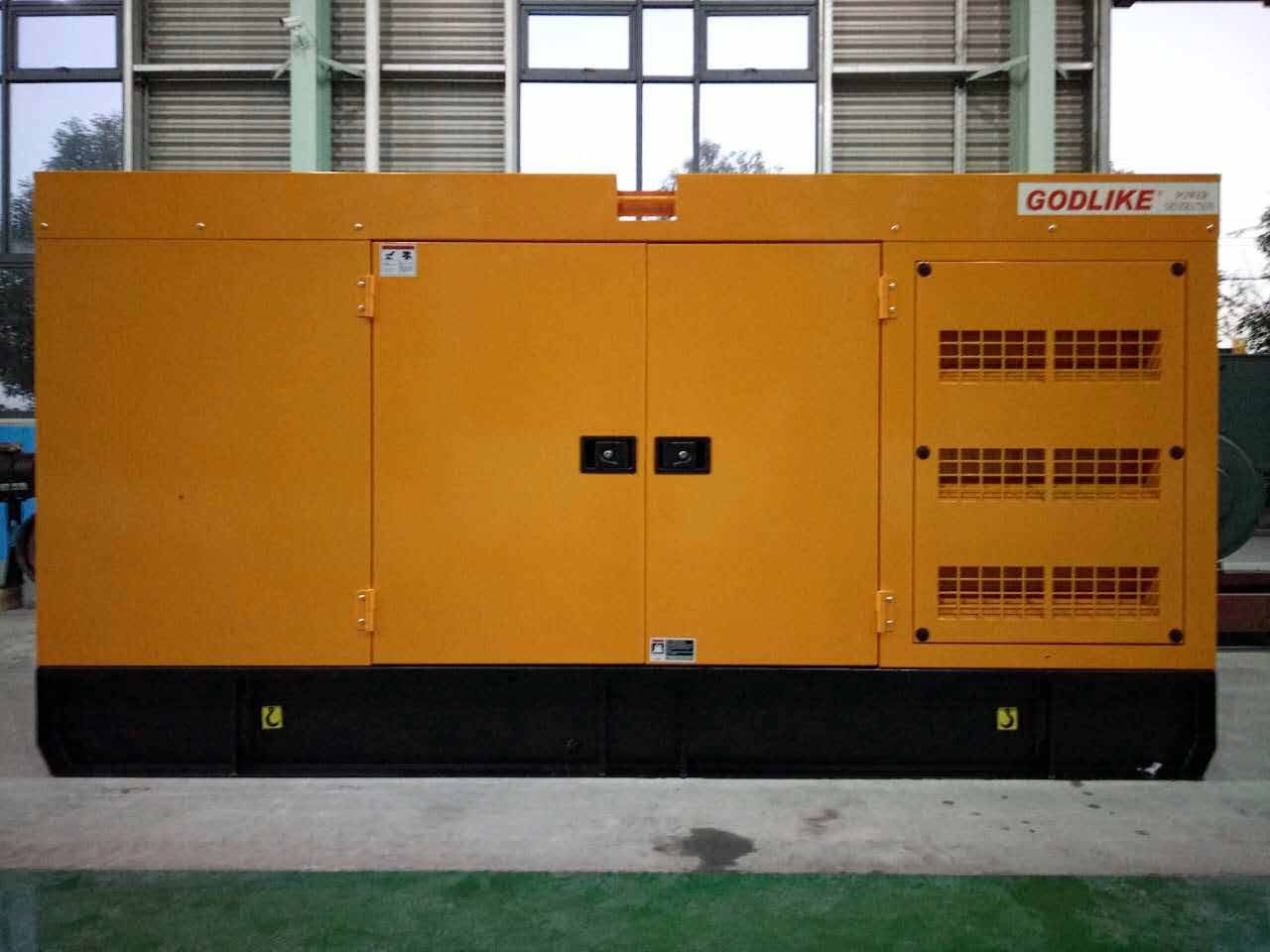

Famous Supplier Cummins 120kW/150kVA Soundless Generator (GDC150*S)
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the
outstanding design in every aspect and strict Q.C. System.
2. Customer First: We devote ourselves to develop products to meet customers' requirements .Our engineer develop and design new products for customers.
3. Technical Support and Service:our engineer team will solve your technical problems within 48 hours.
4. Strict test process before ex-factory :
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
5. Certification: CE,ISO,,TUV,GS,SONCAP etc.
Warranty policy:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date.
During the guarantee period, Hi-earns Power will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Hiearns Power provides cost spare parts maintenance of gensets.
Our service:
1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.
2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free uncder
the condition of this spare parts are not intentionally damaged.
| Generator set | Genset Model | GDC150 |
| Rating Power (KW/KVA) | 120/150 |
| Standby Power(KW/KVA) | 132/165 |
| Rating Ammeter(A) | 216 |
| Diesel engine | General data | Engine model | 6CTA8.3-G2 |
| Prime Power(KW/HP) | 163/222 |
| Standby Power(KW/HP) | 180/245 |
| number of Cylinder & Configuration | 6 cylinders in line |
| Bore X Stroke (mm) | 114X135 |
| Displacement(l) | 8.3 |
| Compression Ratio | 16.5:1 |
| Governor type | Electronic governor |
| Rated RPM | 1500 |
| Exhaust system | Exhaust gas flow(m³/min) | 27.6 |
| Max. Exhaust Gas Temperature(C) | 625 |
| Max. Exhaust back Pressure(KPA) | 10 |
| Air intake system | Aspiration Type | Turbo & After cooled |
| Max. intake depression(mbar) | 6 |
| Combustion air Volume(m³/min) | 9.5 |
| Fuel system | Rating Fuel Consumption(l/h) | 32 |
| 75% full Fuel Consumption(l/h) | 32.5 |
| Lubrication system | Total oil capacity(l) | 16.4 |
| Max permissible oil temp(C) | 121 |
| Oil pressure at rated rpm(KPA) | 276_414 |
| Cooling system | Total Coolant capacity(l) | 23.8 |
| Max. temperature of coolant(C) | 104 |
| Fan cooling air flow(m³/min) | 186 |
| Alternator | Alternator model | JDG274 |
| Rating Voltage(V) | 400/230 |
| Rating Capacity(KW/KVA) | 120/150 |
| Eff.% | 91.4% |
| Power Factor | 0.8 |
| Exciting type | Brushless self-exciter AVR |
| Voltage regulation | ±1% |
| No. of Phase | 3 phase 4 wire |
| Enclosure Class | IP121 |
| Class of Insulation | H |
| Battery | Rating Capacity(AH) | 2X150AH 12V |
| Dimension | Generator set dimension (LXWXH) | 2650x950x1430 |
| Weight | Generator set Net Weight (kg) | 2100 |
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
