Home Generator Products Famous Supplier 50Hz 120kw/150kVA Silent Cummins Generator (6CTA8.3-G2) (GDC150*S)

Famous Supplier 50Hz 120kw/150kVA Silent Cummins Generator (6CTA8.3-G2) (GDC150*S)

Famous Supplier 50Hz 120kw/150kVA Silent Cummins Generator (6CTA8.3-G2) (GDC150*S)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Famous Supplier 50Hz 120kw/150kVA Silent Cummins Generator (6CTA8.3-G2) (GDC150*S)

Standard Silent Type Gensets
Specifications
1. noise performance is conforming to international standard 65-75dBA at 1m distance.
2. 3C good ventilation system and heat radiation handling can protect gensets working in any ambient temperature all the time.
3. base tank designed can assure gensets running continuously about 8-10hours.
4. newly developed noise-absorbing material adopted, and anti-damping between base fram and gensets body can further reduce noise.
5. with design of 3 doors and 1 observation windows.
6.Excellent engines and alternators featured with strong power,high torque,quick start,easy maintenance and operation.
7.Compact structure,small size,and longer service life.
8.The canopies are made of high quality steel and powder coated.The paint is highly endurable against erosion and scratch,and strongly rustproof.
9.The control panel,service doors and canopy board adopt waterproof design and effectively stop rain and dust intrusion.
10.All movable devices are fixed firmly,and therefore help reduce vibration.

120kw/150kva silent cummins generator main specifictaions:

1.Main technical data of genset
1.1ModelGDC150*S
1.2Prime power120KW
1.3Prime voltage230/400V
1.4Speed1500 rpm
1.5Weight1700kg
1.6Overall dimension2100×800×1360mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1BrandCUMMINS
2.2Model6BTA5.9-G2
2.3Prime power155KW
2.4Governor typeElectronic
2.5Configuration4 cycle , 6 cylinder in line
2.6Cooling methodBy heater exchanger
2.7Bore/Stroke114×135 mm
2.8Displacement8.3L
2.9Starting methodElectric
2.10Fuel consumption212g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1BrandMARATHON
3.2ModelMP-120-4
3.3Prime power120KW
3.4ConfigurationBrushless , self-exciting
3.5Prime voltage230V/400V
3.6Frequency50 HZ
3.7Power factor0.8(lagging)
3.8Phase/wire3 phase 4 wires
3.9IsolationH

CUMMINS configuration and technical data

50HZ, 3 Phase, 400/230V
No.GENSET
Model
OUTPUT POWER
1500RPM 50HZ
Engine ModelAlternator
Model
Cyl.Disp.Bore
*Stroke
Fuel Cons.
Prime
KVA
Prime
KW
Standby
KVA
standby
KW
CUMMINSGODLIKESTAMFORD(nos)(L)(mm)(g/kw.h)
1GDC20*S201623184B3.9-G1/G2JDG164DPI 144D 43.9102*120215
2GDC25*S252028224B3.9-G1/G2JDG184FPI 144E 43.9102*120215
3GDC30*S302433264BT3.9-G1/G2JDG184GPI 144G 43.9102*120215
4GDC40*S403244354BT3.9-G1/G2JDG184HPI 144J 43.9102*120215
5GDC43*S433447374BTA3.9-G2JDG224CUCI224C43.9102*120215
6GDC50*S504055444BTA3.9-G2JDG224DUCI224D43.9102*120215
7GDC57*S574563504BTA3.9-G2JDG224ESUCI224E43.9102*120215
8GDC60*S604866534BTA3.9-G2JDG224EUCI224E43.9102*120215
9GDC63*S635069556BT5.9-G2JDG224EUCI224E65.9102*120215
10GDC73*S735880646BT5.9-G2JDG224FUCI224F65.9102*120215
11GDC88*S887096776BT5.9-G2JDG224GUCI224G65.9102*120215
12GDC93*S9375103826BT5.9-G2JDG224HUCI274C65.9102*120215
13GDC100*S10080110886BT5.9-G1/G2JDG274CUCI274C65.9102*120215
14GDC120*S120961321066BTA5.9-G2JDG274DSUCI274D65.9102*120215
15GDC135*S1351081491196BTAA5.9-G2JDG274ES UCI274E65.9102*120215
16GDC138*S1381101511216CTA8.3-G2JDG274ES UCI274E68.3114*135210
17GDC150*S1501201651326CTA8.3-G2JDG274EUCI274E68.3114*135210
18GDC160*S1601281761416CTA8.3-G2JDG274FUCI274F68.3114*135210
19GDC180*S1801441981586CTA8.3-G2JDG274GUCI274G68.3114*135210
20GDC200*S2001602201766CTAA8.3-G2JDG274HUCI274H68.3114*135210
21GDC225*S2251802481986LTAA8.9-G2JDG274JUCD274J68.9114*135197
22GDC250*S2502002752206LTAA8.9-G2JDG274KUCD274K68.9114*135197
23GDC250*S250200275220NTA855-GAJDG274KUCD274K610.8125*147200
24GDC250*S250200275220MTA11-G2AJDG274KUCD274K610.8125*147200
25GDC275*S275220303242NTA855-G1AJDG314DSHCI444D610.8125*147188
26GDC300*S300240330264NTA855-G1BJDG314DHCI444D610.8125*147188
27GDC313*S313250344275NTA855-G1BJDG314ESSHCI444ES610.8125*147188
28GDC325*S325260358286NTA855-G1BJDG314ESHCI444ES614.0140*152200.2
29GDC350*S350280385308NTA855-G2AJDG314E HCI444E614.0140*152200.2
30GDC350*S350280385308NTA855-G4JDG314E HCI444E614.0140*152200.2
31GDC375*S375300413330NTAA855-G7JDG314FSHCI444FS614.0140*152205.4
32GDC375*S375300413330KTA19-G2JDG314FSHCI444FS614.0140*152205.4
33GDC400*S400320440352NTAA855-G7AJDG314FHCI444F614.0159*159205.4
34GDC420*S420336462370NTAA855-G7AJDG354CHCI544C618.9159*159200.7
35GDC450*S450360495396KTA19-G3JDG354CHCI544C618.9159*159200.7
36GDC500*S500400550440KTA19-G3AJDG354DHCI544D618.9159*159200.5
37GDC500*S500400550440KTA19-G4JDG354DHCI544D618.9159*159200.5
38GDC550*S550440605484KTAA19-G5JDG354ESHCI544D618.9159*159200.5
39GDC600*S600480660528KTAA19-G6JDG354EHCI544E618.9159*159208
40GDC600*S600480660528KTAA19-G8JDG354EHCI544E618.9159*159208
41GDC625*S625500688550KTAA19-G6AJDG354FSHCI544F-S618.9159*159202
42GDC625*S625500688550KT38-GJDG354FSHCI544F-S618.9159*159202
43GDC700*S700560770616KTA38-GAJDG354GHCI544F-S1237.8159*159213
44GDC750*S750600825660KTA38-G2JDG404B LVI634B1237.8159*159209
45GDC800*S800640880704KTA38-G2BJDG404C LVI634C1237.8159*159196
46GDC900*S900720990792KTA38-G2AJDG404D LVI634D1237.8159*159196
47GDC1000*S10008001100880KTA38-G4JDG404E HCI 634G 1237.8159*159198
48GDC1125*S11259001238990KTA38-G9JDG404FHCI 634G 1237.8159*159198
49GDC1250*S1250100013751100KTA50-G3JDG404GHCI 634J 1237.8159*159213
50GDC1375*S1375110015131210KTA50-G8HCI 634J HCI 634K 1237.8159*159213
51GDC1500*S1500120016501320KTA50-GS8LVI 634G LVI 634G 1237.8159*159213

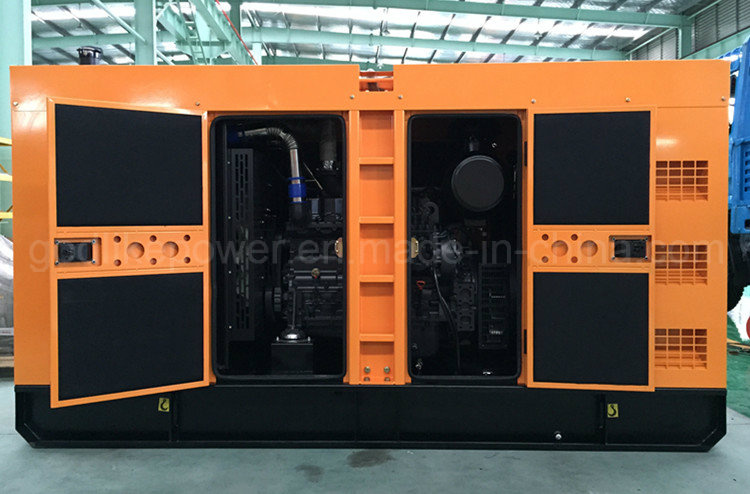

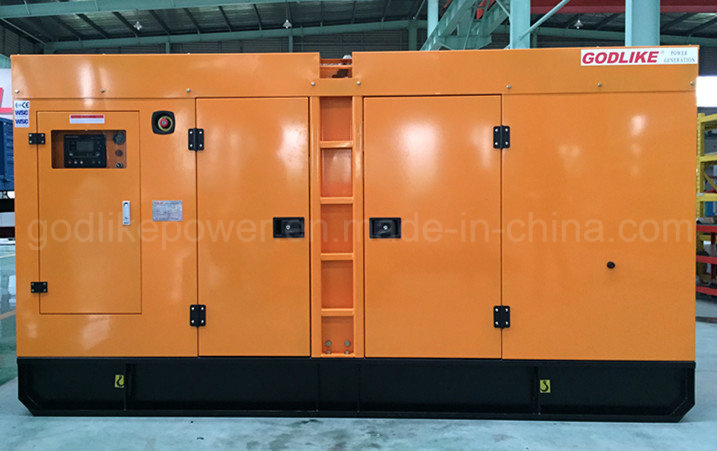

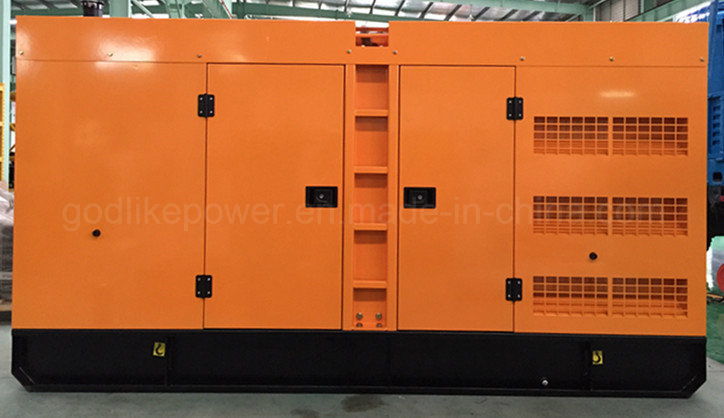

Silent cumins generator photos for reference:

Contact: Ms Vicki Yuan
Tel:86 0514 80915716


Prod Model: GDC150*S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Cummins Brand, Perkins, Deutz Is Optional
Alternator: Stamford Uci274c, Marathon, Engga, Godlike
Controller Panel Brand: Dse, Smartgen Is Optional
Controller Type: Digital, Mechanical Is Optional
Load Test: 25%, 50%, 75%, 100%, 110%
Voltage Range: 110V-690V
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
