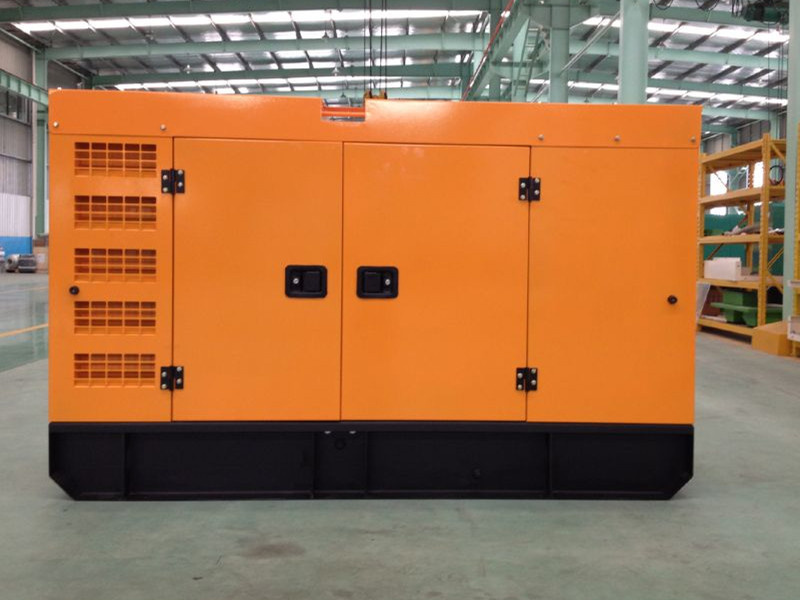

Famous supplier 36kw/45kVA Cummins Silent Box Diesel Generator (GDC45*S)
We have nearly 25years experience in producing and exporting all kinds of brush or brushless STAMFORD generator/alternator, electric motor, Cummins, Deutz, Lovol and Chinese brand diesel generating set. Most of our product has the ISO and CE certificate. The quality of our products is steady and confirmed by all of our customers
2,Alternator
1)Optional Brand: Engga, Stamford, Marathon,leroy somer
2)The standard generator set matches with Engga brand alternator, and customer also can choose other brands.
3)Standard AVR, AC three phase, 12 reconnect copper leads, single bearing or double bearing, self-exciting system and permanent magnet generator.
4)IP21-23 protection grade, insulation system is H class, and stators are wound to 2/3 pitch.
5)Manufacture standards: GB755, BS5000,VDE0530,NEMAMG1-22,IEC34,and ASB59
3,Digital Control Panel
Controller Brand: Smartgen
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
4,Warranty and Maintenance
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first, global warranty for Cummins.
3) After expiration, we provide spare parts maintenance with low price.
| 1. Specification of genset |
| Gensets model | GDC45*S |
| Prime power | 36KW/45KVA |
| Standby power | 41KW/51KVA |
| Rated Voltage | 230/400V |
| Rated frequency(HZ) | 50HZ |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 2450x1000x1550 |
| Genset Weight(kg) | 1360 |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | 4BT3.9-G2 |
| Number of Cylinders, Cylinder arrangement | 4 ,Vertical in-line |
| Cycle | Four stroke |
| Standby Rated Output kW | 40 |
| Aspiration | Turbocharged, Air / Air Cooling |
| Fuel System | Direct injection |
| Bore×Stroke (mm×mm) | 105x 135 |
| Displacement (Liter) | 4.676 |
| Speed Governor | E |
| Cooling System | Forced Water Cooling Cycle |
| Fuel Consumption at 100%/75%/50% Load (L/h) | 11.1/8.3/5.5 |
| Starting Method | DC12V electrical starting |
| 3. Specification of alternator |
| Alternator brand | GODLIKE |
| Alternator model | JDG224D |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | <50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±0.5% |
| Transient State Voltage | ≤-15%~+20% |
Contact: Ms Vicki Yuan
Tel:86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
