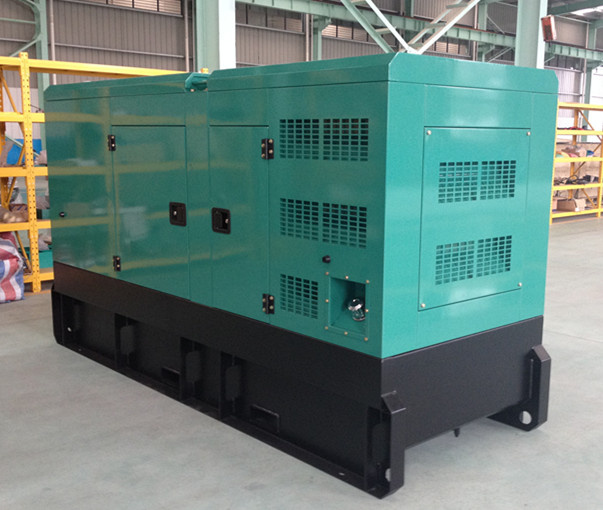

Famous manufacturer 50Hz 313kVA/250kw Diesel Generators (GDC313*S)
Main parameter:
1) Engine: power by Cummins Engine
2) Alternator: 3 Phase 4 Wire, Brushless, H class Insulation, Self-Exited ,IP23 Protection, AVR regulation, Voltage deviation: ±0.5%, THF<5%,low radio interference. Stamford or Leroy Somer etc
3) Output :250KW / 313kva
4) Frequency: 50/60 Hz
5)3 Phase 4 Wire & 1 Phase 2 Wire
6)Speed: 1500/800rpm
7) Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V . Single Phase Voltage Available: 100-250V
Accessories:
1) Standard accessories: Standard 40 radiator mounted on skid ,Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit ,operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Warranty policy
Guarantee for one year or 1200 hours whichever reach first from ex-factory date. During the guarantee period, GODLIKE will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, KAPUR provides cost spare parts maintenance of gensets.
Manufacturing Standards
CE,ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22; YD/T502
1.Main technical data of silent generator |
1.1 |
Model |
GDC313*S |
1.2 |
Prime power |
250KW/313KVA |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
1000kg |
1.6 |
Overall dimension |
1670×850×1270mm (just for reference) |
2.Main technical data of engine |
Diesel engine, 4 stroke. DC start. |
2.2 |
Model |
NTA855-G1B |
2.3 |
Prime power |
284KW |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle , 6 cylinder in line |
2.6 |
Air Intake System |
Tubocharged/After cooler |
2.7 |
Bore/Stroke |
102×120mm |
2.8 |
Displacement |
3.9 L |
2.9 |
Starting method |
Electric |
2.10 |
Compression ratio |
15:1 |
2.11 |
Fuel consumption |
201g/kw.h |
3. Main technical data of alternator |
Alternator is selected the new type brushless alternator designed by Stamford Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. |
3.1 |
Brand |
Stamford |
3.2 |
Model |
HCI444 |
3.3 |
Prime power |
250KW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
