Famous Factory Cummins Engine power 50Hz 16kw/20kVA Silent Generator (GDC20*S)
Engine Features:
* Super power, PT fuel system, ultra-high injection pressure, sufficent combustion, low fuel consumption and good economic performances.
* Replaceable wet cylinder sleeves, effective cooling system, good spare parts commonality, high product serialization, easy maintenance and low failure.
Diesel Engine Type:
* Working cycle: Four-strokes
* Combustion model: Direct injection
* Starting way: DC Batteries
* Cooling way: Radiator with fan & water tank
The Electrical Performance of Diesel Generator Sets
* Power factor: 0.8(lagging)
* Connection way: Three phase four lines
* Ambient temperature: -40C~52C
* Steady voltage regulation rate: ± 1%; Transient voltage regulation rate: +20~-15%
* Steady frequency regulation rate: ± 1%; Transient frequency regulation rate: +10~--7%
* Voltage fluctuation rate: 0.5%
* Frequency fluctuation rate: 0.5%
AC Alternator
* Standard brands: Etone, Leroy Somer
* Optional brands: Marathon\Stamford
* Excitation method: Brushless self-excitation
* Isulation grade: H
* Protection grade: IP21-IP23
* Electromagnetic interference: THF<2%, TIF<50
Control System
* Standard matching brands: Smartgen and Comap
* Optional brands: Harson, Deepsea
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional)
16kW/20kVA Silent Generator Main Specifications:
1. Specification of genset |
Gensets model | GDC20*S |
Rated power | 20KVA |
Maximum power | 22KVA |
Rated Voltage | 400V |
Rated frequency(HZ) | 50HZ |
Rated Speed | 1500rpm |
Power Factor | 0.8(lagging) |
Dimensions(mm) (L×W×H) | 1660x750x1200 |
Net Weight(kg) | 800 |
2. Specification of diesel engine |
Engine brand | Cummins |
Engine model | 4B3.9-G2 |
Number of Cylinders | 4 |
Cylinder arrangement | Vertical in-line |
Cycle | Four stroke |
Aspiration | Natural |
Fuel System | BYC A /GAC 24V |
Bore×Stroke (mm×mm) | 102x120 |
Displacement (Liter) | 3.9 |
Compression Ratio | 17.3:1 |
Speed Governor | Electronic |
Cooling System | Forced Water Cooling Cycle |
Total lubrication system capacity (L) | 9.5 |
Oil system type | Pressure Lubrication |
Fuel Consumption at 100% Load (L/h) | 3 |
Starting Method | DC24V electrical starting |
3. Specification of alternator |
Alternator brand | GODLIKE (Copy Stamford technology) |
Alternator model | JDG184E |
Number of Phase | 3 |
Connecting Type | 3 Phases and 4 Wires |
Number of Bearing | 1 |
Protection Grade | IP23 |
Altitude | ≤1000m |
Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
Insulation Class | H |
Telephone Influence Factor (TIF) | ≤50 |
THF | ≤2% |
Voltage Regulation, Steady State | ≤±1% |
Transient State Voltage | ≤-15%~+20% |
4. The components of the generator set |
1)Cummins engine 2)KAIHUA alternator 3)Automatic Start Controller |
5.General Features: |
Cummins Engine |
Radiator 40°C max, fans are driven by Belt, with safety guard |
12V charger alternator |
KAIHUA Alternator |
Absorber |
Dry type air filter, fuel filter, oil filter |
Main line circuit breaker |
Standard control panel |
Ripple flex exhaust pipe, exhaust siphone, flange, muffler |
12V*2 batteries, rack and cable |
User manual |

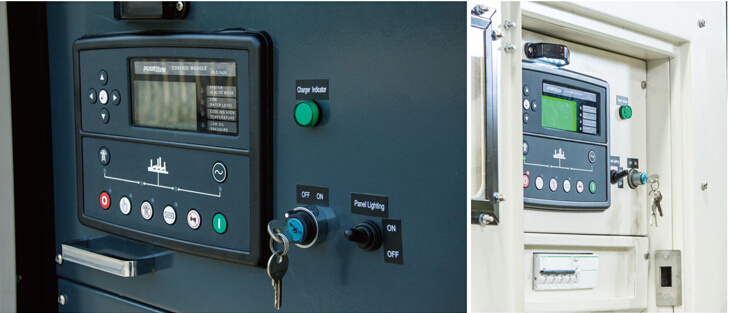

6. Specification of control Panel |
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. |
The features of controller: |
Kaixun is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. |
The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED's. |

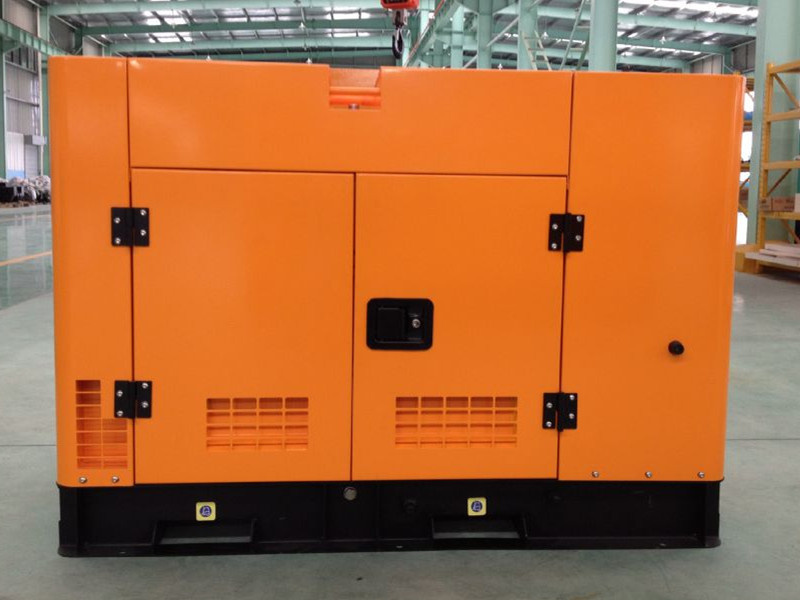

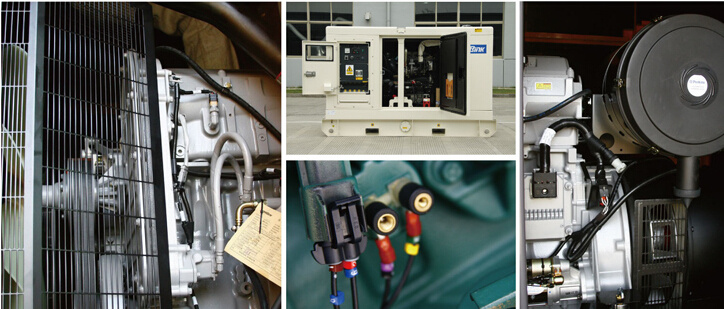

silent generator photos:
