Famous Engine Cummins 72kw/90kVA Silent Standby Generator (GDC90*S)
Gensets model: GDC series
Prime power: 90kVA/72KW
Standby power: 99kVA/80KW
Rated Voltage: 400/230V
Rated Current: 360A
Rated frequency(Hz): 50
Rated Speed: 1500rpm
Engine specificationEngine brand: Cummins
Model: 6BT5.9-G2
Cylinder arrangement: Vertical in-line
Cycle: Six stroke
Aspiration: Turbocharged and Water/Air cooling
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Starting Method DC24V electrical starting
Alternator: Copy StamfordModel: JDG274C
Number of Phase: 3P
Connecting Type: 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper winding wire
Insulation Class: H.
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost pricesOur service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
1.Main technical data of gensets |
1.1 | Model | GDC90*S |
1.2 | Prime power | 72KW |
1.3 | Prime voltage | 230/400V |
1.4 | Speed | 1500 rpm |
1.5 | Weight | 1250kg |
1.6 | Overall dimension | 1850×820×1350mm (just for reference) |
2.Main technical data of engine |
2.1 | Model | 6BT5.9-G2 |
2.2 | Prime power | 86KW |
2.3 | Governor type | Electronic |
2.4 | Configuration | 4 cycle , 6 cylinder in line |
2.5 | Cooling method | Water cooled |
2.6 | Bore/Stroke | 102×120 mm |
2.7 | Displacement | 5.9 L |
2.8 | Starting method | Electric |
2.9 | Fuel consumption | 212g/kw.h |
3. Main technical data of alternator |
3.1 | Model | JDG224C |
3.2 | Prime power | 80KW |
3.3 | Configuration | Brushless , self-exciting |
3.4 | Prime voltage | 230V/400V |
3.5 | Frequency | 50 HZ |
3.6 | Power factor | 0.8(lagging) |
3.7 | Phase/wire | 3 phase 4 wires |
3.8 | Isolation | H |

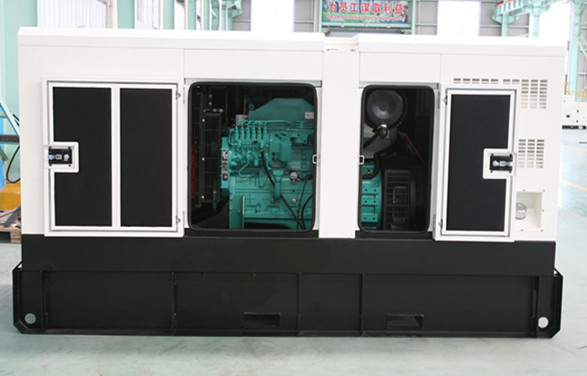

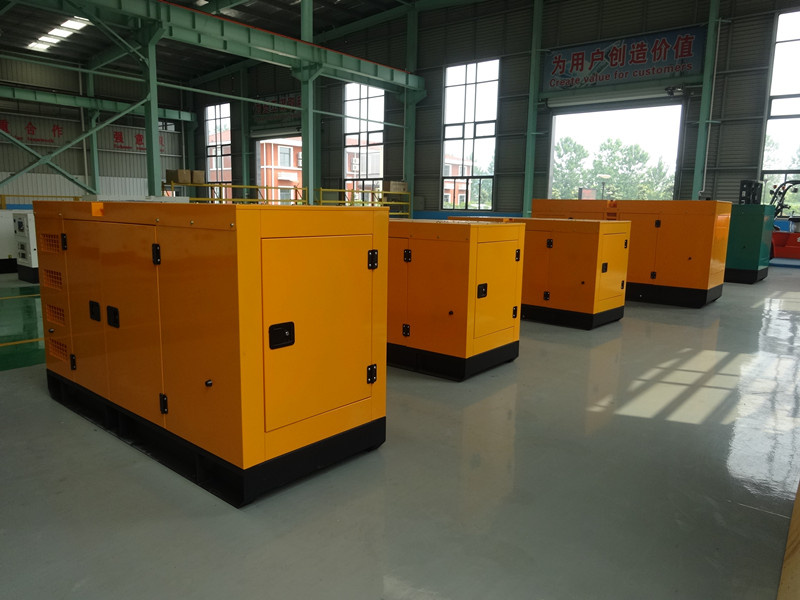

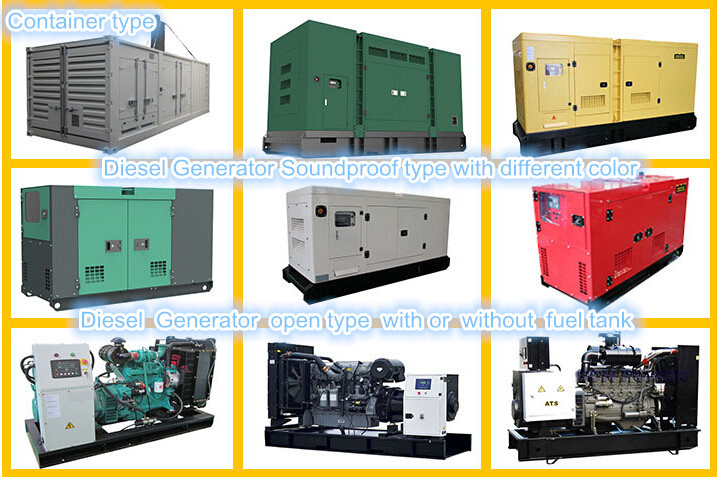

90kVA Silent diesel generator photos:
