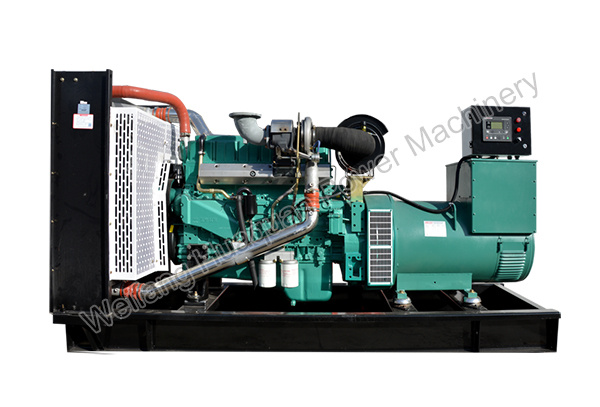

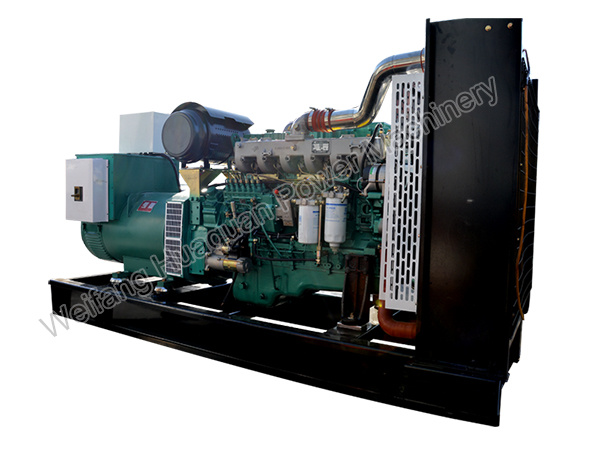

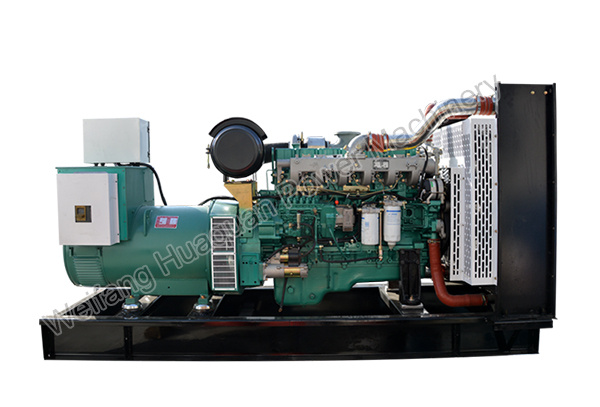

Famous brand 300KW/375KVA electric generator 1. 300KW diesel generator
2.Adopting technology from AVL company.Europe.
3.Lower emission and lower noise are environmentallyEngine Features
1. Adopting technology from AVL company,Europe.
2.Cast iron crankshaft made in one single piece, top-quality alloy cast iron cylinder head, engine is smaller size, lighter in weight and featured with less vibration, lower noise and higher reliability as well.
3.4-valve technology, bring in advanced technology to produce injector,which has better atomization and more intense combustion,fuel consumption is much lower than all similar products with same power at home.
4.YUCHAI special sealing technology for piston ring and oil sealing technology for valve, lowering oil consumption by 30% compared with all similar products of same power at home.
5.Equipped with electronic speed governor,ensuring stable operation.
6.Lower emission and lower noise are environmentally friendly.
7.Emission reach National second and third class standard.
8.Alternator insulation class: H/Protection:IP21
9.Voltage regulation: AVR OR DVR
10.Excitation system:brushless self-exciting or PMG
11.Management system: GUILIN Guangming management system
12.Charging System: Rotary generator or floating charger.
13.Output system: famous international or Civel brand switch(optional).
300KW Diesel Generator Technique Parameter:
Technical data |
Genset Model | HQ300GF |
Output Power | Prime | 375KVA × 0.8 = 300KW |
Standby | 412.5KVA × 0.8 = 330KW |
Rated Voltage | 400/230V |
Frequency | 50Hz |
Power Factor | 0.8(lagging) |
Dimension (L×W×H) (mm) | Genset | 3010×1040×1820 |
With packing | 3210×1240×2020 |
Weight (kg) | Genset | 2450 |
With packing | 2550 |
Diesel Engine |
Brand | yuchai |
Model | YC6T550L-D21 |
Engine Structure | In line 6 cylinder, |
Rotating Speed | 1500r/min |
Engine Cooling Method | Radiator for ambient temp 40OC, belt driven cooling fan with cover |
Starting Method | 24V DC, with Silicon commutating charging motor |
Aspiration | Natural |
Fuel System | Directly Injection |
Displacement(L) | 10.34 |
Compression Ratio | 17.5:1 |
Bore×Stroke(mm) | 123×145 |
100% load fuel consumption (L/h) | 70 |
Governor Type | Mechanical Governor |
Alternator |
Brand | XN4FS300KW |
Excite Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
Connecting Type | 3 Phase and 4 Wires |
Steady Frequency Change | 0~5% |
No load voltage | ≥95%~105% |
Steady voltage | ≤±1% |
Insulation degree | H degree |
Enclosure degree | IP22 |
Altitude | ≤1000m |
Control System The control panel is standard control panel with AMF, with the display of voltage,current, frequency, water temperature, oil pressure. And the protection functions of charge fail, fail to start, low oil pressure, high temperature, over speed and emergency stop. |
The Accessories Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and the operational and maintenance manual . |
Genset Options -Base fuel tank -Soundproof type -Mobile trailer -Other requirements |
