Factory Price Soundproof China Diesel Generator 10kVA/8kw (GDY10*S)Gensets model:GDYseries
Prime power:10KVA/8kW
Standby power:11kVA/8.8KW
Rated Voltage:400/230V
Rated Current:360A
Rated frequency(Hz):50
Rated Speed:1500rpm
Engine brand:Yangdong
Model:YD380D
Cylinder arrangement:Vertical in-line
Cycle:Six stroke
Aspiration:Turbocharged and Water/Air cooling
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Starting Method DC24V electrical starting
Alternator brand:Stamford Copy Alternator
Model:JDG164B
Number of Phase:3P
Connecting Type:3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper winding wire
Insulation Class:H.
Control Panel
It includes:
1.Automatic cutter which is suitable for the generator power
2.Turn on key
3.A device to measure the generators speed
4.Counter for measuring the Operating hours
5.Device to measure the current overload with a switched current
6.A device to measure the battery voltage
7.Voltmeter with a voltage exchanger
8.A device to measure the frequency
9.Thermostat to regulate the voltage
10.A device to measure the oil pressure
11.Alerting lamps indicating low and high temperature
12.Controller of the current increase and short circuit
13.Emergency stop button
Model | GDY10*S |
Rated frequency (Hz) | 50 |
Rated output (kVA) | 10 |
Max. output (kVA) | 10 |
Rated Voltage (V) | 220/380 |
Rated current (A) | 15.2 Prime |
Rated rotation speed (r/min) | 1500 |
Phase Number | Three phase |
Power factor (Cos φ) | 0.8 |
Insulation Grade | H |
Pole number | 12 |
Excitation mode | Brushless,AVR |
Panel Type | Digital Panel |
Voltage (V) | 220/380 |
Receptacle | - |
Connection pole | With |
DC12V output | With |
Overall dimension (L*W*H) (mm) | 1800*850*1112 |
Dry weight (kg) | 613 |
Noise level (7m) dB(A) | 64 |
Structure type | Silent |
Engine Model | YD380D |
Engine Type | Three-cylinder, natural aspiration, water-cooled,direct injector |
Cylinder No.-bore× stroke (mm) | 3-80*90 |
Displacement (ml) | 1.357 |
Rated power [KW/(r/min)] | 10/1500 |
Compression ratio | 22 |
Rated rotation speed (r/min) | 1500 |
Combustion system | Direct Injector |
Cooling system | Water cooled |
Lubrication system | - |
Starting system | Electric |
Fuel type | Diesel |
Lube oil brand | - |
Capacity of cooling water (L) | 15 |
Lube capacity (L) | 9 |
Starting motor capacity (V) | 12V |
Charging generator capacity (V) | 12V |
Battery capacity (V-Ah) | 12V-45Ah |
Fuel Tank | 16.6 Litres |
Running Time | 8 Hours |

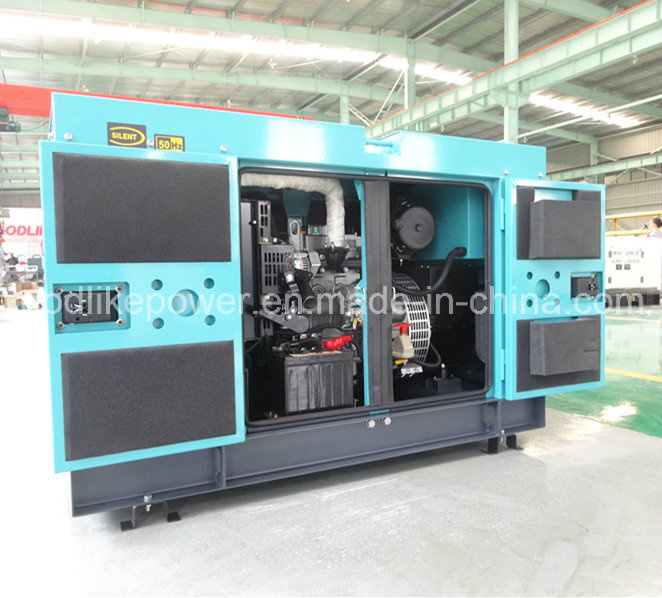

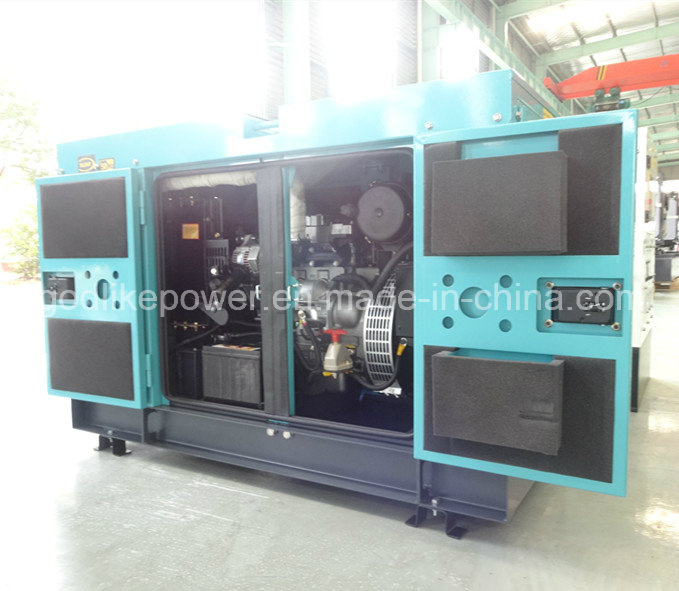

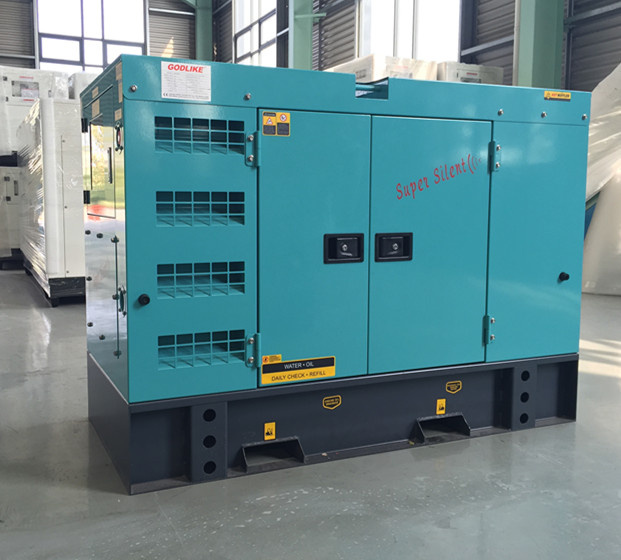

Generator photos:
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
