Generator Manufacturers and Factories

Home Generator Products Factory Price Diesel Generator Pure Copper Alternator

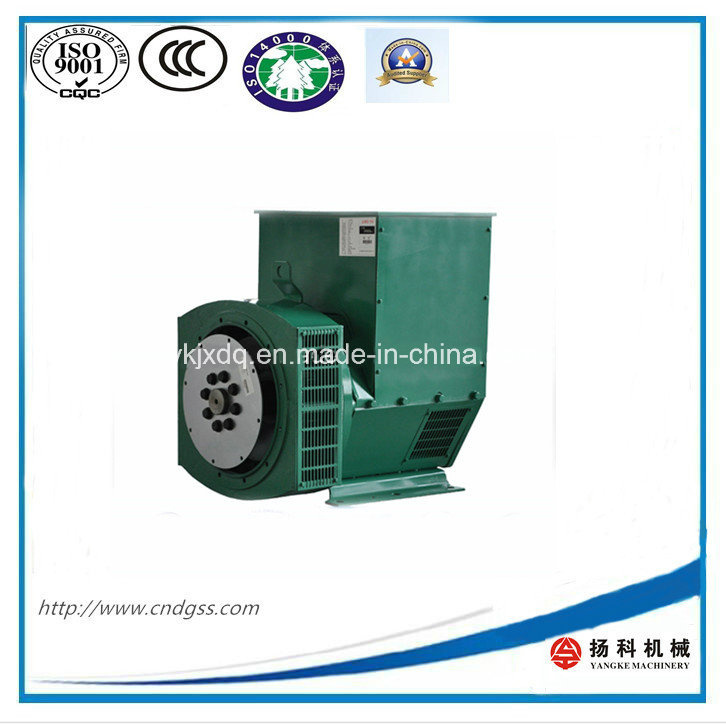

Factory Price Diesel Generator Pure Copper Alternator

Factory Price Diesel Generator Pure Copper Alternator
Price: US $ 2000-4000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
1,AVR control
2,IP23, Insulation Class H
3,2/3 pitch winding
4,100% copper wire and 100% output
5,ISO9001-2008,CE certifica

 Product Description
 single phase  generator/single phase alternator 8---2500kva single phase alternator AC brushless synchronous alternator

 1, Alternator Details :


Alternator

Powered by LOVOL/DOOSAN/ISUZU/CUMMINS/PERKINS/DEUTZ

Model

YANGKE-112

Rated Output(KW/KVA)
112KW/ 140kva

Voltage

110V--280V can be indicated

Frequency

50Hz/60Hz

Speed

1500rpm/1800rpm/3000rpm/3600rpm

Power Factor

1

Insulation Class

Class H

Ingress Protection

IP22/IP23

AVR(Option)

SX460,SX440,MX341,AS440,SX440T,MX321




2.Features:

1.Optional permanent magnetic alternator , provide invariable excitation in any situation.
2.Easy to be connected with power network or other alternators.Standard 2/3pitch windings avoid excessive neutral current.
3.Dynamically balanced rotors, with single or two sealed ball bearings.
4.Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5.Wide range of flange adaptor and single bearing coupling disc.
6.Built to conform to all leading industrial and marine standards.

3.Electrical Character:

Excitation system:The main stator supplies power to exciter stator via Automatic Voltage Regulator (AVR) .The output of exciter rotor is fed to the main rotor through a three phase full wave rectifier.There are varistors at the both ends of the rectifier for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss.Exciter stator is equipped with permanent magnetic steel in order to start up the alternator smoothly in any occasion.

4.Insulation & Immersion:

Insulation class H.
All wound components are made up with specialized material and immersed in varnish by especially technology.Resin matrix material is developed to strengthen the process and machinery intensity of windings and revolving parts for the alternator working under harsh environment.

5.Windings and electric features:

Standard 2/3 pitch windings design can eliminate the triple frequency harmonics on the voltage waveform which is the optimum design for trouble-free supply of non-linear loads.

6.Physical features:

Shaft & key

All generator rotors are dynamically balanced to better than BS6861:Part 1 Grade 2.5 for minimum vibration in operation.Two bearing generators are balanced with a half key.

Wiring terminal and terminal box

Standard alternator is 3 phase re-connectable to 12 ends brought out to the terminals, which are mounted on a cover at the non-drive end of the alternator .A sheet steel terminal box contains the AVR and provides ample space for customer's wiring and gland arrangements.It has removable panel easy access.

Packaging & Delivery


Packaging Detail:
Plywood case or customer required
Delivery Detail:3-10 days after deposit received



Company information

 Yangzhou YANGKE Machinery Electric Co.,ltd is a high-tech generator manufacture which collects research and development production and marketing together.

Our company not only establishes humanized modern enterprise management system, perfect quality management system and certification authority, but also equipped with international advanced facilities of research and development, manufacture and test. The management concept of our company is to develop the best product, to provide the best service, and to establish the best brand. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the strong technical strength, our company has formed the structure of product series. The current main products are: QS series 8-3000kva brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our generator sets are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator set and base frame, a circuit breaker to protect the generator from overload and a two wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and GB/T2008-2001 occupation health & safety management.

Our company has advanced detection equipment, modern production technology, professional manufacturing technology and perfect quality management system with a strong R&D and technological strength. We can provide a variety of specifications common automated, automatic cut over, soundproof and mobile and so on high quality, the low energy consumption power set satisfies the customer all electric power set satisfies the customer all electric power demand. We also can satisfy the user different voltage, different frequency request, as well as many units and networking power supply system.

Our products in southeast Asia, central Asia, the Middle East, Africa and South America are used.


Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.

FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America

Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618262575201
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com

Prod Model: YANGKE-112
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Green
Frequency: 50/60Hz
Fan Material: Aluminum
Rated Voltage: 110-280V
Rated Output(Kw/kVA): 112/140
Rotating Speed: 1500rpm/1800rpm/3000rpm/3600rpm
Power Factor: 1
Insulation Class: H
Ingress Protection: IP22/IP23
Export Market: Global
Type: Basic Diesel Generator
Installation Method: Portable
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.

We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.

Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
