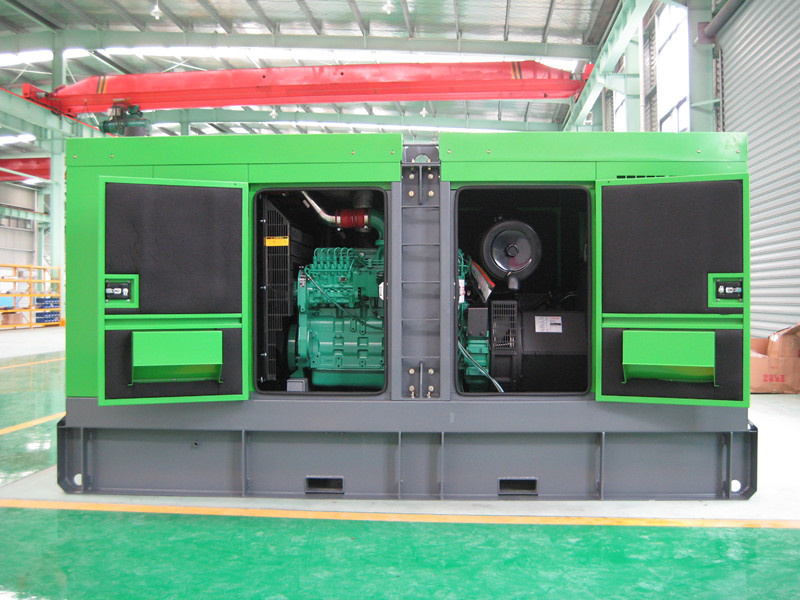

Factory Price 50Hz 80kw/100kVA Cummins Generator Manufacturer (GDC100*S)

Factory price 50Hz 80kw/100kVA Cummins Generator Manufacturer (GDC100*S)

Basic Info.
1. International Warranty Service
2. Both water cooled engine and air cooled engine for option
3. With ISO9001 & TUV certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Lisite alternator
6. Perfect after-service network
7. Power range from 15kVA to 585kVA, 50Hz &60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load
9. Very short delivery time

Generator Set:
Generator Model: GDC100*S
Prime Power(KW): 80KW/100V
Rated Voltage(V): 400/220V
Frequency(Hz): 50Hz
Power Factor: 0.8(lagging)
Rated Current (A): 144A
Dimension (L× W× H) (mm): 2400*800*1600mm
Genset weight (KG): 1150KG
Diesel Engine:
Brand: Cummins
Type: 6BT5.9-G1
Power(KW): 90KW
Number of Cylinders: 6
Rotating Speed: 1500RPM
Aspiration: Turbocharged after water-cooled
Bore× Stroke(mm): 105*120mm
Displacement(L): 6.23L
Compression Ratio: 15.5: 1
Speed Governor: Electrical
Cooling System: Water-cooled
Fuel Consumption at 100% Load: ≤ 208g/kwh
Starting Method: 24V Electrical starting

Alternator:
Brand: copy Stamford Brushless
Model: JDG274C
Rated Voltage(V): 120V-690V
Rated Volumn(kVA): 100kVA
Rated Power(KW): 80KW
Connecting Type: 3hase and 4 Wires
Frequency: 50/ 60Hz 1500RPM/1800RPM
Number of Bearing: Single/Double
Protection Grade: IP23/IP44
Altitude: Within the limits of 1000m, temperature of 40º C or OEM
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class: H/F
Telephone Influence Factor (TIF): 50
THF: <2%
Voltage Regulation, Steady State: ≤ ± 0.5%
Transient State Voltage: ≤ -15%~+20%

Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idleload, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.

Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.

Control System:

Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.

Engine of  CUMMINS Diesel Generator Set for Landuse
Engine model	DCEC Cummins 6BT5.9-G1
No. of cylinders	6(in-line)
Displacement(L)	5.9
Induction system	Exhaust turbocharged, water-air inter-cooling
Combustion system	A type fuel pump
Bore*Stroke(mm)	102*120
Compression ratio	17.5:1
Rated speed(rpm)	1500
Maximum power(KW/HP)	116/157
speed control system	High precision elelectrical speed governor
exhaust smoke level(m 3 /min)	17.6
Exhaust temperature(°C)	570
Maxium exhaust back pressure(kPa)	10
Maxium intake pressure(kPa)	6.35
Air consumption(m 3 /min)	8.2
Air flow(m 3 /min)	190
100% load fuel consumption(L/H)	26
The total capacity of oil(L)	16.3
Oil consumption(g/kwh)	≤4
Oil sump capacity(L)	14.2
Rated oil pressure(kPa)	345
Coolant capacity (engine and radiator)(L)	16
Thermostat opening temperature(°C)	82-95
Maximum water temperature(°C)	104
