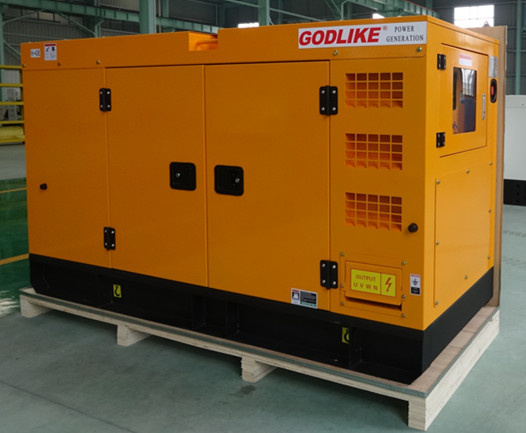

Factory price 50Hz 3 Phase Cummins 30kVA Diesel Generator (GDC30*S)
Generator Set:
Generator Model: GDC30*S
Prime Power(KW): 24KW
Rated Voltage(V): 400/220V
Frequency(Hz): 50Hz
Power Factor: 0.8(lagging)
Rated Current (A): 144A
Dimension (L× W× H) (mm): 2400*800*1600mm
Genset weight (KG): 1150KG
Diesel Engine:
Brand: Cummins
Type: 4BT3.9-G2
Power(KW): 36KW
Number of Cylinders: 4
Rotating Speed: 1500RPM
Aspiration: Turbocharged after water-cooled
Bore× Stroke(mm): 105*120mm
Displacement(L): 6.23L
Compression Ratio: 15.5: 1
Speed Governor: Electrical
Cooling System: Water-cooled
Fuel Consumption at 100% Load: ≤ 208g/kwh
Starting Method: 24V Electrical starting
Alternator:
Brand: GODLIKE Stamford Brushless
Model: JDG184
Rated Voltage(V): 120V-690V
Rated Volumn(kVA): 30kVA
Rated Power(KW): 24KW
Connecting Type: 3hase and 4 Wires
Frequency: 50/ 60Hz 1500RPM/1800RPM
Number of Bearing: Single/Double
Protection Grade: IP23/IP44
Altitude: Within the limits of 1000m, temperature of 40º C or OEM
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class: H/F
Telephone Influence Factor (TIF): 50
THF: <2%
Voltage Regulation, Steady State: ≤ ± 0.5%
Transient State Voltage: ≤ -15%~+20%
Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idleload, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.
Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.
Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.
Control System:
Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.
| Gensets model | GDC30*S |
| Prime power | 24KW/30KVA |
| Standby power | 27KW/33KVA |
| Rated Voltage | 230/400V |
| Rated frequency(HZ) | 50HZ |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 2420x900x1250 |
| Genset Weight(kg) | 1150 |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | 4BT3.9-G2 |
| Number of Cylinders, Cylinder arrangement | 4 ,Vertical in-line |
| Cycle | Four stroke |
| Standby Rated Output kW | 30 |
| Aspiration | Turbocharged, Air / Air Cooling |
| Fuel System | Direct injection |
| Bore×Stroke (mm×mm) | 100x 105 |
| Displacement (Liter) | 3.707 |
| Speed Governor | M |
| Cooling System | Forced Water Cooling Cycle |
| Fuel Consumption at 100%/75%/50% Load (L/h) | 8.1/6.3/4.7 |
| Starting Method | DC12V electrical starting |
| 3. Specification of alternator |
| Alternator brand | GODLIKE |
| Alternator model | JDG184 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | <50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±0.5% |
| Transient State Voltage | ≤-15%~+20% |
Contact:Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
