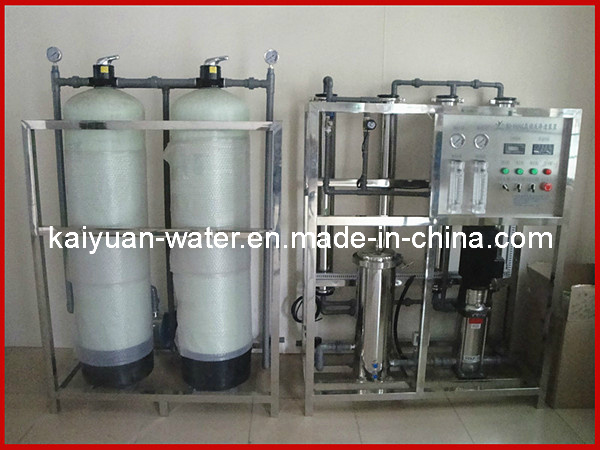

Factory Hot Sales Home RO Water Purifier with Ozone Generator

1000L/H Factory Hot Sales Home RO Water Purifier With Ozone Generator

Guangzhou Kaiyuan Water Treatment Equipment Co., Ltd is located in Baiyun district, Guangzhou city. We are specialized in manufacturing reverse osmosis(RO) water treatment equipments. The RO system can purify tap water, underground water, river water and seawater to drinking pure water. The RO water purification machine is applied in pharmaceutical area, bottled water production line, chemicals industry, cosmetic production etc.

1. Main parameters of RO Water Purifier:

1)Model: RO-1000L/H
2)Capacity of pure water: 1000 L/H 25degree
3)General power: 2.5KW
4)Electrical power: AC 380V 50Hz
5)RO membranes: LCLE-4040 Filmtec 4PCS
6)Multi-phases pump: (Nanfang or Grundfos optional)
7)Beforehand filter: Fiber glass and stainless steel optional
8)PP sediment membranes filter: 20" 5um housing: Stainless steel
9)Booster pump: Nanfang, Hangzhou
10)Active carbon filter: 50kg
11)Quartz sand filter: 150kg

2. Working process

Raw water----booster pump---quartz sand filter---activated carbon filter---water softener (optional)---security filter----high pressure pump---RO system----ozone generator---pure water tank(or bottled water filling production line)

3. Advantages:

1). RO water purification system can produce pure water continuously and highly automatic
2). No need chemical to regenerate, easy operation
3). RO system membranes are imported USA DOW membranes.
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can wash automatically and reduce pollution
6). Water shortage protection for multi-stage pump
7). Production water conductivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). It is PLC program controller
10). Easily control and Maintain
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection

4. Application industry

1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2). Food and beverage industry: Filter for mineral water, wines and fruit juice
3). Medicine industry: Filter for drug liquid, gases
4). Chemical industry: Filter for organic solvent
5). Petroleum industry: Filter for oil-field flooding

After -sale service instructions

1)Warrantee: 1 year, all the components have problem within this year, will
Resend quickly for free.

2)User Manual: Provide the specific entire system"User Manual"

3)Spare parts: After 1year guarantee, offer spare parts with preferential
Price.

4)Technical guideline: Provide life long" Net Technical Support "freely.

5)Transportation: Offer professional shipping service/air service if necessary.

6)Documentary: Collecting cargo and handle paper work for exporting.

7)Order supervisor: Manage your order very well after planning stable orders to keep your stable market running.

Guangzhou Kaiyuan Water Treatment Equipment Co., Ltd, are specialized in manufacturing reverse osmosis(RO) water treatment equipments. The RO system can purify tap water, underground water, river water and seawater to drinking pure water. Welcome your visiting to our factory warmly!
