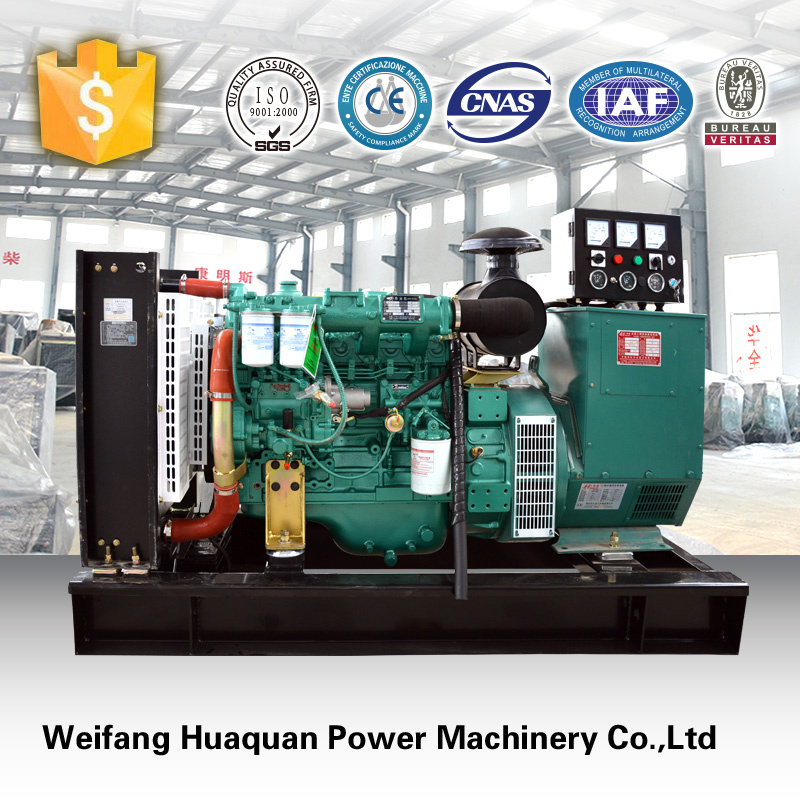

1. The main parameters of Yuchai 50kva generator diesel |
The model of the unit: |
HQY40GF |
Power: |
40KW/ 50KVA |
Rated voltage: |
400V/230V |
Rated current: |
72A(adjustable) |
Rated frequency: |
50Hz/60Hz |
The factor of rated power |
COS=0.8(lag) |
The regulating rate of steady voltage: |
≤±0.5% |
The regulating rate of instantaneous voltage: |
≤-10%/ +15% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤0.5% |
The regulating rate of steady frequency: |
≤3% |
The regulating rate of instantaneous frequency: |
≤10% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤0.25% |
The waste of fuel with full load: |
205g/kw/h |
size(mm): |
1800*750*1200 |
weight: |
920KG |
2.The main parameters of the Yuchai 50kva generator diesel engine |
Brand: |
Yuchai |
Model: |
YC4D60-D21 |
Type: |
four strokes, waste gas turbine boost,direct spurting type |
Cooling way: |
water cooling |
With Type: |
Inline type |
Bore *Trip : |
108mm*115mm |
Displacement |
4.214L |
Lubricating oil capacity: |
12L |
Cylinder: |
4cylinders |
Rotating speed: |
1500r/min or 1800r/min |
The regulation of rotating speed: |
Electronic speed |
Starting way: |
DC24V starting with electricity |
3.The main parameters of the alternator for Yuchai 50kva generator diesel |
Brand: |
ComAp,Stamford,Marathon,Hengsheng |
Type: |
brushless (AVR automatic voltageregulating) |
The connecting way of the phase: |
three phases four lines |
Insulation degree: |
H degree |
Grading Protection: |
IP21/IP23 |
Engine Feature
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals
Alternator Feature
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)
Our Yuchai Yuchai 50kva generator diesel service quality assurance:
1)Before-sale Service:we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance:our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:We create files for end user and provide them follow-up service,regular return visit and permanent maintenance.
4)Spare parts supply:We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:We provide perennial major overhaul and maintenance service.
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
