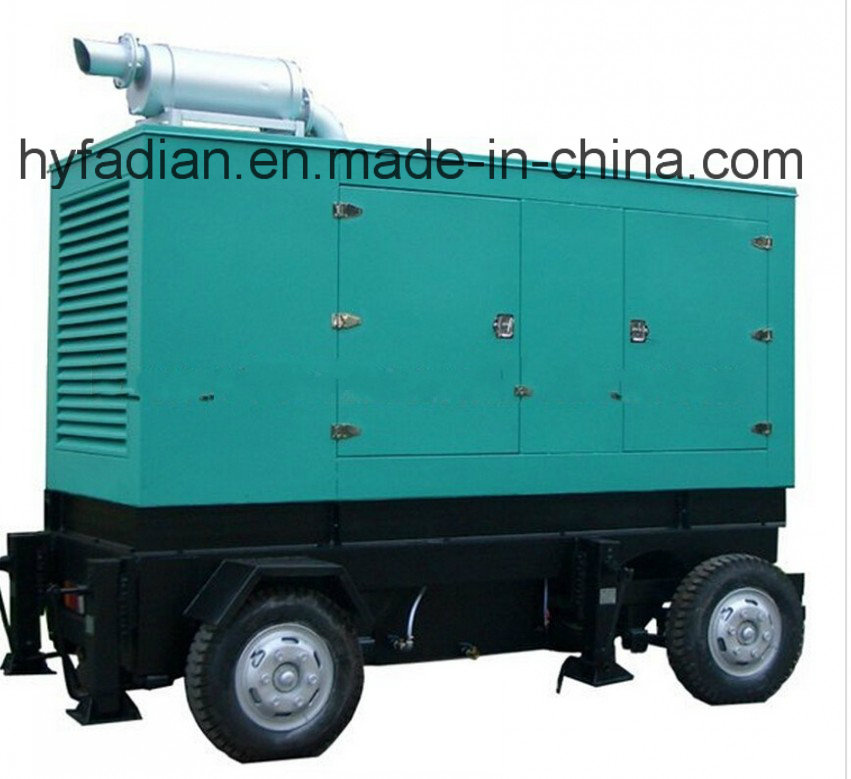

Trailer Type Diesel Generators:
General Features:
1. With all the advantages of soundproof sets.
2. Suitable for outdoor works.
3. Towing device is set aside on the wheel chassis to keep balance.
4. Equipped with warning lamp according to transport safety standards.
5. Cable rack for option.
6. Single axle or double-axle, mechanical or auto brake for option, meeting various requirements.
7. Convenient fuel filling system; The fuel fill cap is lockable.
8. Trailers are available with single or tandem axles, and surge or electric brakes can best fit your needs.
9. Trailer-mounted and skid-application fuel tanks are both filled through a locking fuel door on the generator cabinet.
Company Profile:
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers. The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators.
We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer's require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects. For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Diesel generator set with trailer
1. Engine brand, Cummins, Perkins, Volvo, Shangchai, Wudong...etc.
2. Alternator brand, Marathon, Stanform, Engga...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10. Integral guel tank ( 8 hours)
11. Sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60Hz
13. Atomatic alarm system
14. Insulation, class H
15. Low noise & low fuel consumption
16. Outdoor power supply and emergency power supply
17. Excellent temperature control system
18. Trailersilent diesel generator sets are widely used as usual or standby power in fields of telecommunications, hotel buildings, entertainment venues, hospitals, shopping malls, industrial and mining enterprises which have high requirement on low voice.
Generator set Data |
Engine Data |
Brand |
|
WANDI |
Brand |
|
CUMMINS |
Model |
|
WD C1200 |
Model |
|
KTA50-GS8 |
Prime power |
KVA/KW |
1500/1200 |
Rated power(net) |
KVA |
1609 |
Standby power |
KVA/KW |
1650/1320 |
Rated power(net) |
KW |
1287 |
Frequency |
Hz |
50 |
No. of cylinder |
|
16 |
Rated voltage |
V |
400/230 |
Cycle type |
|
4 |
Rated current |
A |
2161 |
Cylinder arrangement |
|
V arrangement |
Power factor |
COS Φ |
0.8(lag) |
Aspiration type |
|
Turbocharged |
|
|
|
Combustion system |
|
water cooled |
Alternator Data |
|
|
Bore |
mm |
159 |
Brand |
|
FARADAY |
Stroke |
mm |
159 |
Model |
|
FD7B |
Displacement |
L |
50 |
Connecting type |
|
3 phase and 4 wires |
Compression ratio |
|
14.9:1 |
Excitation type |
|
brushless, self excited |
Engine oil capacity |
L |
220 |
Steady voltage regulation |
|
≤1% |
Max back pressure |
kpa |
10 |
Transient voltage regulation |
|
≤±25% |
Total coolant capacity |
L |
410 |
Frequency recovery time |
|
≤5s |
Fuel consumption |
L/H |
254 |
Protection |
|
IP23 |
Lubrication consumption |
L/H |
1.36 |
Insulation |
|
Class H |
Cooling max water temperature |
ºC |
104 |
Overload capacity |
|
≤10% |
Governor type |
|
Electronic |
|
|
|
Start mode |
|
Electronic |
|
Emission standards |
|
Europe stage II |
Dimension/weight |
|
|
|
Dimension(L*W*H) |
mm |
5000*2253*2400 |
|
Net weight |
T |
1.05 |
|
|
|
|
|
|
|
Standard Configuration: |
|
Optional Configuration: |
|
System |
Description |
|
System |
Description |
|
Engine |
Cummins |
|
Cooling sys |
Radiator(50ºC) |
|
Aspiration sys |
Air filter |
|
|
Jacket water heater |
|
|
Air restriction indicator |
|
|
Anti-condensation heater |
|
Cooling sys |
Radiator(40ºC) |
|
Exhaust sys |
Residential silencer |
|
|
Fan & belt |
|
Alternator |
Stamford alternator |
|
Exhaust sys |
Industrial silencer |
|
|
Engga alternator |
|
Fuel sys |
Fuel-water separator filter |
|
|
Marathon alternator |
|
|
Fuel filter |
|
Control module |
DSE series |
|
|
Fuel hose |
|
|
HGM series |
|
Lubrication sys |
Oil filter |
|
Circuit breaker |
ABB |
|
Alternator |
Faraday |
|
ATS |
Hanguang(WHK) |
|
Control module |
Comap MRS10 |
|
|
Aisikai (STK) |
|
Circuit breaker |
Suzhou |
|
Other |
battery charger |
|
Battery |
maintenance-free |
|
|
laminated wood packaging |
|
Other |
24V start motor |
|
|
|
|
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
