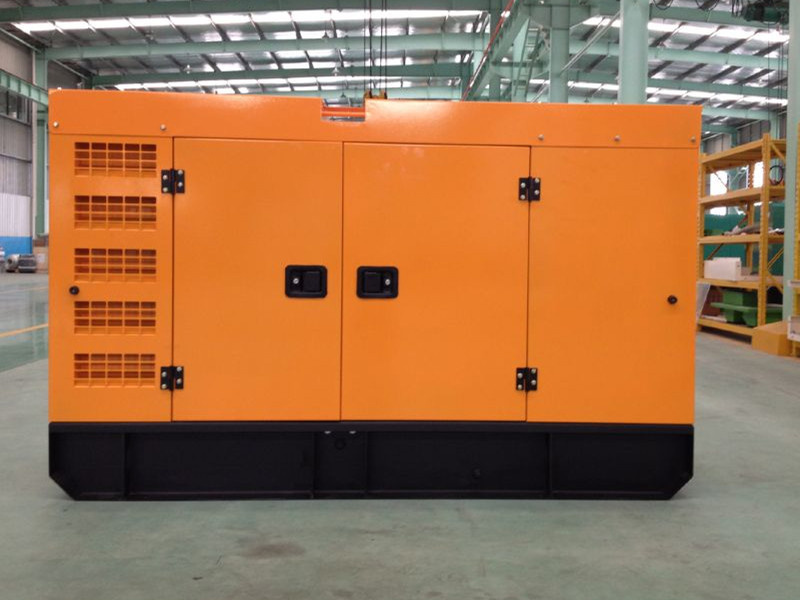

Factory Best Price Silent 20kw/25kVA Cummins Generator (4B3.9-G1) (GDC25*S)
1. Famous diesel engine - Cummins, Deutz, Perkins, Weichai, MTU, Lister Petter
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. Solid steel outer skin - 2MM to 4MM steel
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet
7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.
Genset |
Type:GDC25*S | The regulating rate of steady voltage: ≤±0.5% |
Output power:20KW/25KVA | The waving rate of voltage : ≤±0.5% |
Power factor:COSΦ=0.8(lag) | The time of steady voltage:≤1.5sec |
Rated voltage:400/230V | The regulating rate of steady frequency:≤3% |
Current:36A | The regulating rate of instantaneous frequency: ≤±5% |
Frequency:50HZ | The time of steady frequency: 3sec |
Speed:1500RPM | The waving rate of frequency: ≤0.25% |
Dimension:1650*720*1200mm | The waste of fuel with full load: 205g/kw.h |
Weight:700kg | Noise(LP7m):93dB(A) |
Diesel Engine |
Brand/Origin:Dongfeng Cummins | Cooled System:Water Cooling |
Engine Model:4B3.9-G2 | Type:Direct Injection,Four-stroke,V6-type |
Cylinder No.:4 | Rotating Speed:Electric speed regulator |
Bore*Stroke:102*120mm | Aspiration Type:Ti |
Compression Ratio:13.9:1 | Displacement:3.9L |
Starting Way:DC24Vwith electricity | Lubricating Capacity:11L |
Alternator |
Standard Brand/Origin:Copy Stamford/Jiangsu | Insulation Degree:H degree |
Type:Brushless (AVR automatic voltage regulating) | Grading Protection:IP23 |
The connecting way of the phase:Three phase four lines | Optional Brand:Stamford;Marathon,etc |
Control screen |
Brand:Harsen/Smartgen/Deepsea | Features:English interface;LED screen;Touch buttons |
Based Function: 1.Display loading power,voltage,current,frequency,speed,temperature,oil pressure,running time,etc |
2.Warning when low or high voltage,low or high frequency,over current,over or low speed,low or over battery voltage,etc |
3.Over load protection,over/under frequency protection,over/under/imbalance voltage protection and low oil shutdown. |

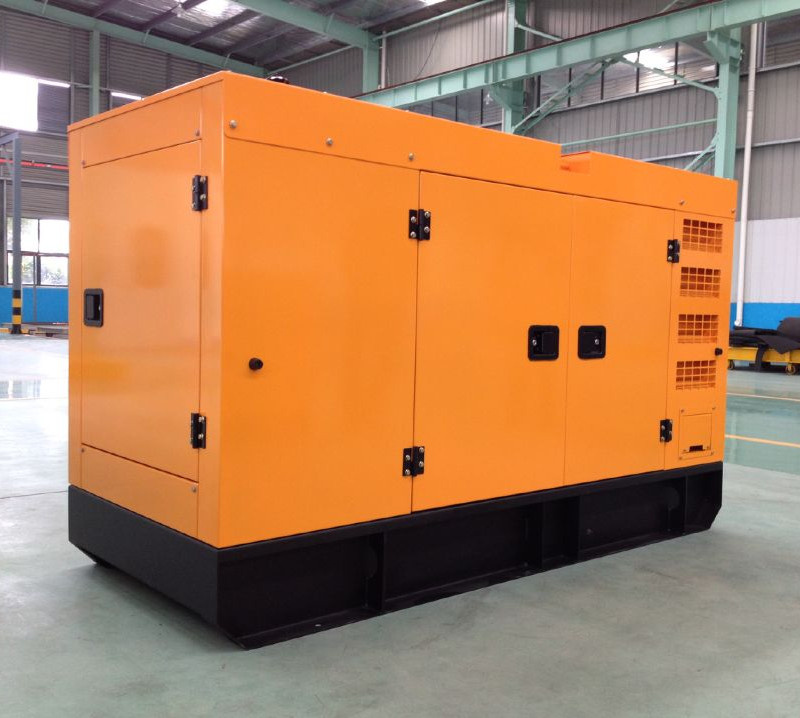

Generator photos:
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
