Home Generator Products Factory 350kVA Cummins Diesel Power Generator with CE and ISO

Factory 350kVA Cummins Diesel Power Generator with CE and ISO

Factory 350kVA Cummins Diesel Power Generator with CE and ISO
Price: US $ 20000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union

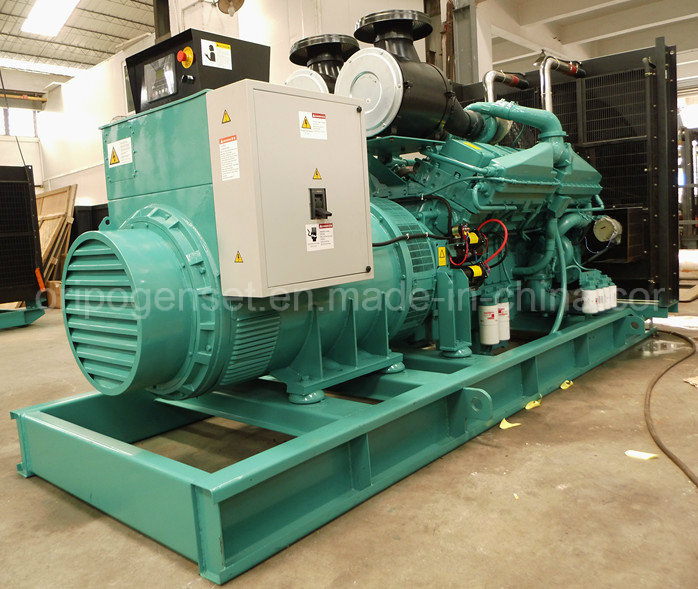

Factory 350KVA Cummins Diesel Power Generator with CE and ISO



Parameter of  electric generator: electric generators made in china

Main Technical Data of Engine



Model

NTA855-G2A

Prime Power

312KW

Governor Type

Electronic

Cylinder Type

6 cylinder in line,direct injection

Cooling Method

Water cooled

Bore × Stroke

140*152mm

Compression Ratio

17.5:1

Displacement

14L

Starting Method

DC 24V

Fuel Consumption

≤207g/kw.h

Main Technical Data of Alternator

Brand

 Stamford

Model

HCI 444E

Prime Power

350KVA/280KW

Excitation Mode

Brushless, self-exciting ,single bearing,AC synchronous

Prime Voltage

400/230V

Frequency

50HZ

Power Factor

0.8(lagging)

Phase/Wire

3 phase 4 wires

Insulation Grade

H

Protection Class

IP22


engine NTA855-G2A:


Joint-venture brand, headquarter is located in Columbus, Indiana, USA. Cooperation with China factory in Hubei and Chongqing.

Dongfeng  power range: 24kw to 220kw, Chongqing  power range: 205kw to 1384kw.

Matured technology, slight volume, large power and low noise.

Good smooth running performance. Integral module structure design, which makes the total amount of spare parts 25% less than other brand.

Global warranty service: with more than one hundred maintenance shops all over worldwide, it is very easy to find the spare parts and get technology support.





Electric AC synchronous brushless wuxi Stamford alternator :

Our standard generator set match with electricity generator head LEADTECH/Stamford, also can match it by customer request. Brushless self-exciting synchronous AC alternator.

Three phase, 12 reconnect able leads .

Stators are wound to 2/3 pitch.

tandard AVR controlled



Control system :
Smartgen 6110 & 6120 control system ,also can use other brand according to customer requirement. Such as, HGM6310, HGM6320, DSE3110, DSE5110, DSE7110 and DSE7210 and etc.
Function:high water temperature, low oil pressure, low speed and over load protection, generator over/under/unbalance voltage Protection



optional ATS(Automatic Transfer switches):
It's widely used in hospital,airport,hotel,school and other emergency power supply equipments.



Once the main power failure, the control panel will received the signal to start the genset within 5 seconds, ATS will switch to the load wires to connect genset power supply,and the whole process takes less than 15 seconds. After the main power recovered 30 seconds, ATS automatically switch the load wires to connect main power supply,the genset will stop after running 180 seconds.



Guarantee and after sale service;



Warranty:One Year or 1000 running hours, whichever comes first. with more than one hundred maintenance shops all over worldwide, it is very easy to find the spare parts and get technology support.



24hours technical support by E-mail.



testing :



All generator sets are gone through rigorous testing before being released to the market place, include 50%load,75% load,100% load,110%   load and all protection fuctions (over speed, high water temperature, low oil pressure, battery change fail, emergency stop).



Warmly welcome to our factory for visit:

  1.From Guangzhou Baiyun International airport to Oripo

a.It takes about 1 hour by car/taxi,it is about 58 kilometer

b.Or take the subway from JiChangNan station to HanXiChangLong Station(you need to transfer at the

TiYuXiLu station to PanYu direction), then take a taxi to Oripo, it will take about 1.5 hour

2.From Canton fair complex to Oripo:

a. It takes about 30 minutes by car / taxi, it is about 32 kilometer;

b. Take the subway from XinGangDong Station / PaZhou station to HanXiChangLong Station, then take a

taxi to Oripo, It will take about 1 hour.



Prod Model: OCL300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Cummins Diesel Engine
Genst Speed: 1500rpm/1800rpm
Frequency: 50Hz/60Hz
Voltage: 380V,400V,220V,415V
Current: 600A
Certificates: CE, ISO, TUV,SGS
Warranty Time: 1 Year
Type: Self-Starting Diesel Generator
Installation Method: Portable
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.

Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.

During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
