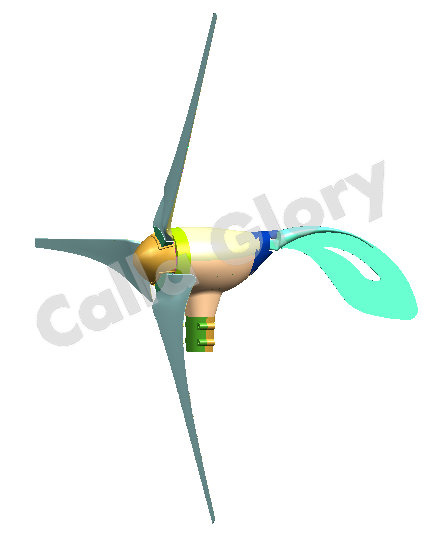

Blades made from carbon fiber, molding, and the weight less than 500g.
The whole structure made of aluminum alloy except stator and rotor of motor.
Anti-vibration measures applied to the rear of windmill, runs smoothly.
Connected to the pole with clamp, simple and reliable, do not need to match the flange.
Easy installation, only one screw be used for 3 blades installation.
Packing size(mm): 1000 x 550 x 220
|
|
EQ-400 |
EQ-600 |
EQ-1000 |
|
Rated Power |
400W |
600W |
1000W |
|
Rated Voltage(DC) |
24V |
24V |
24V/48V |
|
Rated Current(DC) |
16A |
25A |
41A/20A |
|
Rotor Diameter |
1.5m |
1.6m |
1.8m |
|
Materials of blades |
Carbon fiber composite |
Rotation Direction
(down wind) |
Clockwise |
Clockwise |
Clockwise |
|
Start-up wind speed |
2m/s |
2m/s |
2m/s |
|
Rated wind speed |
9.6m/s |
10.5m/s |
13m/s |
|
Sruvival wind speed |
45m/s |
45m/s |
45m/s |
|
Each blade weight |
0.35kg |
0.35kg |
0.5kg |
|
Gnerator weight |
18kg |
18.6kg |
19.5kg |
|
Type of Gnerator |
Permanent Magnet Synchronous Generator |
|
Number of blades |
3 |
3 |
3 |
|
Wind turbine type |
Upwind |
Upwind |
Upwind |
Calla Glory Wind Power is a wind turbine manufacturer with headquarters and main production facilities established in 1998.Calla Glory Wind Power is wholly owned by Calla Glory through the Renewable Energy division in the Calla Glory Enterprise Corporation Limited.The renewable energy constituent company is one of leading and the largest producers and exporters for Small-medium sized Wind Turbines from 300W up to 50kW.Calla Glory Wind Power is specialized high-tech enterprise engaged in independent development, design, manufacturing and sale of small wind generators which are adaptable to a global variety of wind resources and environmental conditions.
Whole-digitalized controlling system has been achieved through the appliance of ultrasonic anemoscope and dogvane in 10KW wind turbine generator, 20KW wind turbine generator, 30KW wind turbine generator and 50kW wind turbine generator developed by our company.The wind generator has been adopted low-torque starting technique with start-up wind speed 2m/s.The appliance of several new technologies contributes to the simplification of installation procedures, reduction of taking room, advancement of electric efficiency, along with enhancement of stability and security, received warm welcome from customers both domestic and aboard.
