CHINA POWER TO GO INC is a Sino-Canada joint venture which is a specialized manufacturer and supplier of quality industrial products supported by quality after-sales services. We have been exporting a great variety of generator sets and some power machinery since 1997. Our product lines cover a good variety of products including diesel or gasoline powered generator sets, water pump sets, general purpose air cooled and water-cooled engines, small & medium size agricultural machinery, recreational ATV, snow blowers, grass mowers and other power machinery made in China.
We always strive to provide our customers with the most competitive prices without reducing any aspect of the products' quality. By close Work and fine services with our domestic and overseas customers, we take good care of their concrete requirements for competitive pricing, top quality, on-time delivery and environmental friendly attention, based on long-term strategic mutual benefit cooperation relationship.
Our core management philosophy is to develop and maintain long-term friendly relationship with our old and new customers, on basis of honesty, open communication, and full loyalty to our customers. The key to our success is deep understanding to our customers'particular needs in all aspects of our products and services and catching up with customers' demands for a frequently changing marketplace. We would treat our customers in the way we would like to be treated.
You are warmly welcome to contact us for more information about our products lines and services.
We look forward to your kind enquires, questions and comments on our websites at any time with your pleasure.

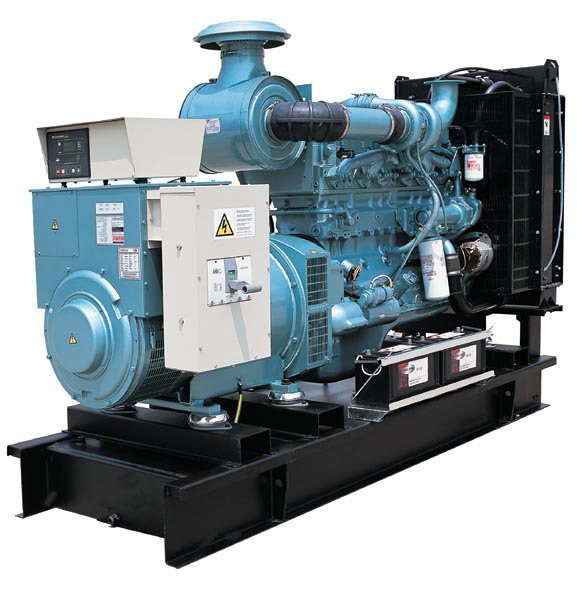

SPECIFICATION OF 10-20Kw DIESEL GENERATOR with EPA approvals
WITH EPA APPROVAL
Model of Engine: YD385D /YD485D /TY395E
Type: Vertical, water-cooled, four-stocke, vortex
Number of cylinders: 3/4
Bore(mm): 85; 95
Stroke(mm): 90; 115
Compression ratio: 22: 1
Total displacement(L): 1.532, 2.043; 2.233
Firing order: 1-3-4-2
Rated power(12h, KW): 21
Rated speed(r/min): 1800
Max. Torque(N. M): More than 112
Max. Specific fuel consumption at full load(g/kW. H): Less than 267.9 / 245
Specific lube oilconsumption(g/kw. H): 2.72; 2.65
Advance angle of supply fuel/speed(before TDC)()/r/min: 10? /3000(with Advance Device) 18? /2800 16? /2600 15? /2400
Injection Pressure: 13.2? . 5
Direction of crankshaft rotation(facing to flywheel): Counterclockwise
Cooling method: Forced water Cooled by radiator
Starting method: Electric
Model of alternator: ST-15 brush or TFW-15 /20 brushless
Rated power: 10Kw, 12kw, 15KW /18Kw
Rated voltage: 120/240V; 120/208; 220/380V; 230/400V
Rated current: 50A, 62.5 /75 A
Rated frequency: 60Hz/50Hz
Rated speed(r/min): 1800/1500 r/min
Power factor: 1 or 0.8
Phase connection: 1 or 3
Winding Connection: 3 or 4 -wire
Exciation: Brush or brushless
Insulation class: B or F(for TFW-10/12/15/20KW Brushless)
Voltage regulation metho: AVR
Steady-state-voltage: IP23
Control Panel
V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, light, 4 protections, etc.
Net mass(kg): 420; 450; 500
Overall dimensions(LxWxH)(m): 1.50*0.70*0.98; 1.85*0.85*1.02
China Power Togo Inc. is a Sino-Canada joint venture which is a specialized manufacturer and supplier of quality industrial products supported by quality after-sales services. We have been exporting a great variety of generator sets tractors, solo type sprayers and some power and household machinery since 1997. Our product lines cover a good variety of products, including diesel or gasoline powered generator sets, solo sprayers, tractors, water pump sets, general purpose air cooled and water-cooled engines, small & medium size agricultural machinery, recreational ATV, snow blowers, grass mowers and other power machinery made in China.
We always strive to provide our customers with the most competitive prices, instead of reducing any aspect of the products' quality. By close Work and fine services with our domestic and overseas customers, we take good care of their concrete requirements for competitive pricing, top quality, on-time delivery and environmental friendly attention, based on long-term strategic mutual benefit cooperation relationship.
Our core management philosophy is to develop and maintain long-term friendly relationship with our old and new customers, on basis of honesty, open-minded communications, and full loyalty to our customers. The key to our success is deep understanding to our customers' particular needs in all aspects of our products and services and well catching up with our customers' concrete demands for a frequently changing marketplace in today's globe. We would treat our customers in the way we would like to be treated.
You are warmly welcome to contact us for more information about our products' lines and services. We are looking forward to your kind constructive enquires, questions and comments on our website shown products at any time with your pleasure.
