Full lines of EPA approval diesels power Products Descriptions:
5 -6Kw air-cooled EPA approval diesel gensets in open or quiet type;
Specification of 8-20kw Chinese diesel generators with EPA approvals:
Model of gen-set 8GF(rated 8kw) 10GF(10kw)
Model of engine YD385D
Type: Vertical, water-cooling, four-stroke, vertical,
Number of cylinders 3 3
Bore(mm): 85
Stroke (mm): 90
Compression ratio: 22: 1
Total displacement(l): 1.532
Rated power(12h, kw): 9.07 11.33
Rated speed(r/min): 1800 1800
Cooling method forced water cooling
Starting method electric electric
Model of alternator st-8 or tfw-10 st-10 or tfw-10
Rated power: 8kw, 10kw, 12kw
Rated voltage: 120/240v 120/208, 230/400
Rated current: 33.3 41.6
Rated frequency: 60hz 60hz
Rated speed(r/min): 1800r/min 1800r/min
Power factor: 1 or 0.8 1 or 0.8
Phase connection: 1 or 3 1 or 3
Winding connection: 3 or 4 -wire 3 or 4 -wire
Voltage regulation method AVR AVR
Steady-state-voltage: IP23 IP23
Control panel: V-meter, a-meter, frequency meter, circuit breaker, transfer v-meter, a-meter, frequency meter, circuit breaker, transfer
Switch, light, etc. Switch, light, etc.
Specification of rated 8-18kw diesel generator:
With EPA approval diesels
Model of gen-set 12kw 15kw, 20Kw
Model of engine YD385D YD485D, TY395E Chinese diesels
Type vertical, water-cooling, four-stocke, vertical vertical, water-cooling, four-stocke, vertical
Number of cylinders: 3 4
Bore(mm): 85 85 95
Stroke (mm): 90 90 115
Compression ratio: 22: 1 22: 1
Total displacement(l): 1.532 2.043 2.233
Rated power(12h, kw): 13.6 21
Rated speed(r/min): 1800 1800 1800
Max. Specific fuel consumption at full load(g/kw. H): Less than 247.9; 245
Specific lube oilconsumption(g/kw. H): 2.72 2.72 2.65
Direction of crankshaft rotation(facing to flywheel) counterclockwise counterclockwise
Cooling method forced water cooling forced water cooling
Starting method electric electric
Model of alternator ST-12 or TFW-12; ST-15 or TFW-15-4P; ST-20 brush a; Ternators or TFW-20-4P brushless alternator
Rated power: 12kw, 15kw, 18Kw
Rated voltage: 120/240v, 120/208, 230/400
Rated current: 50A, 62.5A, 75A
Rated frequency 60hz, 60hz, 60Hz
Rated speed(r/min) 1800r/min 1800r/min
Power factor: 1 or 0.8; 1 or 0.8
Phase connection: 1 or 3; 1 or 3
Winding connection: 3 or 4-wire; 3 or 4-wire
Exciation brush or brushless; Brush or brushless
Insulation class B or F(for TFW-12kw brushless) B or F(for TFW-15kw brushless) B or F(for TFW-20Kw brushless)
Voltage regulation method: AVR AVR AVR
Steady-state-voltage IP23 IP23 IP23
Control panel V-meter, A-meter, frequency meter, circuit breaker, transfer V-meter, A-meter, frequency meter, circuit breaker, transfer switch
Switch, light, etc. Switch, light, etc, Hour meter, 4 protections devices.
EPA Shanghai brand diesels 295/2100/395/495/4100AD or AZD powered gensets in open or silent at rated 10-30Kw available.
EPA approval Tongxing brand Ricardo style diesel R4105ZD powered gensets in open or silent types at rated output 40-50Kw /60Hz, 1800RPM available right now

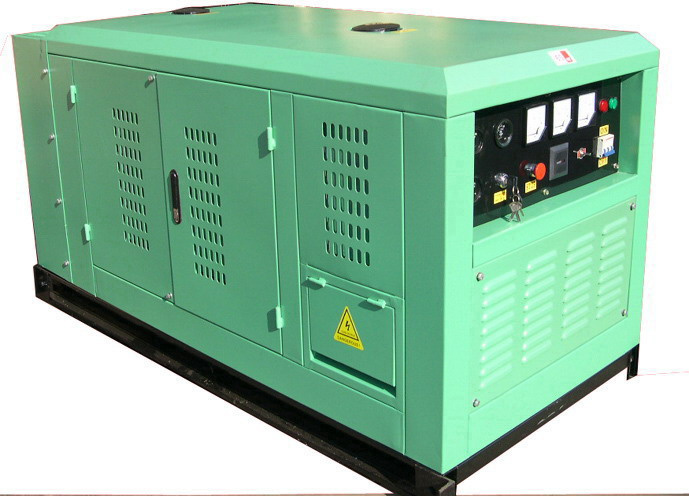

All the EPA diesel gensets can be with STD control panel with all meters and gauges and electric key start, or with fully automatic start control panel with both ATS and AMF controller, at your option
