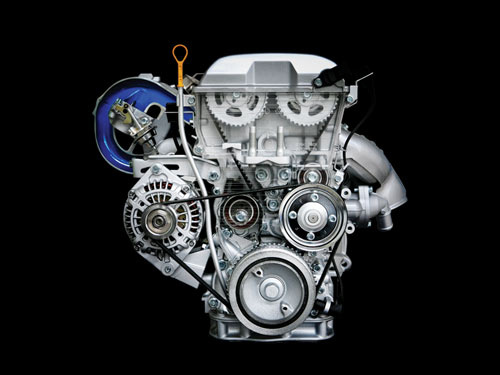

Haima's HM483Q is a water-cooled and four-stroke gasoline engine featuring in light weight, low fuel consumption, quietness and low vibration, low emission, good heat rejection, excellent reliability and long lifetime. Aiming to safeguard its quality and performance, HM483Q adopts the ECU with PCM integration, and engine-immobilizer anti-theft system, with manufacturing machinery and equipment of HEELER of Germany & COMAU France.
The HM483Q gasoline engine is desingned to guarantee its excellent performance and outstanding reliability in the course of its service lifetime. It meets the requirements of current state laws and regulations as well as consumer's request for better engines. Meanwhile, its fuel consumption level is within the second stage limit by the State policy for passenger vehicles and can be upgraded to reach the Euro IV emission standard.
Main Technical Data
Model: HM483Q
Type: In-line 4-cylinder, four-stroke, water-cooled, DOHC, timing-teech belt drive
Number of Cylinders: 4
Number of Valves: 16
Combustion Chamber Type: Pent-roof combustion chamber
Fuel Injection: Sequential electronic multi-point fuel injection
Displacement(cc): 1839
Bore*Stroke(mm): 83*85
Compression Ratio: 9.7
Max. Output(kw/rpm): 90/6000
Max. Torque(Nm/rpm): 160/4000
Dimension(L*W*H): 574.0*632.4*629.9
Net Weight(kg): 133
Emission: Potential to Euro IV
Recommended Fuel(Gasoline): Above 93# unleaded gasoline
FAW Haima Automobile Co., Ltd. is located in Jinpan Industrial Development Area of Haikou city, covering total land area of 2800mu. The last almost two decades has witnessed the development of Haima Automobile into a larger scale passenger vehicle manufacturing firm with domestically leading manufacturing facilities and processes of stamping, welding, painting and final assembling for the annual production capacity of 150, 000 units. Currently, there are totally 3, 000 employees working for Haima and another around 15, 000 employees working for associated companies including Haima's scales networks and suppliers.
With the total investment of 1.2 billion RMB, Haima's engine project covers an area of 27, 000 square meters. The engine plant is installed with world-class manufacturing equipment for cylinder block, cylinder head, crack shaft, and assembling and heat testing, which are introduced from HELLER(Germany), COMAU(France)and other well-known companies. The production lines are flexible for 1.6Land2.0L engines, in addition to 1.8L engine.
Haima's Shanghai R&D Center, with state-of-the-art facilities for styling, design, prototyping, testing and talented design team, is capable of carrying out the development of complete vehicle, through the cooperation with Mazda in the fields of product and techinology. Up to now, the strategic cooperative ties with local universities and professional auto design institutions both home and abroad have been set up, making a jiont automobile development team for Haima brand product development strategy.
