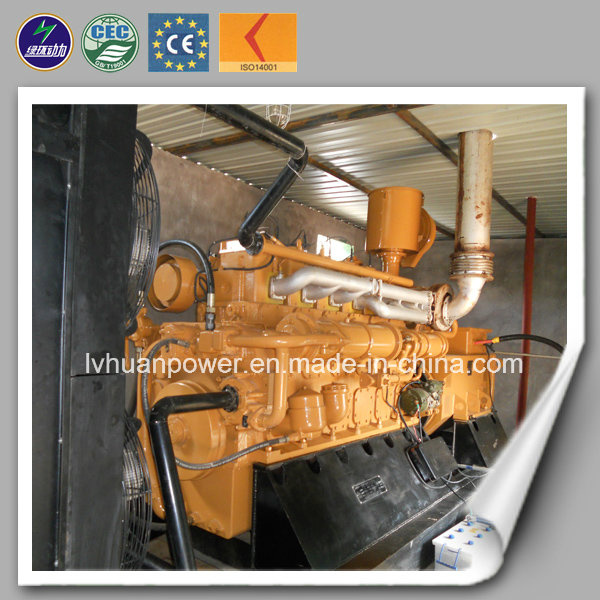

Electrical Biogas Power Generator (LHBG)

Electrical Biogas Power Generator (LHBG)
Price: US $ 8380/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Biogas generator

Worksite requirements for biogas generator

The worksite needs to meet following basic requirements:
A) Ambient temperature between -40º C~45º C;
B) Relative humidity less than 90%(35º C);
C) Site elevation not higher than 2000m;
D) For outdoor installation, simple rain shelter is required.

The engine is high, /low temperature cycle requires the use of softened water. Cooling water should be used in slightly alkaline cleaning water, not compounds containing corrosive, such as chlorides, sulphates or acid etc...Its main index requirements are as follows:
Hardness: 0.7~5.3me/L; Chloride ion content: <150mg/L; PH≤ 7~8.5

Fuel gas required for biogas generator

The genset will be able to output at its full power with fuel gas with the specification as below:
1m distance away from genset's pressure regulating valve of inlet
Temperature of natural gas ≤ 40º C;
Pressure of natural gas 3~20kPa, velocity of pressure≤ 1kPa/min;
H2S≤ 200mg/Nm3;
NH3≤ 20mg/Nm3
The ratio of CH4 in biogas not less than 45%, changing rate≤ 2%/min
Impurities particle size≤ 5μ M; Impurity content≤ 30mg/Nm3;
Moisture Content of biomass ≤ 40g/Nm3;

If fuel gas contains higher quantity of sulfur and ammonia, it not only corrodes the pole of spark plug seriously, but also increases the acid value, which corrodes internal parts of genset and corrodes the genset with precipitates.

Why you chioce Shandong Lvhuan Power equipment Co., Ltd. Biogas generator?
1. Over 15 years produced gas/diesel generator experience;

2. Main including diesel engines, biomass generator sets, natural gas generator sets, biogas
Generator sets, coal mine gas generator set, etc. Products arrange from 5kw-3000kw;

3. Our workshop covering more than 40000 square meters, techincal engineer and after-service
More than 100 person.

4. CE, ISO9001: 2008, ISO2001: 1400 etc. Certificats approve and passed many patents.

5. Export many countries in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia, Philippine,
Indonesia, and with some Africa countries etc.

6. We have some cooperatival partners: Like water removal system, H2S removal system, gasified
Equipment, recovery system exhaust heat, CCHP system etc. So can offer you complete project proposal if you like.

7.15 years service life.

Biogas generator Service
1. Pre-sale service:

(1)We will send our engineer to prospect the site of power station free to charge.

(2)According to the situation of site we can supply you many drawings like power station floor plan,
Engineering flow sheet of circle cooling system, genset installation, genset foundation, electrical connection and some other techincal support etc.

2. Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.

(2)We will debug the generator set till it can generate power successfully.

(3)We will also supply a technical training to the operators. Or you can send your staff to our company. We can train you till you can operate the generator set.

3. After-sale service:
(1)Our engineers are in charge of different area, we will response periodically and support
You technical service free of charge.

(2)For the quality problem, we will service for you free of charge during the guarantee period.

(3)One year guarantee period and lifetime service.

(4)we solve quality problem in time when genset doesn't work, We insure to help our clients to gain the biggest economic profit.



Model 4190ZL 12V190ZLDZ-2 12V190Z-2 12V190ZLZ
Code 114LZ 1012CZ 1112CZ 1812Z
Type 4 stroke, sparkle ignition, water-cooled and non-turbocharged 4 stroke, spark ignition, water-cooled, turbocharged, inter cooling, pre-combustion chamber 4 stroke, spark ignition, water-cooled and non-turbocharged, pre-combustion chamber 4 stroke, spark ignition, water-cooled, turbocharged, inter cooling
Mixing type External-mixed Mechanical inter-mixed
Arrangement of cylinders In-line V shape, 60° angle
Number of cylinders 4 12
Diameter of cylinders 190 mm
Stroke 210 mm
Rated rev 1500 r/min 1000 r/min 1500 r/min
Idle speed 700 r/min
Rated power 190 kW 500 kW 450 kW 660 kW
Exhaust temperature ≤650°C(before entering turbine)
Heat consumption ≤11340 kJ/kw@h
Oil consumption ≤1.6g/kw.h
Start mode Pneumatic/electric starting  24DC starting
Overhaul time ≥18000h


Technical Specs and Performances of Biogas Generating Set:
Generating set model 150GF-NK 450GF1-NK 400GF1-NK 600GF-NK
Engine model 4190Z1 12V190ZLDZ-2 12V190Z-2 12V190ZLZ
Excitation Brushless phase compound excitation(three-phase four-wire)automatic voltage regulation, F class insulation
Rated power 150 kW 450 kW 400 kW 600 kW
Rated voltage 400V
Rated rev 1500 r/min 1000 r/min 1500 r/min
Rated current 270A 819 A 728 A 1082 A
Power factor 0.8(lagging)
Starting mode 24DC starting
Cooling water system Open type with heat exchanger
Overhaul time ≥18000h

Prod Model: LHBG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 380V/220V
Frequency: 50Hz/60Hz
Fuel: Biogas
Heat Consumption: 9.8mj/Kw.H
Speed: 1000 or 1200r/Min
Color: Customized
Gas Source: Biogas
Power: 20kw-600kw
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
