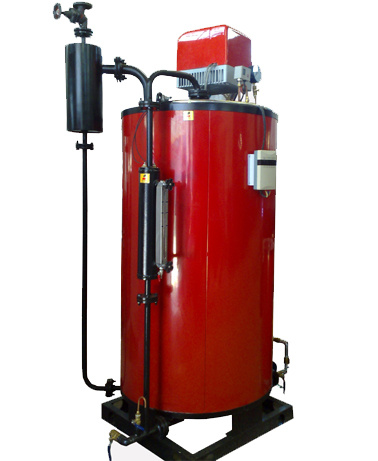

Electric Steam Boiler/Generator for Food Machine, Washing Machine

1. All control section on the computer console make up intelligent control system, only gently push one key and make the boiler to automatic running state.

2. There is vapour-water separation in the pressure vessel, it could solve the problem of steam with water and insure the high-quality steam same time.

3. The boiler has overpressure protection, leakage protection, water-level protection.

4. The power is Electric Energy, it is environmental and No-pollution.

5. Heat preservation material is very efficient, it could ensure the lower heat losing so that the thermal efficiency of 98%.

Automatic Electricity Steam Boiler:

Model
Rated Voltage(V)
Rated Power(KW)
Rated Caloric(Kcal/h)
Rated Capacity(KG/H)
Temperature(° C)
Rated Pressure(Mpa)
Dimension(L*W*Hmm)

LDR0.063-0.7
380
45
38700
63
170
0.7
960*760*1480

LDR0.077-0.7
380
54
46440
77
170
0.7
1060*760*1680

LDR0.086-0.7
380
60
51600
86
170
0.7
1060*760*1680

LDR0.10-0.7
380
72
61920
103
170
0.7
1060*760*1680

LDR0.12-0.7
380
90
77400
129
170
0.7
1460*1120*2140

LDR0.15-0.7
380
108
92880
154
170
0.7
1460*1120*2140

LDR0.20-0.7
380
150
129000
215
170
0.7
1530*1300*2340

LDR0.25-0.7
380
180
154800
258
170
0.7
1530*1300*2340

LDR0.30-0.7
380
210
180600
300
170
0.7
1530*1300*2340

LDR0.43-0.7
380
300
258000
430
170
0.7
1680*1460*2570

LDR0.50-0.7
380
360
309600
516
170
0.7
1680*1460*2570
