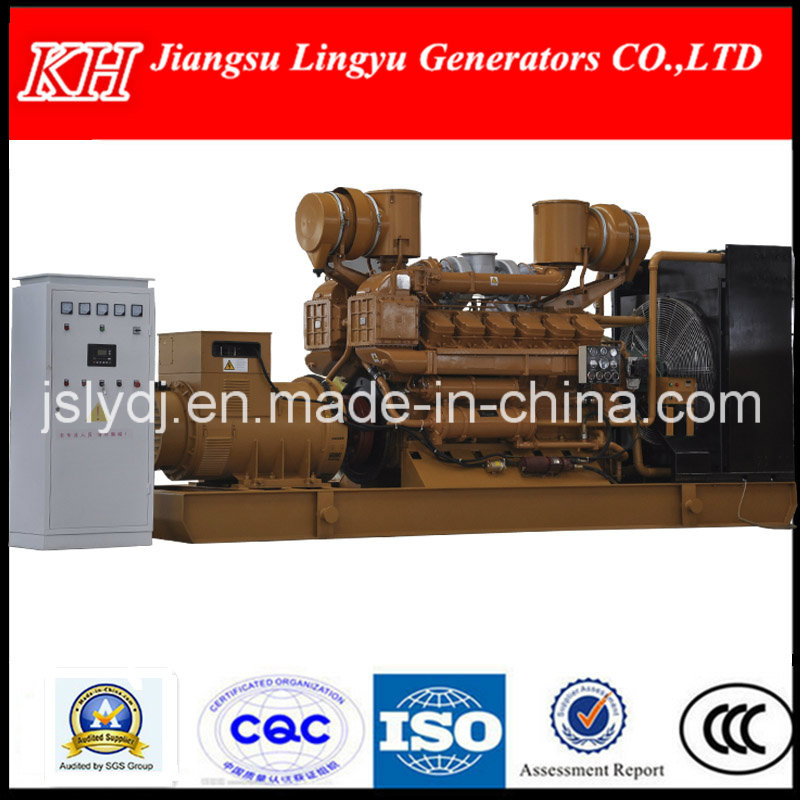

Electric Starter Diesel Generator with ATS 1000kw or 1250kVA

Packaging & Delivery


Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit

Specifications

1)manufacturer
2)open type/silent/trailer
3)global warranty
4)CE,ISO,SGS,SONCAP,OEM
5)in stock
Reliable manufacturer !!! CE approved  10KVA-1000KVA generator with Shangchi/Cummins/ Deutz/RicardoVolvo /MTU and so on brands

Product Description
The specification of  power generator :
1. power generator powered by Shangchai diesel engines respectively in China.
2. power generator equipped with famous alternators.
3. power generator strict tests before sale.
4. power generator features at low oil consumption, stable performance, easy maintenance, low operation cost, low emission.


Genset model	KH
Type	open/sound proof/weather proof
Genset output power range	50kw-700kw
Rated voltage	220/380V,230/400V,240/415V,120/240V
Frequency	50/60HZ
Power factor	0.8
Rated speed	1500/1800rpm
output type	AC three phase/single phase
Motor	brushless
Frequency	<3%
Frequency at stable state:	<0.5%
Frequency deviation at instantaneous state	≤+10%
Frequency return time	≤3s
Voltage deviation at stable state	≤±1%
Voltage deviation at instantaneous state	≤+20%
Voltage return time	≤4s
Voltage modulation	≤0.3%



diesel genset			diesel engine		alternator
model	power(kW)	power(kVA)	model	power(kW)	model	power(kW)
KH50GF	50	62.5	SC4H95D2	68	KHI50-14	50
KH75GF	75	93.75	SC4H115D2	86	KHI75-14	70
KH100GF	100	125	SC4H160D2	116	KHI100-14	96
KH120GF	120	150	SC4H180D2	132	KH120-14	112
KH150GF	150	187.5	SC7H230D2	170	KHI50-14	144
KH160GF	160	200	SC7H250D2	185	KHI160-14	144
KH200GF	200	250	SC9D340D2	250	KHI200-14	180
KH140GF	140	175	SC8D220D2	160	KHI140-14	128
KH160GF	160	200	SC8D250D2	185	KHI160-14	144
KH180GF	180	225	SC8D280D2	204	KHI180-14	160
KH200GF	200	250	SC9D310D2	228	KHI200-14	180
KH250GF	250	312.5	SC9D340D2	255	KHI250-14	200
KH300GF	300	375	SC12E460D2	338	KHI300-14	250
KH200GF	200	250	SC13G280D2	206	KHI200-14	180
KH200GF	200	250	SC13G310D2	227	KHI200-14	180
KH250GF	250	312.5	SC13G355D2	260	KHI250-14	200
KH300GF	300	375	SC13G420D2	308	KHI300-14	280
KH350GF	350	437.5	SC15G500D2	373	KHI350-14	320
KH400GF	400	500	SC25G610D2	445	KHI400-14	360
KH500GF	500	625	SC25G690D2	505	KHI500-14	450
KH550GF	550	687.5	SC27G755D2	555	KHI550-14	500
KH555GF	555	693.75	SC27G830D2	662	KHI555-14	550
KH640GF	640	800	SC33W990D2	726	KHI640-14	600

The specification of Shangchai diesel engine:

Model	SC4H95D2, SC4H115D2, SC4H160D2, SC4H180D2, SC7H230D2, SC7H250D2 , SC8D280D2 SC9D310D2, SC9D340D2, SC8D220D2, SC8D250D2 , SC8D280D2, SC9D310D2, SC9D340D2, SC12E460D2, SC13G280D2, SC13G310D2, SC13G355D2, SC13G420D2, SC15G500D2, SC25G610D2 SC25G690D2 SC27G755D2 SC27G830D2 SC33W990D2
Cooling Method	water cooled
Rotating speed	1500/1800rpm
Governor system	electrical or mechanical governor
Aspiration mode	natural aspirated or turbocharged
Starting method	12/24V DC electric starting
Stroke	4 stroke

The specification of alternator:




Brand	Stamford, Leroy semor, Maraton etc.
Regulator	AVR automatic voltage regulating
Excite type	pret or shunt
Connecting type	3PH star, 3PH-DELTA
Steady frequency change	0-5%
No load voltage	≥95%-105
Steady voltage	≤±1
Insulation degree	H degree
Exclosure degree	IP23

power generator features:
1. Shangchai industrial diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, fuel filter, oil filter
7. Mould case circuit breaker
8. 24V DC start motor and storage battery
9. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
power generator use of safety norms
1.Operators sould be familiar with the operation of generating units, operating methods, and all control bodies, manual valves, stopping body position.
2.In the engine room or near the unit, must hoisting of danger notices warning signs associated personnel:
(1)Uints exist electric shocks danger;
(2)Uints exist scald danger;
(3)Units exist winding, and collision dangers;
3.To avoid fuel, lubricants, and other fire, engine room No smoking.
4.Engine room or other nearest shouldmaintain an appropriate level of fire service equipment (proposed CO2 fire extinguishers).
5.Grounding the entire unit reliably, and meet the applicable requirements of neutral grounding.
6.Above and around the unit should not be unrelated equipment, obstructions and dangerous goods, should be keeping the floor dry and clean without oil.
7.Units will be run by noise, suggest that the staff wear suitable protective equipment, such as earmuffs vehicles.
8.Before any maintenance, must cut off all power lines, particularly the Dcpower supply circuit (remove the battery's anode and cathode), the warning signs must also note "is maintenance", and should have another concern, especially in the narrow region maintenance at the same time should be nitified stop all of this unit operation.
9.To the reliable operation of unit, the settings of unit voltage, frequency, speed and other related parameters and unit controller set up should not be arbitrarily changed except the specialized operators.
10.Units are valuable equipment, for personal safety, operation stability to light, no illegal operation and drink operation.
