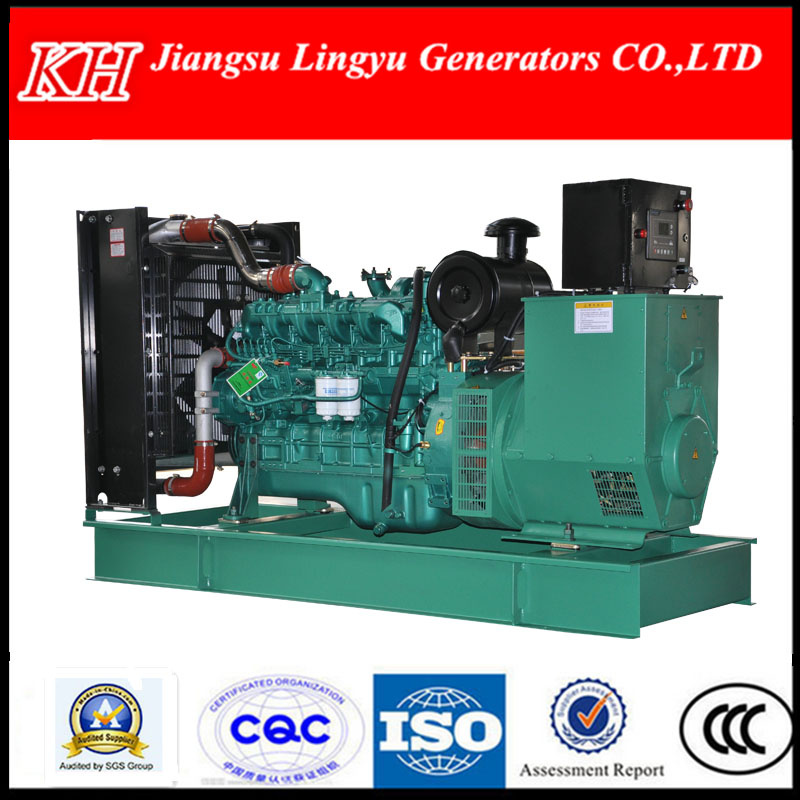

Electric Starter Diesel Generator Factory Price

Packaging & Delivery


Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit

Specifications

1)manufacturer
2)open type/silent/trailer
3)global warranty
4)CE,ISO,SGS,SONCAP,OEM
5)in stock
Reliable manufacturer !!! CE approved  8KVA-2500KVA generator with cummins/ Yuchai/Deutz/Ricardo/Volvo and so on brands

Product Description

The specification of  power generator :
1. power generator powered by Yuchai diesel engines respectively in China.
2. power generator equipped with famous alternators.
3. power generator strict tests before sale.
4. power generator features at low oil consumption, stable performance, easy maintenance, low operation cost, low emission.


Genset model	LY
Type	open/sound proof/weather proof
Genset output power range	20-800kw
Rated voltage	220/380V,230/400V,240/415V,120/240V
Frequency	50/60HZ
Power factor	0.8
Rated speed	1500/1800rpm
output type	AC three phase/single phase
Motor	brushless
Frequency	<3%
Frequency at stable state:	<0.5%
Frequency deviation at instantaneous state	≤+10%
Frequency return time	≤3s
Voltage deviation at stable state	≤±1%
Voltage deviation at instantaneous state	≤+20%
Voltage return time	≤4s
Voltage modulation	≤0.3%



The specification of Yuchai diesel engine:



diesel genset			diesel engine		alternator
model	power(kW)	power(kVA)	model	power(kW)	model	power(kW)
KH20GF	20	25	YC2115D	27	KHI20-14	18
KH30GF	30	37.5	YC2115ZD	33	KHI30-14	25
KH40GF	40	50	YC40D60-21	44	KHI40-14	34
KH50GF	50	62.5	YC4D85Z-D20	60.5	KHI50-14	40
KH70GF	70	87.5	YC6B100-D20	73.5	KHI70-14	58
KH90GF	90	112.5	YC6B135Z-D20	99	KHI90-14	80
KH100GF	100	125	YC6B155L-D21	113	KHI100-14	96
KH120GF	120	150	YC6B180L-D20	132	KHI120-14	112
KH140GF	140	175	YC6A200L-D20	145	KHI140-14	128
KH150GF	150	187.5	YC6A230L-D20	170.5	KHI150-14	144
KH200GF	200	250	YC6M285L-D20	211.2	KHI200-14	180
KH250GF	250	312.5	YC6M350L-D20	258.5	KHI250-14	240
KH280GF	280	350	YC6MK390L-D21	286	KHI280-14	250
KH300GF	300	375	YC6MK420L-D20	309	KHI300-14	280
KH320GF	320	400	YC6MJ480L-D20	352	KHI320-14	300
KH400GF	400	500	YC6T550L-D21	405	KHI400-14	360
KH400GF	400	500	YC6T600L-D22	441	KHI400-14	360
KH460GF	460	575	YC6T660L-D20	485	KHI460-14	400
KH500GF	500	625	YC6T700L-D20	515	KHI500-14	450
KH700GF	700	875	YC6C1020L-D20	748	KHI700-14	600
KH800GF	800	1000	YC6C1170L-D20	858	KHI800-14	728

The specification of  Yuchai diesel engine:

Model	YC2115D, YC2115ZD, YC40D60-21, YC4D85Z-D20, YC6B100-D20, YC6B135Z-D20 , YC6B155L-D21 YC6B180L-D20, YC6A200L-D20, YC6A230L-D20, YC6M285L-D20 ,YC6M350L-D20, YC6MK390L-D21, YC6MK420L-D20, YC6MJ480L-D20, YC6T550L-D21, YC6T600L-D22, YC6T660L-D20, YC6T700L-D20, YC6C1020L-D20, YC6C1170L-D20
Cooling Method	water cooled
Rotating speed	1500/1800rpm
Governor system	electrical or mechanical governor
Aspiration mode	natural aspirated or turbocharged
Starting method	12/24V DC electric starting
Stroke	4 stroke


The specification of alternator:



Brand	Stamford, Leroy semor, Maraton etc.
Regulator	AVR automatic voltage regulating
Excite type	pret or shunt
Connecting type	3PH star, 3PH-DELTA
Steady frequency change	0-5%
No load voltage	≥95%-105
Steady voltage	≤±1
Insulation degree	H degree
Exclosure degree	IP23

power generator features:
1. Yuchai industrial diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, fuel filter, oil filter
7. Mould case circuit breaker
8. 24V DC start motor and storage battery
9. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
power generator use of safety norms
1.Operators sould be familiar with the operation of generating units, operating methods, and all control bodies, manual valves, stopping body position.
2.In the engine room or near the unit, must hoisting of danger notices warning signs associated personnel:
(1)Uints exist electric shocks danger;
(2)Uints exist scald danger;
(3)Units exist winding, and collision dangers;
3.To avoid fuel, lubricants, and other fire, engine room No smoking.
4.Engine room or other nearest shouldmaintain an appropriate level of fire service equipment (proposed CO2 fire extinguishers).
5.Grounding the entire unit reliably, and meet the applicable requirements of neutral grounding.
6.Above and around the unit should not be unrelated equipment, obstructions and dangerous goods, should be keeping the floor dry and clean without oil.
7.Units will be run by noise, suggest that the staff wear suitable protective equipment, such as earmuffs vehicles.
8.Before any maintenance, must cut off all power lines, particularly the Dcpower supply circuit (remove the battery's anode and cathode), the warning signs must also note "is maintenance", and should have another concern, especially in the narrow region maintenance at the same time should be nitified stop all of this unit operation.
9.To the reliable operation of unit, the settings of unit voltage, frequency, speed and other related parameters and unit controller set up should not be arbitrarily changed except the specialized operators.
10.Units are valuable equipment, for personal safety, operation stability to light, no illegal operation and drink operation.

Plywood packing case,fumigation-free  .
Shipping :Not more than 7days since get full payment in Shanghai Port .
Best quality  Best service with Competitive price
Start your internet business with us here
The best power support for your future life

? Guarantee/Warranty And After-sale Service

? one year guarantee for whole machine except of tube and lens,yes
? 24 hours technical support by e-mail,yes
? calling or door-to-door service,yes

? use-friendly English software,user manual and detailed Videos/CD,yes
