Power GenerationDiesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins,Deutz,WeiChai,Yangdong,Quanchai,ISUZU etc.
Generator with alternator: Stamford,Marathon,Leroy Somer etc.
Rated output: 5KVA - 2000KVA
Rated frequency 50/60 HZ
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel

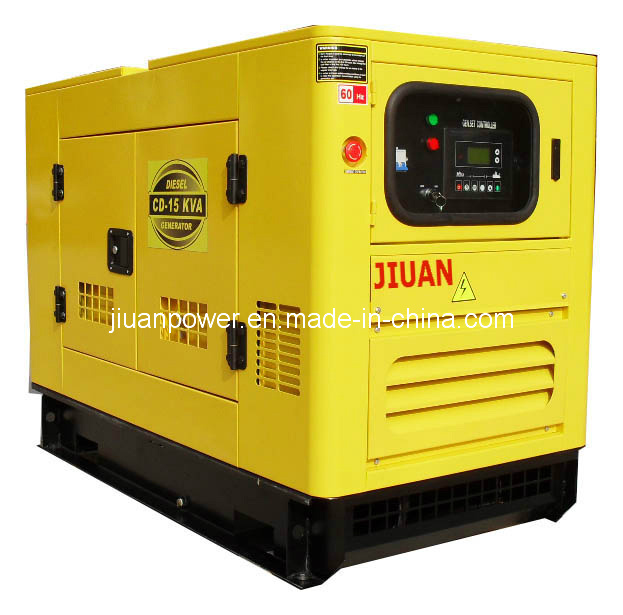

Advantage of JIUAN Cummins Generator 15KVA :
- Maximum 15.0 kVA 380 Volts, @50hz, 1500rpm
- AVR delivers non fluctuating power
- Panel type digital control panel
- 12 Volt / 24 Volt electric starter ensures easy starting
- Low oil pressure shut down system
- Low fuel cut out protection
- Low water cut out engine protection
- Enclosed structure ensures quieter operation
- Alternator (Dynamo) excitation mode brushless self excitation
- Three-phase output meets differing requirements
- Four Cylinder, four stroke, water cooled diesel engine
- 8 hours running @ full load on a single tank of fuel
- Dual access doors for easy maintenance
- Optional automatic or manual transfer switches available
- ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
- Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
- Noise Level (dBA @ 7m)
- All ratings are at sea level
After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 40KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
More Diesel Generator Details:
Power Generation
Model |
CDY15KVA |
|
Power |
15kva |
|
Generator Powered by Yangdong Engine |
|
Diesel Engine Model |
YD485G |
|
Engine Characters |
Water-cooled, in line, 4-cycle, direct injection, 1500rpm |
|
Bore x Stroke (mm) |
85x95 |
|
Rated Output |
17kw/21kva |
|
Fuel Consumption (g/kw.hr) |
262 |
|
Lube Consumption (g/kw.hr) |
2.72 |
|
Compression Ratio |
18 |
|
Starting |
Electric (12V) |
|
ALTERNATOR MODEL |
Stamford copy 164D |
|
Rated Power |
12kw/15kva |
|
Voltage (V) |
220/380 240 |
|
Current (A) |
21 |
|
Frequency (Hz) |
50 |
|
Power Factor (cos) |
0.8 |
|
Brush/Brushless |
Brushless |
|
Dimensions (LxWxH) mm |
S: 1700x960x1060 |
|
Gross Weight (KGS) |
600 |
|
20FT |
12 PCS |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
