Electric Generator Solar Power Generator 5000W

Electric Generator Solar Power Generator 5000W
Price: US $ 660/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Name: electric generator solar power generator 5000W

1.Pure sine wave output

2.CPU control technology; SCM control
3.Strong ability of impact resistance
4.Wide input voltage range: 90-280V; Four step AVR (three step boost, one step reduction voltage)
5.Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
6.Anti reverse connection protection and high-low voltage protection(option)
7.Special overload protection: When it is overload, it will lock the unit automatically, when it restores, it will restart the unit automatically again.
8.Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.
9.Powerful charge current
10.LED or LCD display (option)
11.Meet the need of different power supply
12.Use MOSFET and IGBT
Protect function:
1. Lack-voltage alarm protection
2. Low-voltage protection
3. Over voltage protection
4. Over load protection
5. Short-circuit protection

6. over temperature protection
7. AC input low voltage protection
8. AC input over voltage protection
9. Battery reverse connection protection (Optional)

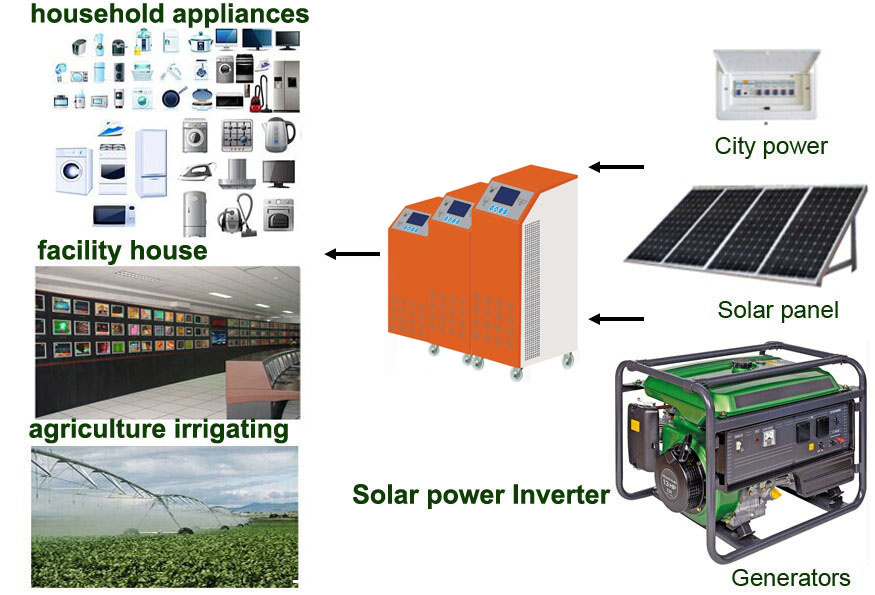

1.Power Supply Field: Solar System, wind power system, gas discharge lamp and etc.
2. Household Appliances: lamps ,refrigerator,TV,washing machine,electric fans, vacuum cleaner, air conditioner, satelliate receiver, micro-wave oven, induction cooker etc.
3. Office area: Computer, printer, copier, scanner, digital camera and etc.

4. Power tools series: Electric saw, drilling machine, punching machines, air compressor etc.
5. Irrigating system:solar pumping system
6.Traffic Devices: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.

Warranty: two years
If you can cooperate with us, we will be honored and you will benefit from:
1. Professional engineers and professional analysis equipements and testing decives support professional aftersales services
2. The good construction warranty is 2 years
3. Your client will be satisfied on the right schedule and quality
4. Your can get good reputation from your market and obtain more orders
5. The free inverter samples will be provided after your first 3 orders
6. The reasonable prices
7. Any question from you are welcome and will be replied in 24 hours.
Off Grid Pure Sine Wave Inverter/Home Inverter Technical Specifications
Inverter Rated capacity(W)500W700W1000W1500W2000W
Inverter InputRated Battery Voltage12V/24V12/24V12/24V24/48V24/48V
Commercial Power range (VAC)100/110/120/127/220/230/240 (+25%,-35%)
Inverter OutputRated capacity500W700W1000W1500W2000W
Waveform Pure sine wave
Frequency(Hz) 50±0.5/60±0.5
AVR voltage range(VAC)100/110/120/127/220/230/240±10%
(Auto-sensing )
ProtectionOver Load Protection 30 seconds delay shutdown for 105~130% exceeded
BatteryTypeSealed, maintenance-free lead acid
Battery protectionAutomatic self-test, discharge protection, over-charge protection, smart management system.
Recharge current30A(Maximum)
DC voltaget12/24VDC24/48V
battery input voltage range12VDC:11~ 15V
24VDC:22~ 30V
48VDC:44~ 60V
Working EnvironmentWorking Temperature0ºC ~ 40ºC (0m~1500m)
Store Temperature0ºC ~ 40ºC
Packing Size(L*W*H)494*420*345(2PCS)mm532*468*3350mm
Net weight(kg)911132125
Gross weight(kg)1012142327
Off Grid Pure Sine Wave Inverter/Home Inverter Technical Specifications
Inverter Rated capacity(W)3000W4000W5000W8000W10000W
Inverter InputRated Battery Voltage24/48V48/96V96/192V
Commercial Power range (VAC)100/110/120/127/220/230/240 (+25%,-35%)
Inverter OutputRated capacity3000W4000W5000W8000W10000W
Waveform Pure sine wave
Frequency(Hz) 50±0.5/60±0.5
AVR voltage range(VAC)100/110/120/127/220/230/240±10%
(Auto-sensing )
ProtectionOver Load Protection 30 seconds delay shutdown for 105~130% exceeded
BatteryTypeSealed, maintenance-free lead acid
Battery protectionAutomatic self-test, discharge protection, over-charge protection, smart management system.
Recharge current30A(Maximum)
DC voltaget24/48V48/96V96/192V
battery input voltage range24VDC:22~ 30V
Working EnvironmentWorking Temperature0ºC ~ 40ºC (0m~1500m)
Store Temperature0ºC ~ 40ºC
Packing Size(L*W*H)547*345*538mm710*440*795mm
Net weight(kg)4035437981
Gross weight(kg)4237448184
RemarksSpecifications subject to change without prior notice
Our company accept customized special specifications products

Prod Model: 5000W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display: LCD
Frequency: 50Hz/60Hz
Cool Way: Cooling Fan
Output: Isolation Transformer
Output AC Voltage: 90V/110V/120V/220V/230V/240V
Charge Current: Max 30AMP
Color: Black/Orange/Customized
Warranty: 2 Year Plus Life-Time Service
Peak Power: 2 Times as Rated Power
AC Mode Efficiency: 85%
Phase: Single
Type: DC/AC Inverters
Power Source: Solar Power
Output Power: >1000W
Brand: Polytex
