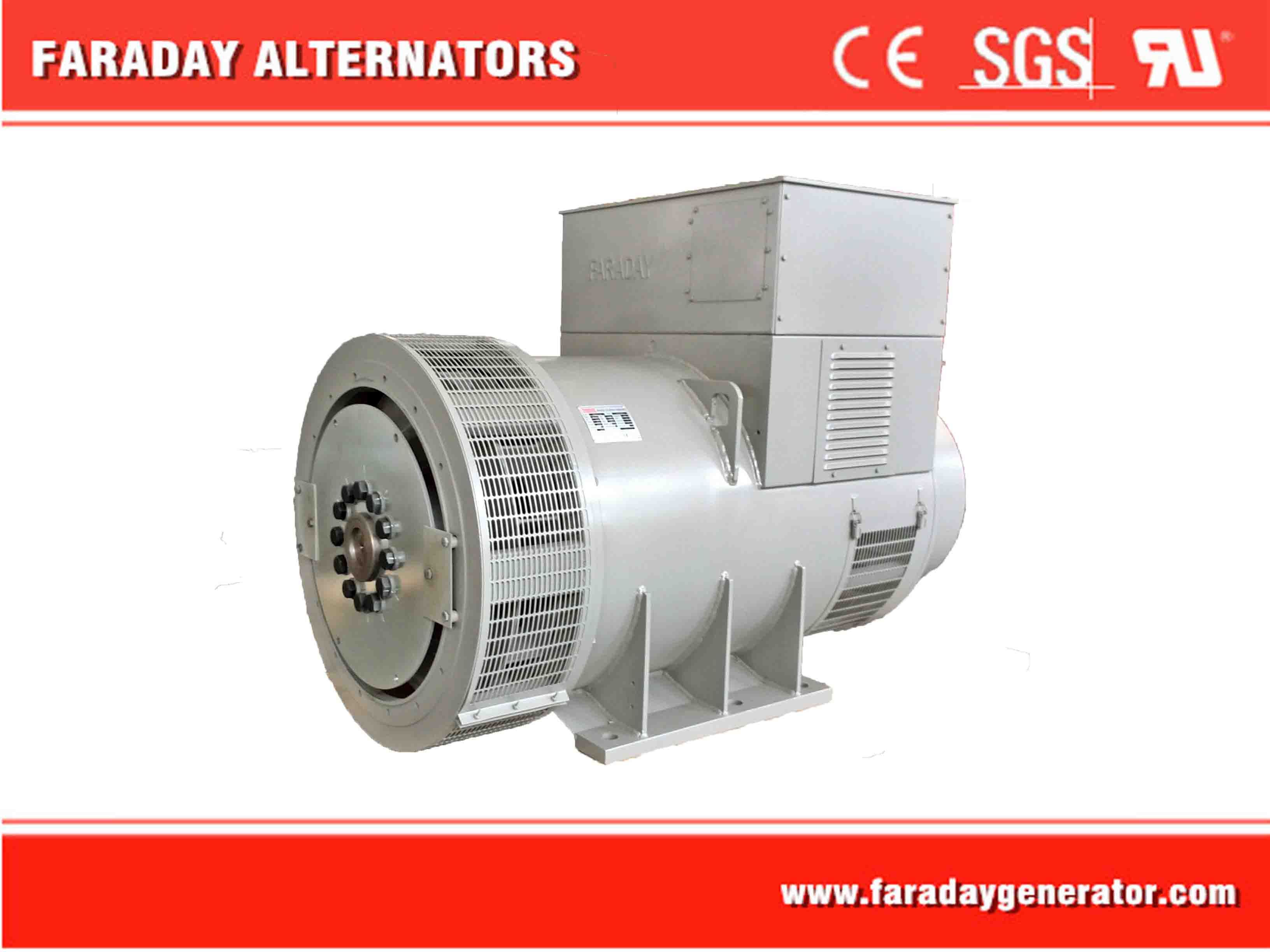

Electric Alternator 220V for Generating in Countryside Area 750kVA/600kw Fd6as

Electric Alternator 220V for Generating in Countryside Area 750kVA/600kw Fd6as
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Trustworthy 100% Copper Wires Synchronous AC Alternator From 600kw to 1000kw, 190-690V

Specification
Model series: FD6AS 750KVA/600KW Brushless synchronous AC alternator
Range of power: 600kw, 190-690V
Frequency: 50/60Hz Low frequency
Usage: Make Electrical
Phase: Three Phase.
Certificate: Has passed CE, ISO9001: 2008.
Export Markets: Global
Insulation class: H,

Warranty period
Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.

Accordant Standard
GB755 National Standard for Rotating Electrical Machine.
IEC60034 (International Electrotechnical Commission)
BS5000, VDE0530, CSAC22.2-100 International Standard

Application Area:
Faraday alternators fit all different brands of engines, are extensively used as prime or standby power in various applications, such as
General industry, Mining, Military, Oil-field, Construction, Telecommunication, Hospital, Engineering Machinery, Building construction, CHP, Marine and other harsh environment applications etc.

Raw material:
1. Copper wire has passed UL certified class 200.
2. PMG and VPI are optional.
3. Insulation paper is Tyvek (Dupont paper).
4. Epoxy Resin from ALTANA in Germany
5. Low iron-loss silicon steel is BS470 from Shanghai BAOSTEEL GROUP.

Product Description
FD6 brushless AC alternator, the range of power from 600kw to 1000kw.
It includes FD6AS, FD6A, FD6B, FD6C, FD6D, FD6E.
3 phase, 4 pole, 50Hz/60Hz, 1500rpm/1800rpm, 190-690V

Standard Feature of Product:
1: Comply with the most common standard in terms of GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100
2. With high-efficiency single-direction ratated fan
3: Single or double bearings are available, options for all kinds of adaptors and disc plates
4: Standard "H" insulation class
5: Convenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts
6: Standard sealed maintenance-free bearings
7: Standard IP23 protection, optional severe environment protection
8: Standard PMG in excitation system

Note:
*The generators have been designed for use in a maximum ambient temperature of 40degree and
Altitude less than 1000m above sea level
*All generators are 4-pole ones

Electric Features:
1. Voltage accuracy is ± 1% in static condition with any power factor, with optional PMG and MX321 AVR, voltage accuracy will be ± 0.5%.
2.2/3 pitch winding effectively eliminate harmonic waves, best for non-linear load
3. Faraday alternators can function in parallel among themselves.
4. Radio interference suppression.

Options
1. Winding RTD and bearing RTD
2. Winding protection thermistor and relay
3. Anti-condensation heater
4. Air filter
5. Droop CT
          Item         FD6 Three-phase Industry Alternators Power
            50Hz(1500Rpm) 60Hz(1800Rpm)
Voltage(V) Class H(125K) Class H(125K)
Star-Series 380 400 415 440 460 480
  Star-Parallet 190 200 208 220 230 240
Delta-series 220 230 240 254 266 277
FD6AS-4 Rated Capacity(kva) 750 750 750 900 900 900
  Rated Power(kw) 600 600 600 720 720 720
  Efficiency(%) 93.2 93.3 93.5 93 93.1 93.4
FD6A-4 Rated Capacity(kva) 800 800 800 963 963 963
  Rated Power(kw) 640 640 640 770 770 770
  Efficiency(%) 93.6 93.6 93.8 93.4 93.5 93.7

FD6B-4 Rated Capacity(kva) 912 912 912 1088 1088 1088
  Rated Power (kw) 730 730 730 870 870 870
  Efficiency    (%) 93.5 93.5 93.7 93.3 93.4 93.6

FD6C-4 Rated Capacity(kva) 1025 1025 1025 1150 1150 1150
  Rated Power (kw) 820 820 820 920 920 920
  Efficiency    (%) 94.2 94.2 94.4 94.1 94.2 94.3

FD6D-4 Rated Capacity(kva) 1138 1138 1138 1275 1275 1275
  Rated Power (kw) 910 940 910 1020 1020 1020
  Efficiency    (%) 94.6 94.7 94.8 94.6 94.7 94.8
FD6E-4 Rated Capacity(kva) 1250 1250 1250 1500 1500 1500
  Rated Power (kw) 1000 1000 1000 1200 1200 1200
  Efficiency    (%) 94.8 94.9 95 94.9 94.9 95

Prod Model: FD6AS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Type: AC
Speed: 1500/1800rpm
Rated Power: 750-1250kVA
Pole: 4
With world-leading technology and advanced management experience in operation, Wuxi Faraday Alternators Ltd is cooperating with American Basler Electric Company in excited system, being professionally engaged in the production and sales of "FARADAY" alternators, power ranged from 6.5kw to 2000kw.

BUSINESS PRINCIPLE:Carving out with integrity to pursue employee satisfaction, customer satisfaction as well as society satisfaction for life

DEVELOPMENT STRATEGY:Guaranteeing quality with criterion, building brand by quality, developing with brand

MANAGEMENT STAFF:Our senior management staffs are all professional talents who have ever worked in multinational company for so many years in alternators' production and sales, with extensive experience of marketing and service, production, material supplied chain management and quality control system.

PRODUCT FEATURE:Cooperating with American Basler Electric Co., innovating under the world-leading technology combined with the feedback from actual practice:Overcoming the AVR shortage of the usual domestic alternator, reasonable design, compact overall dimension, light weight, class "H" of all stators and rotors' insulation, stable and reliable even during bad working condition, etc., with patent registered already.

CUSTOMER SUPPORT:We have an excellent service and industry solution team who have been engaged in alternator field for over ten years, we can assure customers that complaint or help will get swift response, within 24 hours to be on the spot in Jiangsu province and 48 hours in nationwide is available if necessary.

CORE COMPETENCE:Topping employee, advanced ideas, leading technology, reliable quality and timely service are our core competence.
