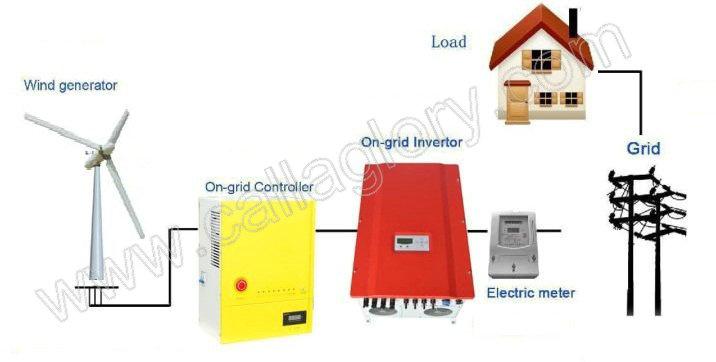

EFD Series (EFD10kW, EFD20kW, EFD30kW and EFD50kW) still can be used as grid tied system. However, a grid tied inverter to be needed for wind turbine system to be connected to state grid.
Generator system.
Generator orientation systems have been adopted the specialized rotary fulcrum and hydraulic motor designed for wind turbine generator. The involvement of coordinated and patent forked hydraulic brake system will guarantee the brake system works high efficiently. Low-torque technology will enable the generator to be easy to start up. Hi-strength stainless bolts have been adopted, which will secure the normal operation under adverse climate.
Blades system
High-quality fiber glass has been used for the blades with the advantages of light in weight, high strength, water proof, corrosion resistance, which will extend the blades' lifespan and promote performance efficiency.
Controller system.
Latest version PLC designed by Mitsubishi for us and other key parts designed by Schneider have employed. Interface operational platform has been the controlling kernel of controller while at the same time, the involvement of GPRS or ANSL mode will connect to the Internet in order to achieve the data remote control. Free remote control technology support will be offered by us within warranty period.
Hydraulic tower system.
Patented hydraulic tower will be easy for installation and maintenance. Hot-DIP galvanization have been covered the entire tower surface, which will be kept away from corrosion.
The standard configuration packages for our systems will consist of the following parts, say, generator system, blade system, controller system, dump loading system (only for EFD series), and hydraulic tower system.
|
Model |
EFD-10KW |
EFD-20KW |
EFD-30KW |
EFD-50KW |
|
Rated Power(W) |
10000 |
20000 |
30000 |
50000 |
|
Rated Voltage (VDC) |
240 |
240 |
240 |
360 |
|
Rated Frequency (HZ) |
50/60 |
50/60 |
50/60 |
50/60 |
|
Rotor Diameter (m) |
8 |
10 |
12 |
13.8 |
|
Start-up Wind Speed (m/s) |
2 |
2.5 |
2.5 |
2.5 |
|
Rated Wind Speed (m/s) |
10 |
12 |
12 |
12 |
|
Security Wind Speed (m/s) |
45 |
45 |
45 |
45 |
|
Wind Turbine Type |
Upwind |
Upwind |
Upwind |
Upwind |
|
Yaw Mode |
Dynamo Electric |
Dynamo Electric |
Dynamo Electric |
Dynamo Electric |
|
Rated Rotation Speed (r/m) |
180 |
90 |
75 |
60 |
|
Shell Material |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
|
Blade Material |
GFRP |
GFRP |
GFRP |
GFRP |
|
Blade Quantity |
3 |
3 |
3 |
3 |
|
Free Stand Tower height (m) |
12 |
18 |
18 |
24 |
|
Hydraulic Free Stand Tower height (m) |
12 |
18 |
18 |
18 |
|
Matched Inverter Type |
SMA grid-tied inverter |
|
Controller |
Mitsubishi PLC; Schneider Contactor; GPRS/ADSL Romote Control; Touch Screen Interface; Fiber Glass |
|
Protection Mode |
Yawing (Auto/Manual), Hydraulic Brake and Dump Load |
|
Turbine Life Span |
20 years under normal conditions |
Calla Glory Wind Power is a wind turbine manufacturer with headquarters and main production facilities established in 1998.Calla Glory Wind Power is wholly owned by Calla Glory through the Renewable Energy division in the Calla Glory Enterprise Corporation Limited.The renewable energy constituent company is one of leading and the largest producers and exporters for Small-medium sized Wind Turbines from 300W up to 50kW.Calla Glory Wind Power is specialized high-tech enterprise engaged in independent development, design, manufacturing and sale of small wind generators which are adaptable to a global variety of wind resources and environmental conditions.
Whole-digitalized controlling system has been achieved through the appliance of ultrasonic anemoscope and dogvane in 10KW wind turbine generator, 20KW wind turbine generator, 30KW wind turbine generator and 50kW wind turbine generator developed by our company.The wind generator has been adopted low-torque starting technique with start-up wind speed 2m/s.The appliance of several new technologies contributes to the simplification of installation procedures, reduction of taking room, advancement of electric efficiency, along with enhancement of stability and security, received warm welcome from customers both domestic and aboard.
