Cummins Speed Controller P/N: 3044195
3062322; 3032733; 3037359; 3044195
3044196; 3098693; 4914090; 4914091

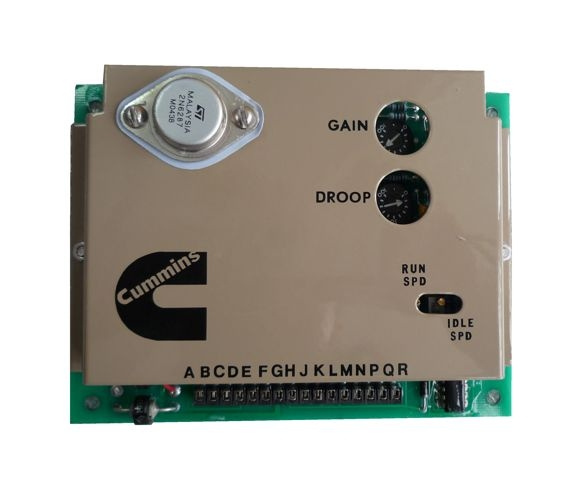

Cummins Speed Controller
P/N: 3044195
SPECIFICATION:
RPM Stability:
<± 0.25%
Speed Range:
1kHz ~ 6.5kHz
Thermal Stability:
Max ± 0.7%
IDLE Regulation:
260 ± 20Hz
DROOP Regulation:
Minimum 15Hz ± 6Hz/ 1 AMP
Maximum: 400Hz ± 75Hz/ 1 AMP
External Speed Regulation:
± 200Hz (with 1 kΩ Connected)
AUX Input Sensitivity:
148Hz / 1V., ± 10Hz
Impedance:
1MΩ
Working Temp Range:
-40 ~ 85 ° C
ENVIRONMENT:
Working Humidity Range:
Maximum 95%
Stocking Temp:
-55 ~ 92 ° C
Shocking:
20-100Hz 500mm/Sec.
INPUT POWER SUPPLY:
Voltage:
12V or 24V
Grounding Pole:
Negative pole
Power Supply:
40mA
Actuator Continuous Current:
Minimum 1A, Maximum 4.5A
MPU:
Signal:
2 ~ 120V RMS
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency.
