Home Generator Products Economical Air-Cooled Diesel Generator (2/3/5KW)

Economical Air-Cooled Diesel Generator (2/3/5KW)

Economical Air-Cooled Diesel Generator (2/3/5KW)
Price: US $ 318-435/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Since 2007 Changzhou Yarmax Power Co,. Ltd specialized in the ultimate power solution, research, design and production of Engines, Power Generators and Water Pumps with the state of art of the technology and unique design.
We only focus on the great goal to be the power expert by your side.
YARMAX Power. Power The World !
Our main products including Air Cooled Diesel Engine, Air Cooled Diesel Generators, Welding Generators, Water Pumps and Water Cooled Diesel Generator from power range of 10KVA-2000KVA with very strong capability, advanced production lines and quality inspections.
Moreover, we fully carry out quality management system and strictly enforce the management system of ISO9001; 2000 and CE. We keep seeking researching and producing new variety of products with our very skillful professional team of technicians and workers. Our products have good reputation and goodwill in both local and international market.
We encourage the participation of all our staff members to reply on quality, development and creativity. We also strictly follow the valuable feedbacks of our valuable customers and agents.
We are looking forward to co-work with overseas companies based on mutual benefits and provide the best service to the world !
Model/YM3500EYM6500EYM7500EYM8500EYM9500E
Rated frequency/
(Hz)
50   60
Rated output/
(kVA)
2.8   3.04.5   4.84.8   5.05.2   5.55.5   5.8
Max. output /
(kVA)
3.0   3.24.8   5.25.0   5.25.5   5.85.8   6.2
Rated Voltage/
(V)
230 or as requested
Rated current /
(A)
12.219.621.723.926
Rated rotation speed/
(r/min)
3000   3600
Phase NO./Single phase/
Power factor /
(Cos Φ)
1
Insulation Grade/B
Pole number/2
Excitation mode/Self-excitation & constant voltage (AVR)/
(AVR)
Panel Type/General Panel/
Voltage/
(V)
230 or as requested
Receptacle/Two receptacles/
Connection pole/Without/
DC12V output/
DC12V
Connection pole output/
Overall dimension(L×W×H)/
(L×W×H)mm
655X480X530720X492X655720X492X655720X492X655720X492X655
Dry weight/
(kg)
70100100100100
Working assorting weight /83115115115115
Noise level(7m)/
dB(A)
7777777777
Structure type/
Engine Model/YM178FAGYM186FAGYM188FBGYM190FGYM192FG
Engine Type/Single cylinder, vertical, four-stroke, direct injection, air-cooled/
,,,
Cylinder NO.-bore×stroke/
-×(mm)
1-78×621-86×721-86×721-90×741-92×75
Displacement/
(ml)
296418418552548
Rated power/
[KW/(r/min)]
3.68/3000      5.7/3000     7.3/3000     7.8/3000     8.5/3000
Compression ratio/20:0119:0119:0119:0119:01
Lubrication system/Pressure splashed/
Starting system/Electric starter/
Fuel type/0#(summer)-10#(winter)-35#(chillness)diesel/
:0#()-10#()-35#()
Lube oil brand/CD grade or SAE10W-30,15W-40/
CD SAE10W-30,15W-40
Lube capacity/
(L)
1.11.651.651.651.65
Starting motor capacity/
( V-kW)
12V   0.8kW
Charging generator capacity /
( V-A)
12V   3A
Battery capacity/
(v-Ah)
12V   36Ah
Fuel consumption/
(g/kw.h)
≤370
Fuel tank capacity/
(L)
13.5
Continuous running time/
(hr)
8.55.55.55.55.5

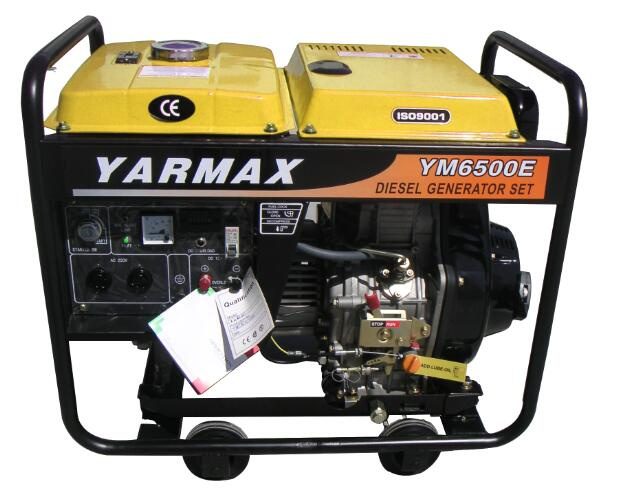

Prod Model: YM6500E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output: 2-7kw
Rated Frequency: 50/60Hz
Noise Level(7m): 77
Lubrication System: Direct Injection
Type: Self-Starting Diesel Generator
Installation Method: Portable
Stroke: Four Stroke
Cooling Method: Air Cooled
Output Type: AC Three Phase
Speed: 3000/3600r/Min
Excitation Mode: Self-Excitation/Constant Voltage (AVR)
Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.

As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.

To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.

Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.

Yarmax Power - your ideal choice
