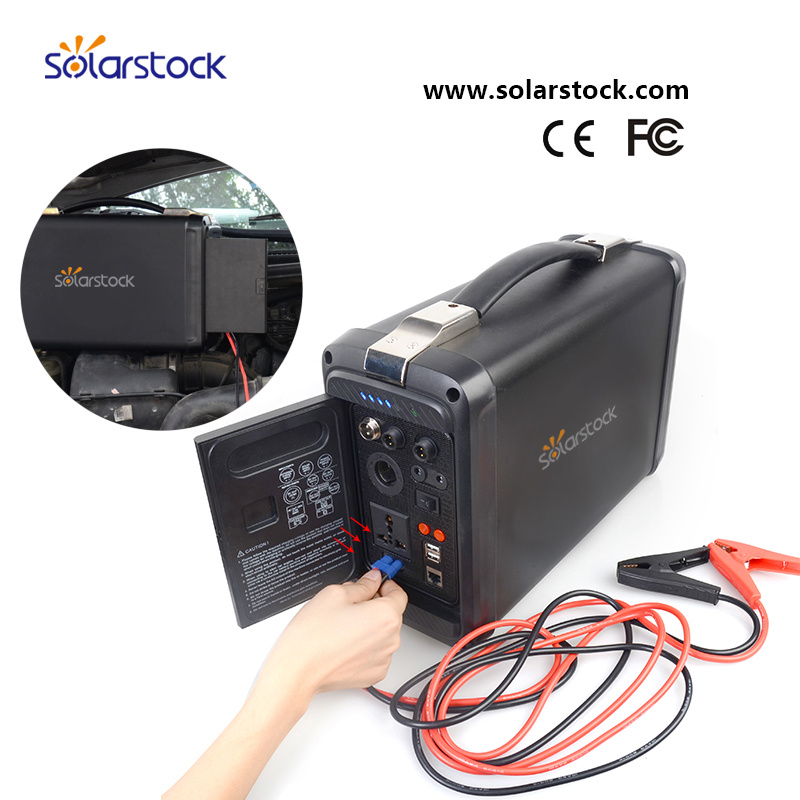

Eco-friendly Solar Power Backup Generator(PPS500W)
Introduction
This portable solar power multifunction system adopts digital intelligent control with flexible and powerful control
way, arbitrarily choice to use AC&DC output. It is ideal equipment for army, fire protection, scientific, earthquake,
industrial and mining, tourism, grazing field and other outdoor activities.
Description
Light weight, small volume. Appearance vogue, with delicate to manual work.
IP 67 waterproof, no worry for being damaged by rainy weather or water.
With intelligent display system, it can indicate the status of battery, charging, mistake, the connection of AC/DC output.
Integrated portable design, super function with AC/DC input and output.
Lithium battery, with long lifespan, can be replaced easily after its service period.
Adopt intelligent control, with 6 kinds of protection, over charging, over voltage, under voltage, over loading, over heating and short circuit protection.
Multifunction charging ways: solar panel, electricity AC or car charging.
It can load various voltage of appliances, with DC5V/12V or AC 220V. As TV, mini refrigerator, lamp, fan, laptop, mobile phone, digital camera and so on.
The unique function of stating the car.
Portable Solar Power System Parameter:
Model No. | SS-PPS500W |
| Battery | Polymer lithium battery 12V 50AH |
| Car charging | Voltage:12V-20V Current:5A |
| Solar charging | Voltage: 18V Current: 10A |
| AC charging | Voltage: 13V Current: 6A |
| AC output | Max output power: 500W |
| Output voltage: AC110V~240V |
| Output frequency: 50Hz |
| Output waveform: Pure sine wave |
| DC12V output | Output voltage: DC12V |
| Max output current: 8A |
| USB DC5V output | Output voltage: DC5V |
| Max output current: 3A |
| Jump starter | 12Vbattery car engine start |
| Radiating | Air cooling |
| Protections | Over charge protection
Under voltage protection
Over voltage protection
Over load protection
Short circuit protection
Overheating protection |
| Size | 385mm*280mm*150mm |
| N.W. | 9KG |
Operating environment:
1. The product should be used in dry cleaning ventilated environment.
2. Avoid to use in direct sunlight, blazing sun, rain, moisture, dust, and mist environments.
3. Prohibiting use in flammable, explosive gas environment, and must beware of flames and sparks.
4. The environment temperature is from -10ºC to 45ºC.
5. Air relative humidity is not greater than 80%(25ºC±5ºC).
Our Warranty:
For all our products shipped out, we offer a 12-18 months warranty;
(1) Within this ONE YEAR Warranty period, replacement of the defective part can be provided free of charge, and free of shipping worldwide;
(2) Based on different Order Quantity, free backup components can be negotiated;
(3) For large quantity of defective feedback, a CALL-BACK service or a VISIT-TO-REPAIR service can be provided;
Guangdong Solarstock New Energy Technology Co., Ltd was established in February of 2012 with a 20 million CNY registered fund. The company is located in the north district of Nanshan Science and Technology park of Shenzhen, which has gathered many creative scientific talents and strives to be one of the most innovative new energy high-tech enterprises that provides photovoltaic power station technology and develop storage products with lithium battery.
The company continuously invests and promotes scientific research; It has developed a series of lithium battery energy storage and solar power generator products like LK and pH series, which have different configurations and performance. The product's performance and technical standards have reached the international advanced level, with FCC, CE, UL, RoHS and other certifications, and has also obtained many patents.
The company innovate operation ideas and explores markets. There are branches in Hong Kong and the USA. Our products are sold in South Africa, European, Australia, the Middle East, South East Asia and Africa-more than 40 countries and regions. They are mainly used in emergency power supply markets; Widely used in the outdoors; Travel and exploration; Disaster, military, medical and automotive accessories and other fields.
Solarstock will continue to innovate and compete globally. We expect to install 10, 000 distributed photovoltaic power stations on roof and export 70, 000 units of portable solar generator kits by 2020.
Guangdong Solarstock New Energy Technology Co., Ltd. is absorbed in lithium battery energy storage and solar power generator manufacturing for years. We have our own R&D department which has professional working experience in solar system projects. And product's performance and technology has reached international advanced level, with FCC, CE, UL, RoHS and others certification, and also won many patents, such as: No. 4091934 & No. 4174443 & No. 4265306.
Our products are sold in more than 40 countries such as South Africa, European, Australia, Middle East, etc. Solarstock will keep innovation and design more and more green energy solar products in future.
