Home Generator Products Ea350 AVR 3 Phase AVR for Alternator Generator

Ea350 AVR 3 Phase AVR for Alternator Generator

Ea350 AVR 3 Phase AVR for Alternator Generator
Price: US $ 98-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union

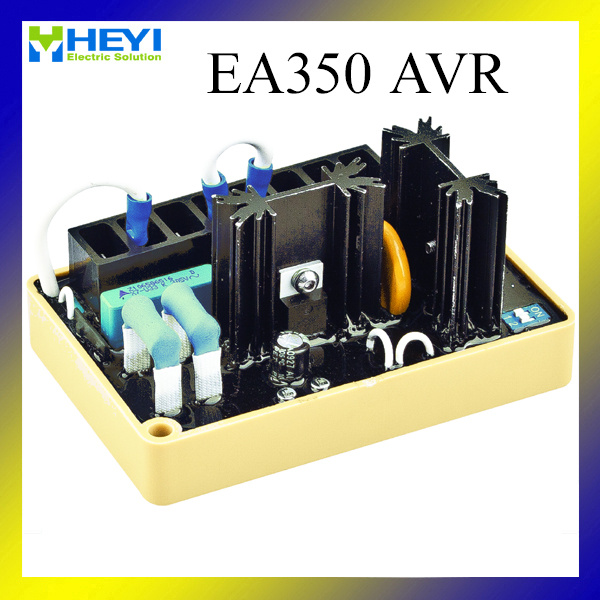

EA350 AVR Voltage regulator is an encapsulated electronic voltage regulator which controls the output of a brushless AC generator by regulating the current into the exciter field.

Stability adjust

V/HZ roll-off frequency selection

Preliminary set-up

Exciter power circuit

Sensing/power input circuit

Technical parameters: The establishment of voltage:

when greater than the residual magnetism 4V25Hz,

it will automatically build pressure.
Input power: AC190 ~ 240V 50/60Hz.
Output: 75V DC voltage.
Current 3.5A (consecutive).
Frequency compensation: Built-in engine rpm drop,

the output voltage drop of the frequency circuit protection.
Adjusted rate: better than 1%

3 phase avr for alternator generator avr ea350

 Sensing & Power Input  190-240 Vac
 Burden 500VA
 Output Power-Continuous 73 Vda at 3.5 Adc(255w)
 Output Power-Forcing(240 Vac Input Power) 105 Vdc at 5 Adc(525w)
 Regulation1.00%
 Remote Voltage Adjustment Range ±10% with 2000 ohm rheostat
 ±5% with 1000 ohm rheostat
 Frequency Compensation Adjustable
 Roll off ferquency  54-61 Hz for 60 Hz
 45-51 Hz for 50 Hz
 Operation Weight6.5 oz
 Power Dissipation  8 watts maximum

Prod Model: EA350
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Purpose: Generator
Input Voltage: 160~260V
Resistance: 10ohms Minimum
Phase: Single and Three Phase
Function: Paralleling Fucntion
Sensing Input Voltage: 190 -264V AC Max,2 or 3 Phase
Output Voltage: Max 120V AC
Max Input Current: 0.33A
Test.Temperature: 75 Degree
Set Point: 75VDC
We are the professional manufacturing the 0.5-35 KV outdoor indoor, dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

We are the first one who been granted the transformer production license by National technical supervise bureau, Machinery industry Dept, national electrician committee.

The company holds the registered capital of RMB1 0, 000, 000.00, and her importing & exporting amount each year exceeds USD 1, 000, 000.00, The company is provided with the Management Dept, Marketing Dept, Engineering & Technology Dept, Quality Control Dept, Material Supply Dept, Production Planning Dept, Financial Dept and so on. Currently it has 309employees, including 6 engineers and 10 technicians. The company has a strong technical force, advanced production and test equipment and the world latest manufacturing process and technology to adequately meet the customer needs for quality.

Our products are not only largely meet with the demand of domestic customers, but also widely exported the markets of North and South America, Southeast Asia, Middle-east, Latin America, Africa, and Europe with a very good reputation.

Some products have been approved by CE and IEC certificates.

As we hopefully steeping into the newest century, welcome new and old clients to make a good or Better business cooperation relationship.
