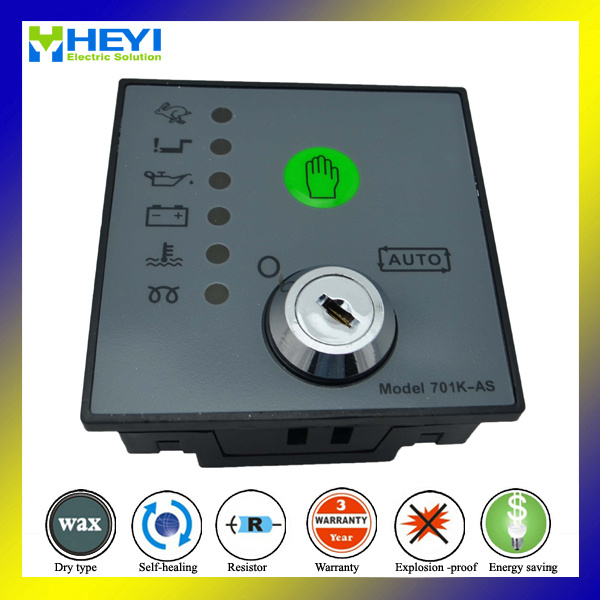

DSE701-AS deep sea generator auto start control
Introduction
The model 701/702 is an Engine control module designed to control the engine via a key switch and pushbuttons on the front panel.
The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the engine and indicating the cause of failure by LED,giving true,first up fault annunciation.
Additionally, the Autostart versions of the controller will respond to a remote switched input to begin the start sequence.
Model 702 has integral tamperproof LCD hours run counter to indicate total engine run time.
Technical data
Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts | Able to survive voltage dips during cranking. Without |
| the need for internal batteries. |
| AlternatorInputRange | 15 - 305 V AC RMS (+20%) |
| Alternator Input Frequency | 50 - 60 Hz at rated engine speed. (Minimum 75V AC) |
| Overspeed: nominal frequency +14% (+24% Overshoot) |
| Start Output | SolidState 1.2A negative grounding terminal |
| Run Output | SolidState 1.2A negative grounding terminal |
| Pre-heat Output | Solid State1.2A negative grounding terminal |
| Operating Temperature Range | -30 to +70°C |
DSE701-AS deep sea generator auto start control
| Biogas Power Generation |
| * Natural Gas Power |
| * Field Engineering |
| * Electric Power |
| * Factory |
| * Fire-fighting |
We are the professional manufacturing the 0.5-35 KV outdoor indoor, dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
We are the first one who been granted the transformer production license by National technical supervise bureau, Machinery industry Dept, national electrician committee.
The company holds the registered capital of RMB1 0, 000, 000.00, and her importing & exporting amount each year exceeds USD 1, 000, 000.00, The company is provided with the Management Dept, Marketing Dept, Engineering & Technology Dept, Quality Control Dept, Material Supply Dept, Production Planning Dept, Financial Dept and so on. Currently it has 309employees, including 6 engineers and 10 technicians. The company has a strong technical force, advanced production and test equipment and the world latest manufacturing process and technology to adequately meet the customer needs for quality.
Our products are not only largely meet with the demand of domestic customers, but also widely exported the markets of North and South America, Southeast Asia, Middle-east, Latin America, Africa, and Europe with a very good reputation.
Some products have been approved by CE and IEC certificates.
As we hopefully steeping into the newest century, welcome new and old clients to make a good or Better business cooperation relationship.
