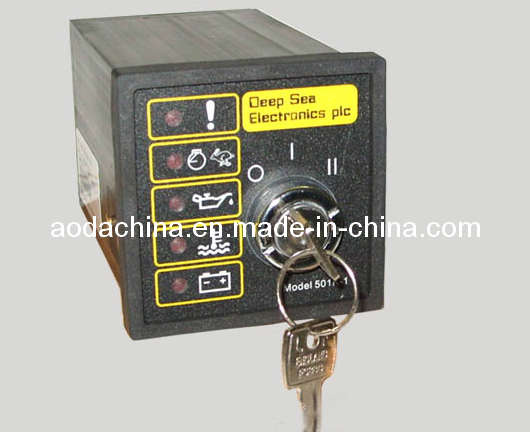

The Model 501K-1 is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on t front panel. The module is used to start and stop the engine, indicating fault conditions; Automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation.
SPECIFICATION
DC Supply:
9 to 33 V Continuous.
Cranking Dropouts:
Able to survive voltage dips during cranking. This is achieved without the need for internal batteries.
Alternator Input Range:
15 - 305 V AC RMS
Alternator Input Frequency:
50 - 60 Hz at rated engine speed.
Magnetic Input Range:
0.5 V to +/- 80 V
Magnetic Input Frequency: 2300Hz to 6000 Hz at rated engine speed.
Start Relay Output:
16 Amp DC at supply voltage.
Run Relay Output:
16 Amp DC at supply voltage.
Alarm Output:
1 Amp DC at supply voltage.
Dimensions:
72 X 72 X 118.5 (Excluding Key-switch)
Operating Temperature Range:
-30 to +70° C
Installation:
Front panel mounting via suitable cut-out. Retaining clips supplied. Cable connections via locking plug and socket type connectors.
Calibration:
Speed trip setting and meter calibration adjustment potentiometer are accessible from the rear of the module.
