Drying air with high quality and low dew point through scientific combination of the
cooling, adsorption and purification, reasonable pipe connection and capacity
collocation.

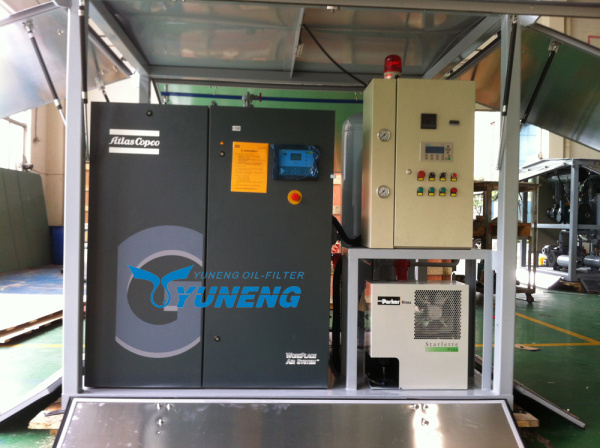

Dry Air Generator for Transformer Maintenance is developed by Chongqng Yuneng Oil Purifier Manufacturing co., Ltd. comprehensively utilized the advantages of the jucai, uncial, coalescing oil-water separators, super accuracy filtering so as to economically and optimally operate and produce drying air with high quality and low dew point through scientific combination of the cooling, adsorption and purification, reasonable pipe connection and capacity collocation. Besides, it can check automatically by using PLC system. It is compact in structure, low in gas consumption and long in using life. Furthermore, its dryer can be used three times longer than normal one. The equipments are high efficiency, saving energy and good safety because of adopting microcomputer program controlling.
Features of Parameter of Dry Air Generator for Transformer Maintenance
| Item | Parameter | Unit | GF-50 | GF-100 | GF-150 | GF-200 |
| Technical Parameter | Flow | M³/h | 50 | 100 | 150 | 200 |
| Working Pressure | Mpa | 0.6~0.8 |
| Pressure Drop | Mpa | 0.05 |
| Noise | dB(A) | 70 |
| Working Power | KW | 380V-50Hz 3 Phase 4 Wire |
| Total Power | KW | 12 | 19 | 22 | 26 |
Size | Length | cm | 215 | 215 | 230 | 230 |
| Width | cm | 155 | 155 | 165 | 165 |
| Height | cm | 230 | 230 | 230 | 230 |
| Diameter | DN | 32 | 40 | 50 | 50 |
| Weight | Kg | 900 | 980 | 1030 | 1050 |
| After Treatment Index | Discharge Pressure | Mpa | 0.02~0.03 |
| Dew Point | °C | -50°C ~ -70°C |
| Particle | um | 0.01 |
| Oil content in air outlet | ppm | 0.01
|
Yuneng products list:
1. Insulation Oil Purification Series:
ZJA Ultra-high Transformer / Insulation Oil Filtration Machine (1000KV, ±800KV, 750KV, ±660KV project) ( 2 stagevacuum)
ZJA High-vacuum Transformer / Insulation Oil Filtration Machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil Filtration Machine (≤110KV) (one stage vacuum)
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors).
JZ OLTC (on-load tap changer) online Oil Filtration Machine
Quantitative oil injection machine (customized product)
2. Turbine Oil Filtration machine:
JT coalescing dehydration oil filtration machine (dehydration by special filters)
DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil Filtration machine:
ZJC-R vacuum Oil Filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil Filtration machine for OCS. (oil with high viscosity 22-320cst at 40ºC)
4. Other kinds of oil filtration machine:
KYJ fire-resistance oil filtration machine (EHC oil)
LY plate-frame pressure oil filtration machine (simple, paper filtration)
YL mobile oil filtration machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil recycling machine (by chemicals)
YNZSY-LTY used tire oil recycling machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd. is a new and high-tech joint-stock enterprise established on the basis of the former Chongqing Yuneng Oil-Purifier Factory. Our company, covering an area of about 14, 500 square meters, specializes in the R&D, manufacture, and marketing of oil, water and gas filtering and purification products and complete sets of related equipment. We gather a group of specialized talents with years of working experience and technological development. Now we have 228 employees, and 60% of them have received an educational background at or above the junior college level. We can produce 1, 000 sets of oil-filtering equipment and purification equipment for other fluids every year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture.
We attach great importance to product quality, specialization, dedication and constant improvement. Aiming to become a world-advanced manufacturer of oil treatment equipment, we have always upheld the development philosophy centering on "technological innovation and service improvement". We have passed ISO quality management certification. Besides, ten of our new technologies have received national patents of invention and five of our oil purifier series have been granted the title of "new and high-tech products of Chongqing". In 2004, our company was rated as a new and high-tech enterprise of Chongqing. In addition, with the support and help of the Chongqing Commission of Science and Technology, our company implemented EPR information management system in 2006. All these lay a solid foundation for our company to provide customers with high-quality reliable products and fast and comprehensive service to avoid homogenous competition on quality improvement.
Over the past 20 years, we have always stuck to the operational concept of "being faithful and dedicated, practical in development, and cooperative for common progress". By working in a down-to-earth manner and orientating ourselves to customer needs, we have received the recognition of a lot of customers. So far we have sold over 15, 000 sets of Yuneng-brand oil purifiers, which are widely used in electric, metallurgical, petrochemical, mechanical, military industry, railway, light industry, and other industries. Our products enjoy a fairly big market share and have become a famous brand in medium- and high-grade oil treatment equipment.
According to the long-term development objective of the Group, we set up a new company called Chongqing Xingao Electromechanical (Group) Co., Ltd. The new Group will continue to seek innovation and dedicate itself to the research and manufacture of high-end oil treatment technologies. It will also seek diversified development to cover the manufacture of water and gas purification equipment and filtering consumables as well as the assembly of electro-mechanical and environmental protection equipment, so as to realize the goal of making strong main business while making the company bigger as a whole. We are ready to do our part to develop national industries, save energy and protect the environment.
We are looking forward to cooperating with you.
