Capacity of producing water: 250L/H
General power: 1.2 KW
Introduction

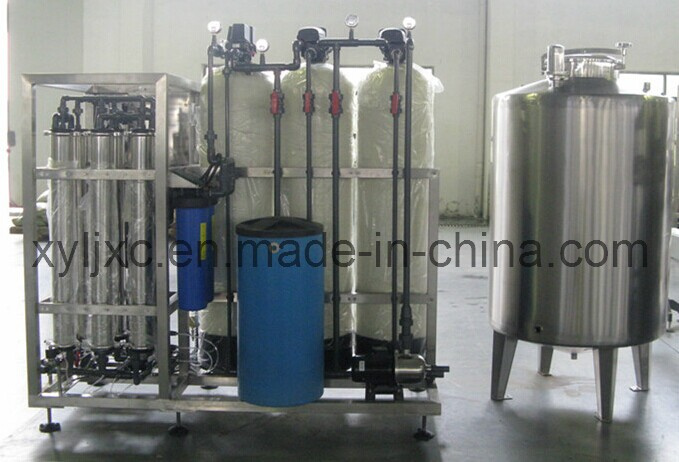

This is the NF system for producing drinking. The producing capacity is 250L/H. The water supply is tap water, mineral water, ground water. The water is first being removed the suspended matter, micelle and other impurity by the quartz sand filter. Then it is being got rid of the organic substance, chlorine, chromo, odor and etc by the active carbon filter and softener filter. The above device composes the consummate pretreatment system. The water which is being pretreated reaches the requirement of the NF system. So as to make the NF equipment run stably during a long period.
The abio-salt, organic substance, bacteria, heat source and other impurity in the water have been removed after the water was being treated through NF system. The ratio of monovalent ion doffing is in the range of 40%-60% and the ratio of divalent ion doffing is in the range of 97%-99%. There are two modes of operation in the system: Auto and manual. The system runs automatically by adopting Water Sensor, and Pressure Sensor. The system can produce water automatically in the mode of auto. It is friendly used and safe.
Technical process
Raw water- Raw water tank- Raw water pump- Mechanical filter- Active carbon filter- Softener- Security filter- high pressure pump- NF membrane component- water production
Zhangjiagang city XY-LONG machinery Co., Ltd is a professional manufactory located in zhangjiagang city jinfeng town, we have more than 10years experiences on beverage machinery.
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry machine in China, especially model QGF series barreled production line.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 5000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 5000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 2000 TBH, for 3 gallon, 5 gallon.
All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine. Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Welcome to visit our company. Thank you!
