Drinking Water Purification Plant/Treatment Machine
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |

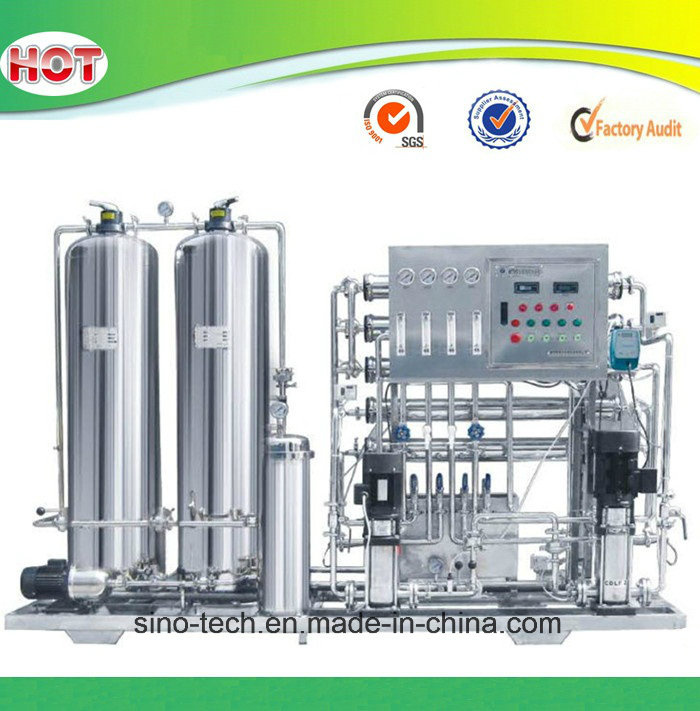

drinking water purification plant/treatment machine
working procee:
Raw water booster pump→quartz sand filter→activated carbon filter→water softener (optional)→security filter→high pressure pump→RO system→UV light(optional)→pure water tank(or bottled water filling production line)
Every part of the water treatment system:
S/N. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. |
2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |
3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | |
5 | Water softener, demineralizer, or called Na+ exchanger | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | |
6 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm, | |
7 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
8 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Filmtec Dow |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Drinking Water Treatment System |
Function: |
Pure Water Production |
Machine Material: |
SUS 316 |
Opptional Part: |
Water Softener/Ozone Generator |
Motive Force: |
Electric power |
Certification: |
GS |
Type: |
Reverse Osmosis |
Usage: |
Beverage Industry |
Zhangjiagang Sino-tech Machinery Co., Ltd. is a group company located in the beautiful seaport city of Zhangjiagang, which is near to Shanghai. We devote ourselves to the development, research and production of plastic machine, beverage equipments filling and packing industry and automatic blow molding machine with over 20 years'experience.
Now our equipments have been exported to USA, Canada, Mexico, Colombia, Brazil, Argentina, UK, France, Germany, Belgium, Russia, Saudi Arabia, UAE, Yemen, Iran, Oman, Syria, Jordan, Israel, Egypt, Japan, Philippines, Myanmar, and India etc...
For plastic machine: , Our main products include as follow
Big-mouth PVC pipe excluding production line
PE big-mouth for gas, water supply excluding production line
Plastic sheet or panel production lin
Plastic profile production line
Plastic granulating production line
Plastic recycling machine
PP-R pipe production line
Plastics extruder
High speed mixer, various plastic auxiliary machines
For beverage machine, our Main products include as follow
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 2000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 1200BBH 3 gallon, 5 gallon barrel filling line
The capacity of 1000 -- 12000BBH glass bottle beer filling line
The capacity of 2000 -- 25000BH ice pop, ice lolly filling production line
Various kinds of linear and rotary engine oil and edible oil filling line
All kinds of water treatment equipment.
PET perform injection and blowing-stretching machine.
Extrusion blow molding machine
Turn-key projects
Flat and tube UHT device, and CIP system.
SINO-TECH purpose is "keep developing to meet worldwide clients' demands. "
Welcome to visit our company. Thank you!
