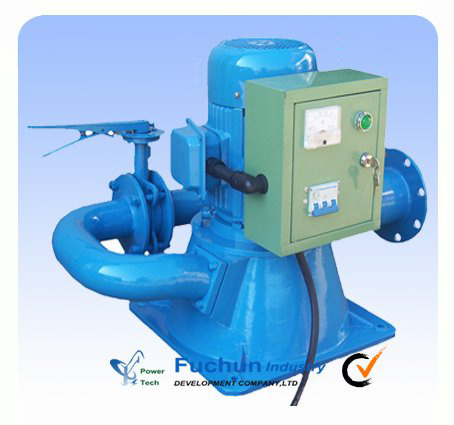

Double Nozzles Turgo Turbine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1 /Piece |
| Pay Type: |
L/C,T/T |
The runner of double nozzles turgo turbine includes out ring, inner ring and buckets.The two nozzles suit to capacity from 200W to 30KW.
The turbine unit is equipped with small control box and load controller system.
Which can guarantee the safety operation of stand alone system.
|
No. |
Generator Model |
Fall |
Flow |
Permanent magnet alternator |
Speed |
Pipe diameter of assembly |
Remarks |
|
(m) |
L/S |
(W) |
(r/min) |
(mm) |
|
1 |
XJ14-0.3DCT4-Z |
12-14 |
3--5 |
300 |
1500 |
50 |
single-nozzle set |
|
2 |
XJ18-0.5DCT4-Z |
12-18 |
5--7 |
500 |
1500 |
50-75 |
single-nozzle set |
|
3 |
XJ18-0.75DCT4-Z |
14-18 |
5--8 |
750 |
1500 |
75 |
single-nozzle set |
|
4 |
XJ25-1.5DCT4-Z |
18-25 |
8--11 |
1500 |
1500 |
125 |
single-nozzle set |
|
5 |
XJ25-1.5DCTH4-Z |
15 |
12--18 |
1500 |
1500 |
125-150 |
double-nozzles set |
|
6 |
XJ25-3.0DCT4-Z |
25-35 |
15--19 |
3000 |
1500 |
125-150 |
single-nozzle set |
|
7 |
XJ25-3.0DCTF4-Z |
18-20 |
18--30 |
3000 |
1500 |
150 |
double-nozzles set |
|
8 |
XJ28-6.0DCT4/6-Z |
28-35 |
30--38 |
6000 |
1500 |
150-200 |
single-nozzle set |
|
9 |
XJ28-6.0DCTF4/6-Z |
18-20 |
38--50 |
6000 |
1000 |
200 |
double-nozzles set |
|
10 |
XJ30-10DCT4-Z |
30-38 |
40--50 |
10000 |
1500 |
200-250 |
single-nozzle set |
|
11 |
XJ30-10DCTF4/6-Z |
25-30 |
50--60 |
10000 |
1000 |
200-250 |
double-nozzles set |
|
12 |
XJ30-12SCTF4-Z |
28-35 |
50--60 |
12000 |
1500 |
200-250 |
double-nozzles set |
|
13 |
XJ30-15SCTF4/6-Z |
30-40 |
60--70 |
15000 |
1500 /1000 |
200 |
double-nozzles set |
|
14 |
XJ30-20SCTF4/6-Z |
30-45 |
60--100 |
20000 |
1500 /1000 |
250-300 |
double-nozzles set |
|
15 |
XJ38-30SCTF4/6-Z |
38-45 |
90--120 |
30000 |
1500 /1000 |
250-300 |
double-nozzles set |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
