Development of urbanization with more energy consumption has brought about some negative impacts on human health. Pollution caused by automobile exhaust and industrial gases lead to higher incidence for respiratory diseases which usually occur on the trachea, bronchi, lungs or the chest. Patients suffering from respiratory diseases may feel difficult to breathe and are incapable to ingest enough oxygen. Some may even die from organ failure.
A high quality medical oxygen concentrator will be greatly helpful for the adjuvant therapy for patients with respiratory diseases. Our company can produce various types of medical oxygen concentrating machines suitable for different patients.
Features
1. Our medical oxygen concentrator can output oxygen with concentration higher than 90% and it makes noise lower than 50dB while working.
2. Designed with reasonable structure, the machine components are wear-resistant and durable.
3. Our oxygen gas generator will help relieve your disease symptoms and balance the vital energy and blood in your body.

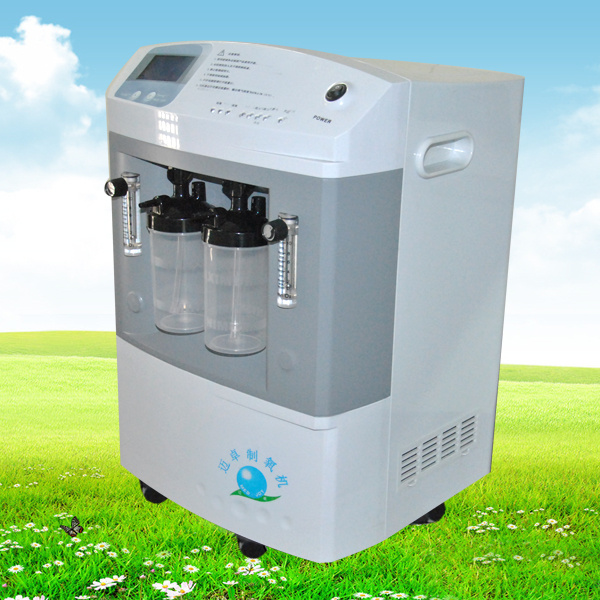

4. We have medical oxygen concentrators in various models such as the JAY-5/5Q, JAY-8 and the JAY-10. All our products are up to the standard of ISO9001. You can select a proper one according to your practical need.
Technical Parameters of Oxygen Concentrators for Medical Use
| Model | JAY-10 | JAY-8 | JAY-5 | JAY-5Q |
| Flow rate | 0-10L/min | 0-8L/min | 0-5L/min | 0-5L/min |
| Oxygen concentration | 1-9L/min, 93% (±3%)10L/min: 90% (±2%) | 93% (±3%) |
| Outlet pressure | 0.04-0.07Mpa |
| Noise level | ≤50dB | ≤50dB | ≤50dB | 40 db |
| Power | AC220V(±10%), 50/60Hz (±1Hz); AC110V (±10%), 50/60Hz (±1Hz) |
| Power consumption | ≤ 550W | ≤480W | ≤ 350W |
| LCD display | Starting times, operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours |
| Alarm | Power failure alarm, high/low pressure alarm |
| Net weight | 28kg | 27kg | 25kg | 16 kgs |
| Size | 365×375×600mm | 320×360×600mm |
Optional
1. Nebulizer (Atomizer)
2. Low concentration alarm: when oxygen concentration is 82% or above, the blue light will be on; when the oxygen concentration is blow 82%, the red light will be on.
3. Maintenance alarm: alarm for maintenance after 3000 hours' operation.
4. High temperature alarm: alarm for high temperature when the internal system temperature is above 50 ºC.
5. Pulse oximeter: fingertip pulse oximeter is available for monitoring patient's oxygen saturation on site.
6. Small LCD display: showing accumulated time, present working time and preset time.
7. Dual flow configuration
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
