1. International Warranty Service
2. Short delivery time
3. With ISO9001&CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator, Marathon alternator or Chinese Aladdin alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load,75% load,100% load and 110% load
9. Both water cooled engine and air cooled engine for option

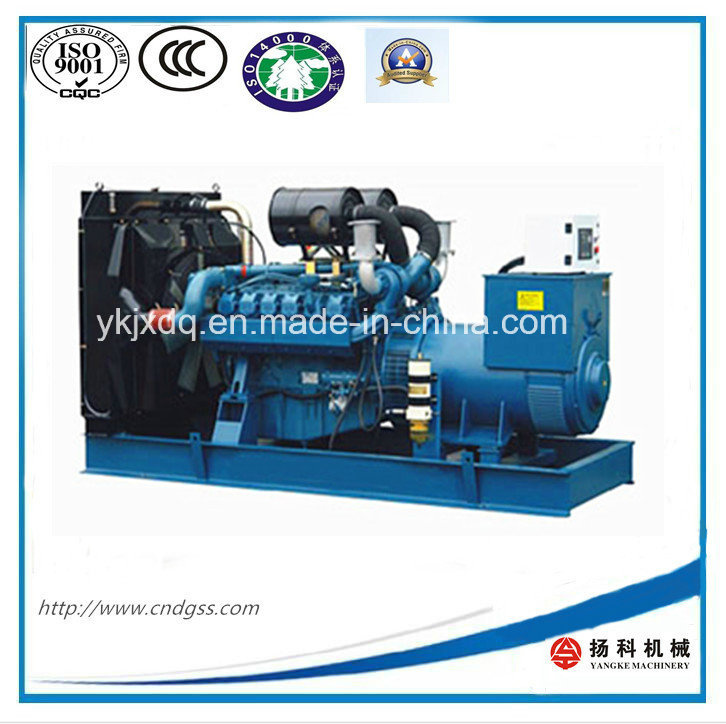

60KVADoosan Diesel Generator Set Main Technical Data 3-PH, 50Hz@1500RPM,400/230V(Could Be Made According To Customers 'Special Requirements)
| Diesel Generator Set Model | QSDS175 |
| Engine Model | DOOSANDP086T1-1 |
| Alternator | UCI274G |
| Standby power | 190KVA |
| Prime Power | 175KVA |
| Engine Cylinder | 6 |
| Speed of control | Electric |
| Aspiration | Turbo charged &inter-cooled |
| Cons.100%(L/H) | 40.8 |
| Db(A)@7m | 70(Silent type) |
| Tank | 490L |
Engine of 60KVADoosan Diesel Generator Set
| Engine Model: | DOOSAN DP086T1-1 |
| Number of Cylinders | 6 |
| Cylinder arrangement: | Vertical in-line |
| Cycle | Four stroke |
| Aspiration | Natural Aspiration |
| Bore ×Stroke (mm*mm) | 111×139 |
| Displacement(Liter) | 8.071 |
| Compression Ratio | 16.4/1 |
| Prime Power/Speed(KW/rpm) | 164/1500RPM |
| Standby Power/Speed(KW/rpm): | 149/1500RPM |
| Speed Governor | Electric |
| Cooling System | Water-cooled,50ºC |
| Radiator As Standard Speed Stability(%): | ≤5% |
| Total lubrication system capacity(L) | 15.5 |
| Coolant capacity(without radiator) (L) | 14 |
| FuelConsumptionat100%Load(L/kWh) | 213at1500RPM |
| Starter Motor | DC12V |
| Alternator | AC12V |
Alternator of60KVADoosan Diesel Generator Set
| Alternator Model | UCI274G |
| Phase/Connect | 3-phase4-wire,Ytypeconnection |
| Excitation Model | Self-excite, automatic, voltage regulation |
| Power Factor | 0.8 |
| The regulating rate of instantaneous voltage | -15%~+20% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤1.0% |
| The regulating rate of steady frequency | ≤5% |
| Regulating rate of instantaneous frequency | ≤±10% |
| The time of steady frequency | 3sec |
| The waving rate of frequency | ≤1% |
GENERAL DATA
Engine: ISO 3046, BS5514 DIN 6271 Alternator: UTE NFC 51-111-105-110 ICE34-1. BS 5000-4999 NEMAMG21.VDE0503 Generator Set: ISO8528
Generator Ratings
| Voltage | Hz | Phase | PF | Standby Amps | Standby Ratings(kw/kva) | Ratings |
| 400/230 | 50 | 3 | 0.8 | 277 | 154/192 | 140/175 |
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
