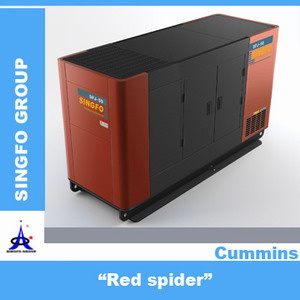

Dongfeng Cummins Diesel Generator 200kVA
Engine model: 6CTAA8.3-G2
In-line, 6 Cylinder, 4 Cycle, Air-Air Cooling Turbo Diesel Engine
Bore*Stroke: 114mm*135mm
Displacement: 8.3 Liters
Compression Ration: 16.0: 1
Rated Speed: 1500r/min(1800r/min)
Rated Power: 183kW(200kW)
Standby Power: 203kW(220kW)
Fuel Injection Pump: P7100 Injection Pump
Governor: Electrical Governor
Steady Speed Droop: ≤ 1% Lubricant Capacity 24 Liters
Coolant Capacity: 12.3 Liters
Net Weight: 636kg
Wet Weight: 666kg
Overall Dimension(L*W*H): 1128mm*740mm*1084mm
Coolant Intake Size: Φ 50mm
Coolant Outlet Size: Φ 57mm
Flywheel/Flywheel Housing: SAE2#/SAE2#
Cooling Way: Positive Water Cooling Cycle
Technical Datasheet
Speed: 1500r/min(50Hz); 1800r/min(50Hz)
Output Power: Engine Output; Engine Output
Standby Power: 203kW; 220kW
Prime Power: 183kW; 200kW
Test Condition
Standard Air Intake Temperature
Air Intake Pressure: 100kPa
Standard Light Diesel: 0# Light Diesel
Fuel Intake Temperature
Air Intake Restriction: 251mmHg
Exhaust Back Pressure: 76mmHg
Lubricant Oil: 15W40-CF4 Upgrade
Genset model: SFCJ 180KW
Dimension: 3250*1200*1600 mm
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
