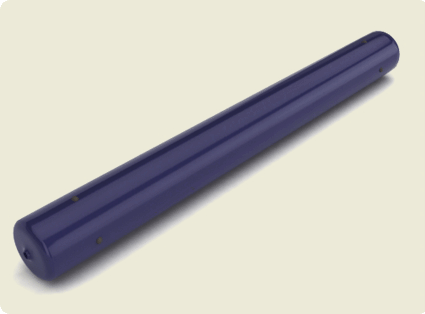

Discharge ozone tube is a kind of a high voltage electrode with enamel coating. It is the patent product of our company. We have made the discharge tubes for more than 15 years. It is made by imported enamel, the ceramic compound materials and the metal. It renamed "the titanium gold tube" by some ozone companies because it contains titanium oxide. It can display the function of electrical power system and the cooling system by the greatest degree.
1. Due to the combination of high voltage electrode and the medium, this dielectric can be installed and maintained conveniently.
2. Mechanical strength and thermal shock intensity are much better.
3. Dielectric loss of this dielectric is less and dielectric property is much better.
4. Low discharge voltage can reduce the load impact.
The layers from inside to outside: Rough-body; Adhesive layer; Dielectric layer; Insulating protective layer.
You can check the following information about it, and let us know your requirement.
Discharge tubes for Ozone generator:
According to your requirements, we can supply you different type of discharge tubes for Ozone generator, such as 0.6-0.9mm thickness can be changed.
Different size from Φ 5 X 55mm to Φ 60 X 750mm.
We have good quality control before shipment, in order to check all of the tubes working well.
With different working condition, work voltage can be from 4kv to 15kv( 4-5kv recommed)
Broken voltage is higher than 15kv.
We sell more than 10, 000 sets every year in the world.
According to your requirements, we can supply you different type of discharge tubes for Ozone generator.
We sell more than 10, 000 sets one year in the world.
