Digital Temperature Controller Humidifier Powered Electric Steam Generator

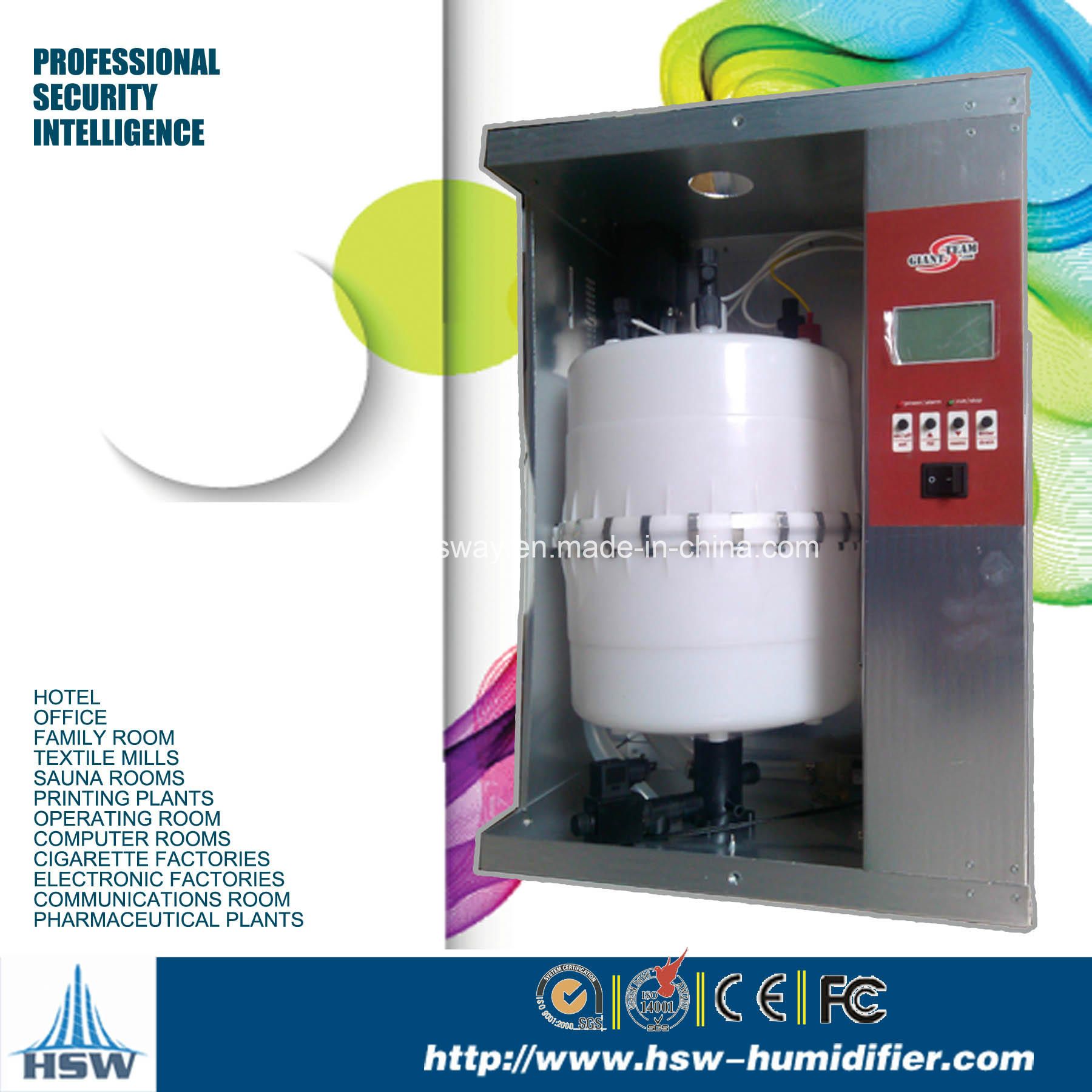

Product Descripti This is brand new commercial electrode steam humidifier, not for resident application. All units are 3-phase AC, 110V, 230V, 380V, 440, 580V are available. It uses tap water, don't need any water pre-treatment system. It has a micro-processing controller, which ensures a reliable and accurate operation. Possible for on/off control and proportional control, 0-10V, 4-20mA, 0-1V, 0-5V, 2-10V, 0-20mA signals are accepted. It is easy to install, just follow the installation, operation and maintainance manual. Working Principle Humidifier is composed of cylinder,water inlet valve,drain valve or drain pump,the control circuit board and enclosures. When the water inlet valve opens,water enters into the cylinder.As the water level rises,the energized electrodes are submerged in the water,electrical current produces among electrodes thanks to the water conductivity,and water temperature increases until boiling to generate sterile steam. Specifications Industrial storage Humidifier Professionla manufacturer With high quality product RIch experience Stand Alone Type Humidifier This free-stand humidifier evaporating and blowing out steams in fully sterilized condition from cylinder where electric power supply completely boils water has adopted mi-COM controlling system to enable optimum operation matching with humidity demand for each space being coupled with humidity sensor. As with the characteristics of electrode type, no specific security device is necessary and its operation can be done separately. Features Easy and convenient manipulation of display Controller's display includes menu selection, compelled drainage, setting, operation, alarming breaker and etc, and can be operated easily by any user. Precise controlling Controlling in use of Micro Processor performs the role so precisely to humidifier's maximum efficiency, and also is saving energy. Drainage pump mounted Drainage pump mounted prevents foreign materials' piling-up inside the cylinder, and free drainage can be done wherever the cylinder is positioned. Security and reliability Security-and-reliability based design has passed through the stringent security standard of Europe to obtain CE mark. Auto washing Automatic washing system prevents accumulation of foreign matters inside the cylinder that may be caused by long time operation, and clean conditions can be maintained. Cylinder structured for easy mounting/demounting Cylinder has the structure that can be dismantled, and thus there is little trouble with its cleaning which allows its durability extended. Tecnical parameters Model Unit 004 008 015 023 32 045 065 090 130 Capacity ranging Kg/h 4 8 15 23 32 45 65 90 130 Power Supply V 3Phase 380V 380-440 Available 50/60Hz Phase Current A 4.4 8.8 16.5 25.3 35.2 49.5 71.5 99.0 143 Power KW 3 6 11.5 17.5 24.3 34.2 48.8 68.5 97.5 Controller of Power Supply V 1Phase 220V 220-240 Available 50/60Hz Humidifying Bucket Quantity Piece 1 1 1 1 1 1 1 2 2 Humidifying Bucket Model C4 C8 C15 C23 C32 C45 C65 C45X2 C65X2 Steam Nozzle Type D22-300 D22-450 D32-450 D32-600 D32-600 D32-600 D32-600 D32-600 D32-600 Nozzle Quantity Piece 1 1 1 1 1 2 2 4 4 Case Size Wide/mm 360 360 430 430 530 530 530 890 890 Thick/mm 240 240 300 300 365 365 365 365 365 High/mm 560 560 650 650 720 720 720 720 720 the height with Fan High/mm 770 770 910 910 No-Load weight Kg 8.8 9.3 13.0 14.0 16.0 17.0 20.0 33.0 39 Operating Weight Kg 12.5 13.2 26 27 39 41 44.5 82 88 Steam outlet Diameter mm 22 22 32 32 32 32 32 32 32 Water inlet Diameter 3/4' External Thread Drain outlet Diameter mm 32mm This humidifier generates sterile steam to humidifying a commercial application. Its intelligent control system ensures the fully automatic operation. The multiple fault self-checking system ensures the safe and reliable operation. Humidification efficiency is more than 95%, low maiantannace. Use tap water, don't need water pre-treatment system. Leading technology The world's only electrode humidifier that 32-bit low-power micro-processing chip; The world's only electrode humidifier controller that uses neural networks and artificial intellingence algorithms; The world only electrode humidifier that supports WIFI communications for monitoring and controlling networks; The world's only built-in micro-chip in cylinder for intelligent cylinder working process control; The world's only electrode humidifier who has high-grade electric leakage protection function; The world's only super-cleaning functioned electrode humidifier; The world's only compatible with drain valve and drain pump electrode  humidifier
